REF600M
REF600M Monoblock Amplifier
The REF600M monoblock provides serious power, delivering the pure treble of Class A, the slam of the best Class D architectures, and the mid band presence that brings your music to life.
- Max Power Output: 600W 4 ohms, 300W 8 ohms per channel
- Peak Output Current: 27 Amps
- Balanced Input Impedance: 200 Kohms
- Selectable gain option: 27dB or 33dB
- Power Trigger
The Bel Canto Impedance Optimized Input Stage is a balanced high Common Mode Rejection, low output impedance driver that is critical to the amplifier's performance, ensuring that the refined dynamic qualities of the recording are preserved.

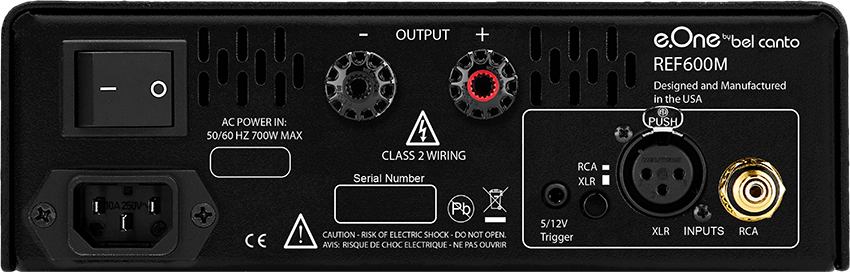

WBT NextGen Speaker Connectors
The WBT NextGen connectors provide the best possible connection from the amplifier to the speaker cables. We choose them because they impart minimal sonic signature to the sound, remaining open and grain-free up throughout the audio frequency band.
Specifications
|
Power Output 1% THD |
600W 4 ohms, 300W 8 ohms |
|
Minimum Load |
2 ohms |
|
Peak Output Current |
27 amperes |
|
Frequency Response |
+/-3 dB 0Hz-50KHz, all loads |
|
THD+N |
0.003% 1W, 1KHz, 4 ohms |
|
IMD (CCIF) |
0.0003%, 1W, 14:15KHz, 4 ohms |
|
Output noise |
35uVRMS A-weighted 10Hz-20KHz |
|
Voltage gain |
27dB (internal switch select for 33dB) |
|
Damping factor |
>1000 |
|
Output Impedance at 100Hz |
<8 milliohms |
|
Dynamic Range |
121dB |
|
Input Voltage for Max Output |
2.3Vrms at 27dB gain |
|
Input connections |
Single-ended RCA or balanced XLR |
|
RCA input impedance |
100Kohms |
|
Balanced input impedance |
200Kohms |
|
Output connections |
1-set WBT Nextgen 5-way binding posts |
|
Power On usage |
22W |
|
Power Off usage |
0.0W |
|
Internally Set Operating Voltages |
100-120VAC or 230-240VAC 50/60 Hz |
|
Size |
8.5 x 3.5 x 12[inches], 216 x 88 x 305[mm] (WxHxD) |
|
Weight |
15 lbs, 7 Kg |
