8" In-Ceiling Loudspeaker Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.

Read More

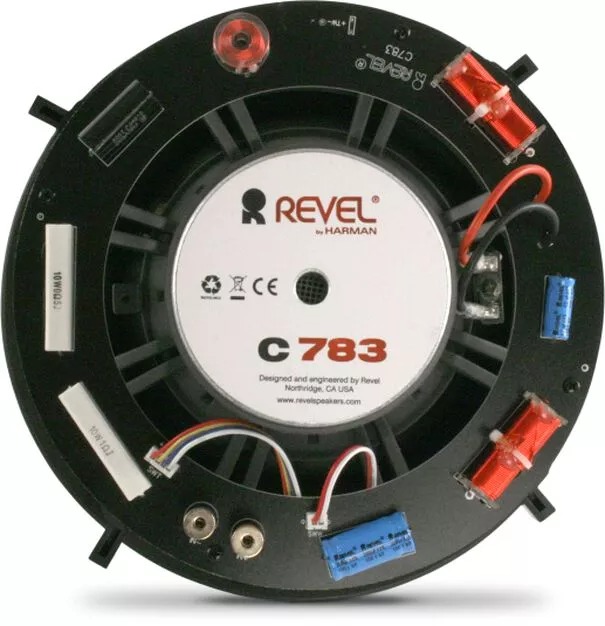

C783

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.



C783 Highlights

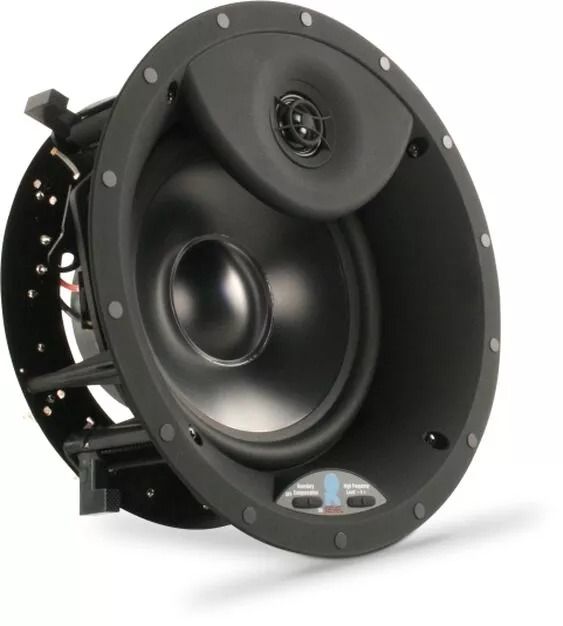

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles



Specification

Height Cutout dimensions (dia.) 9.6" (24.4 cm) Square grille finished Height 10.7" (27.2 cm)
Width Square grille finished Width 10.7" (27.2 cm)
Depth Mounting depth 5.2" (13.2 cm)
Weight Weight 3.1 lb (1.4 kg) / Shipping weight 4.1 lb (1.9 kg)

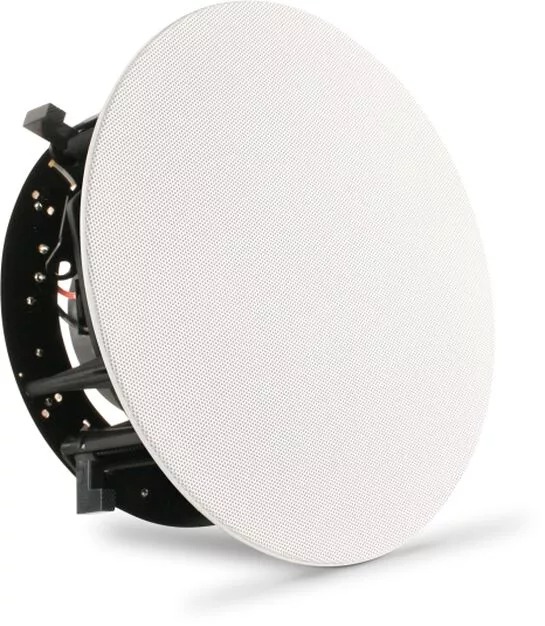

Features Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7" (27.2 cm)
High Frequency Driver Components 1" aluminum dome swiveling high-output tweeter with waveguide
Low Frequency Extension High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation
Low Frequency Driver Components 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
Mounting C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
Recommended Amplifier Power 10 - 150 Watts RMS
