6-1/2" Dual-Tweeter In-ceiling Loudspeaker Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
C363DT
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
C363DT Highlights
-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
-
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
-

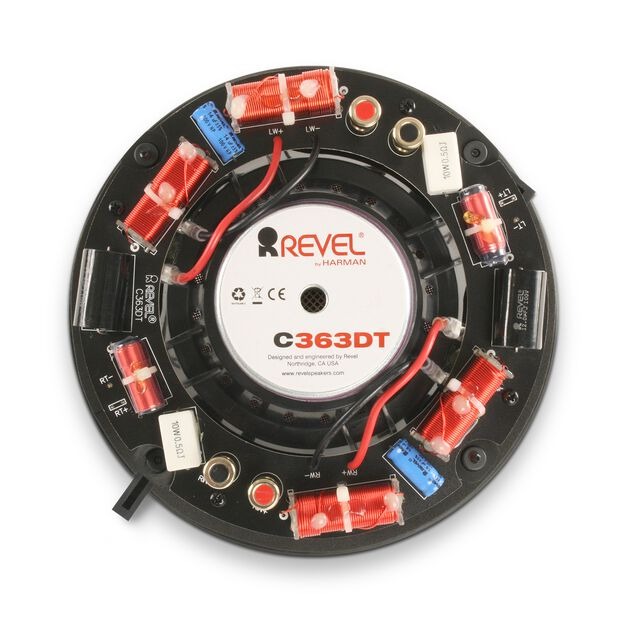

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
-
Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall.
-
Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
Specification
| Height | Cutout dimensions (dia) 8" (20.3 cm) Square grille finished height 9.1" (23.1 cm) |
| Width | Square grille finished height 9.1" (23.1 cm) |
| Depth | Mounting depth 4.8" (12.2 cm) |
| Weight | 1.9 lb (0.9 kg) / Shipping Weight 2.6 lb (1.2 kg) |

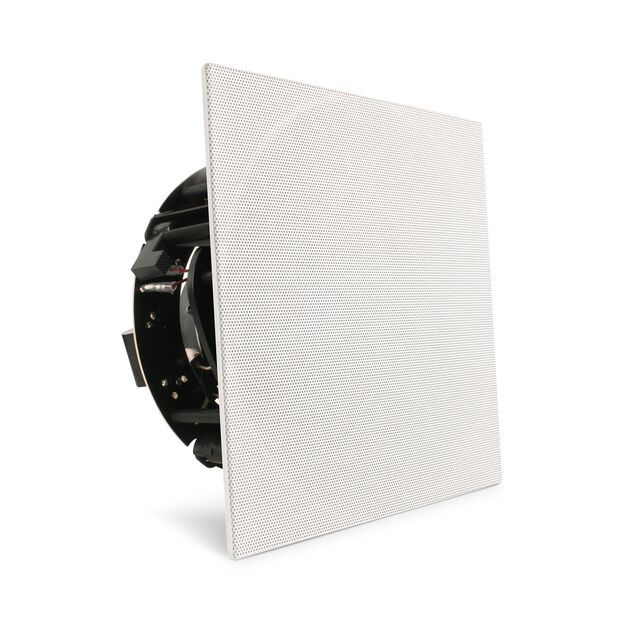

| Features | Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 9.1" (23.1 cm) |
| High-frequency Driver Components | Two 1" aluminum dome tweeters with waveguides |
| Low-frequency Driver Components | 6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-polymer Frame Woofer |
| Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm) |
| Recommended Amplifier Power | 10 - 120 Watts RMS (per channel) |
