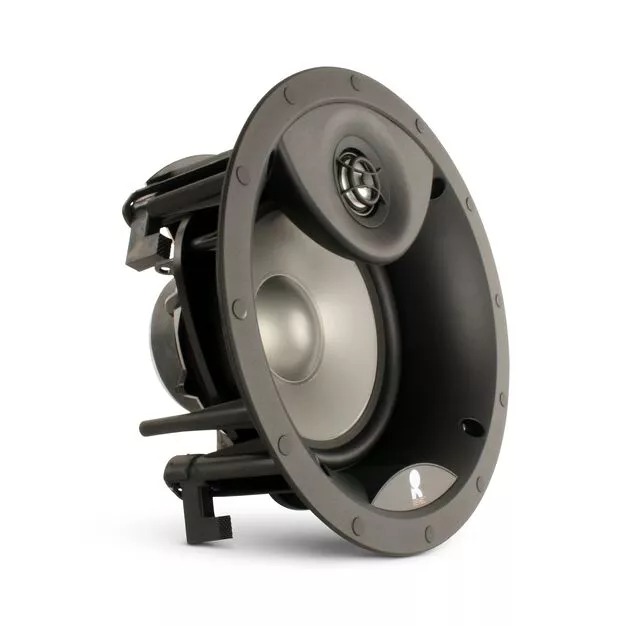

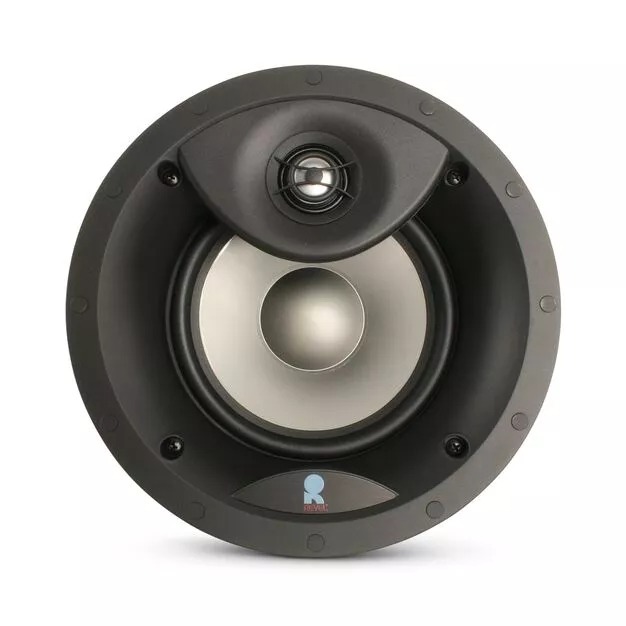

6 ½" In-Ceiling Loudspeaker Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.

Read More

Đại lý bán Mua ngay

C363

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.



C363 Highlights

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.

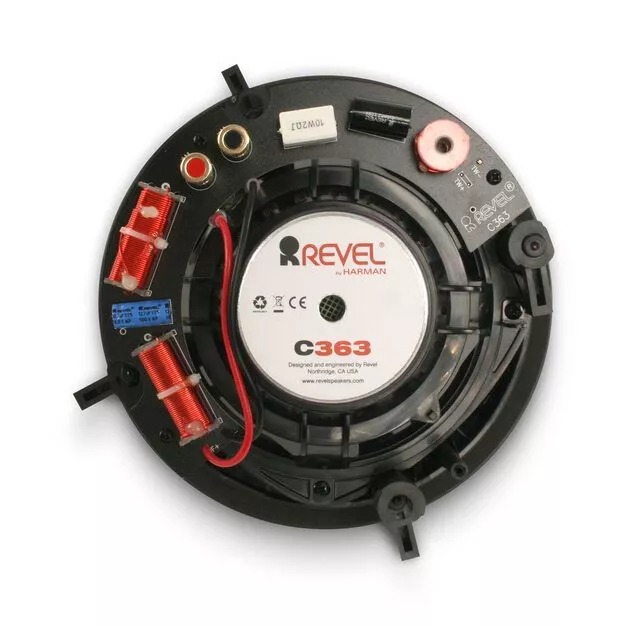

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
  • Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall.
  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.

Specification

Height:Cutout dimensions (dia.) 8" (20.3 cm) • Square grille finished Height 9.1" (23.1 cm)
Width Square grille finished width 9.1" (23.1 cm)
Depth Mounting depth 4.8" (12.2 cm)
Weight 1.6 lb (0.8 kg) / Shipping weight 2.4 lb (1.1 kg)

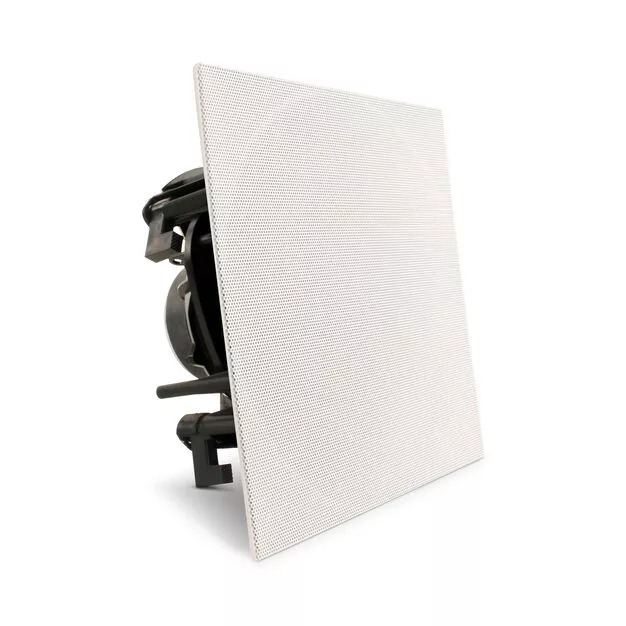

Features Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 9.1" (23.1 cm)
High-frequency Driver Components 1" aluminum dome swiveling tweeter with waveguide
Low-frequency Driver Components 6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer
Mounting C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
Recommended Amplifier Power 10 - 120 Watts RMS
