As the first five-channel amplifier from Mark Levinson, the No535H sets the bar high. Using a semimono-block design like the No 533H, the No535H can deliver 200W per channel into all five channels simultaneously. Twelve output transistors and large amounts of capacitance per channel ensure that this amplifier is more than capable of delivering realistic dynamics and transients with audiophile-grade detail and response for even the most demanding audio tracks.

Read More

Đại lý bán Mua ngay

No 535H

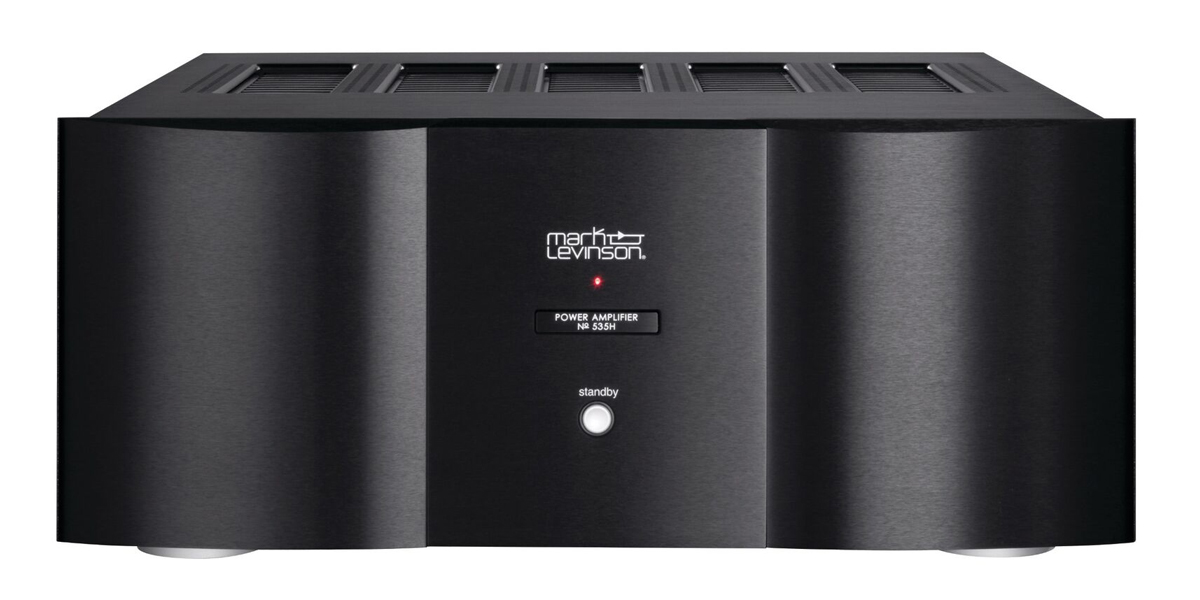

Mark Levinson Nº535H

As the first five-channel amplifier from Mark Levinson, the Nº535H sets the bar high. Using a semimono-block design like the Nº533H, the Nº535H can deliver 200W per channel into all five channels simultaneously. Twelve output transistors and large amounts of capacitance per channel ensure that this amplifier is more than capable of delivering realistic dynamics and transients with audiophile-grade detail and response for even the most demanding audio tracks.

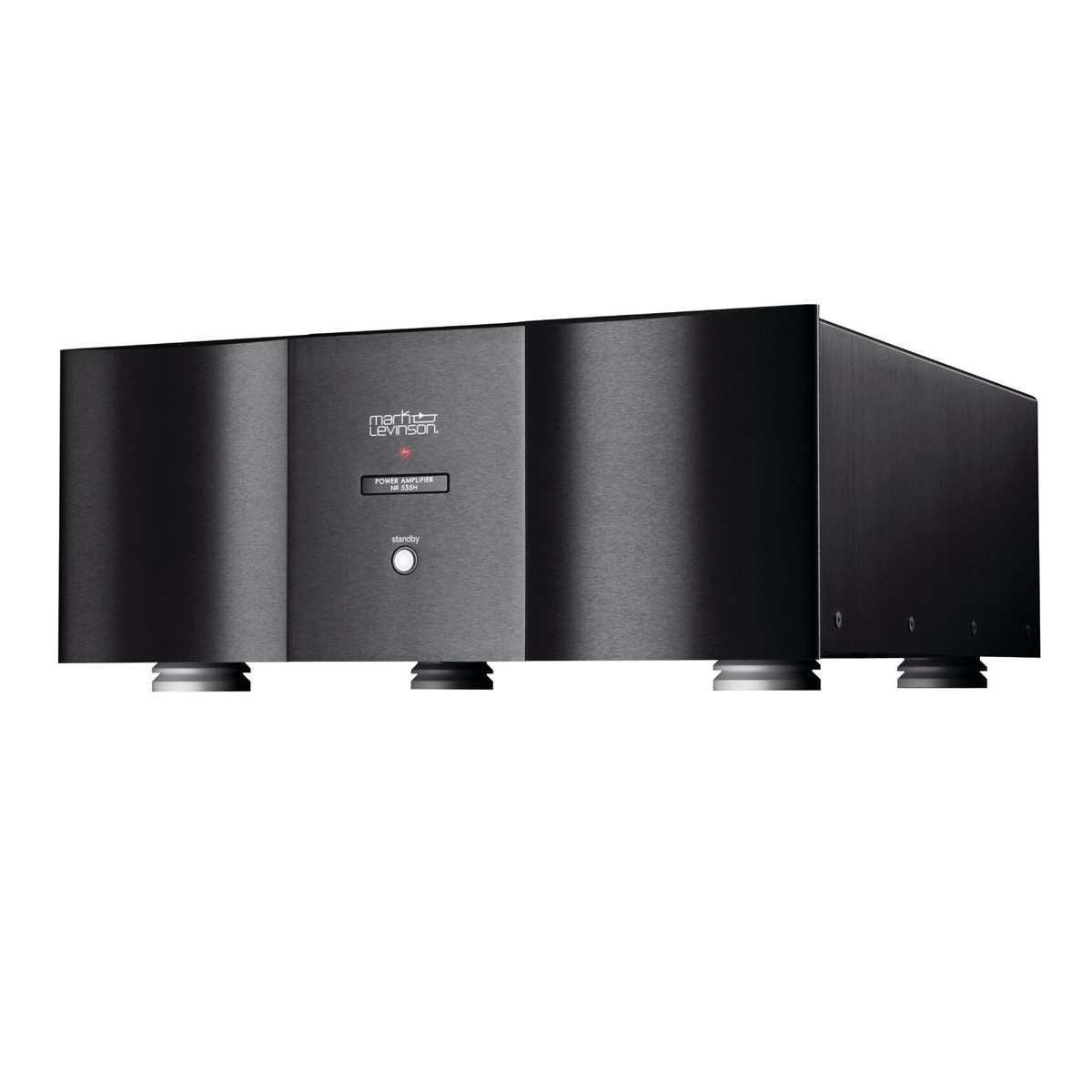

Mark Levinson Nº535H

The four amplifiers in the No500H Series are the definition of truly outstanding performance in their respective categories. Drawing from the Mark Levinson heritage, while utilizing a new, straightforward, balanced, current-feedback design creates a new series of amplifiers that must be listened to in order to be fully appreciated. The final result is impressive even for the Mark Levinson high standard of excellence.

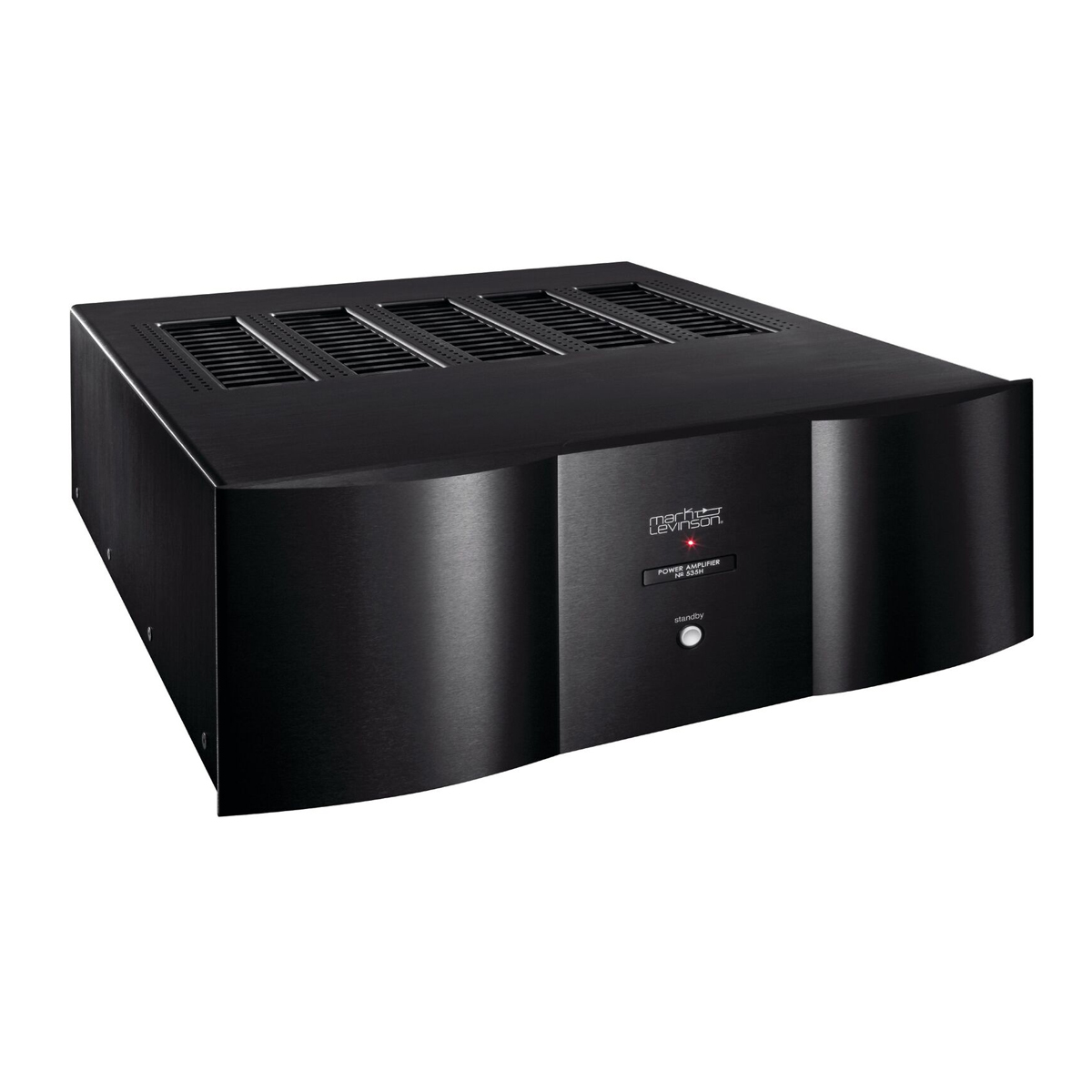

Mark Levinson Nº535H chính hãng

Nº535H Highlights

  • Reliable, high-power in four different channel configurations provide ideal solutions for any system
  • Ethernet and 12V trigger control capability for system integration
  • Isolated chassis and signal grounds minimize noise, optimizing detail, even at low listening levels
  • Fully-differential circuitry with both balanced XLR and single-ended RCA inputs




Specifications

Frequency Response Within 0.5dB from 10Hz to 20kHz
Input Impedance 60 kΩ (balanced); 30 kΩ (unbalanced)
Input Sensitivity 2.83Vrms output at 130mVrms input
Height (with feet) 7.65" (19.4cm); (without feet)
Width 17.75" (45.1cm)
Depth 19.83" (50.4cm)
Weight Net weight

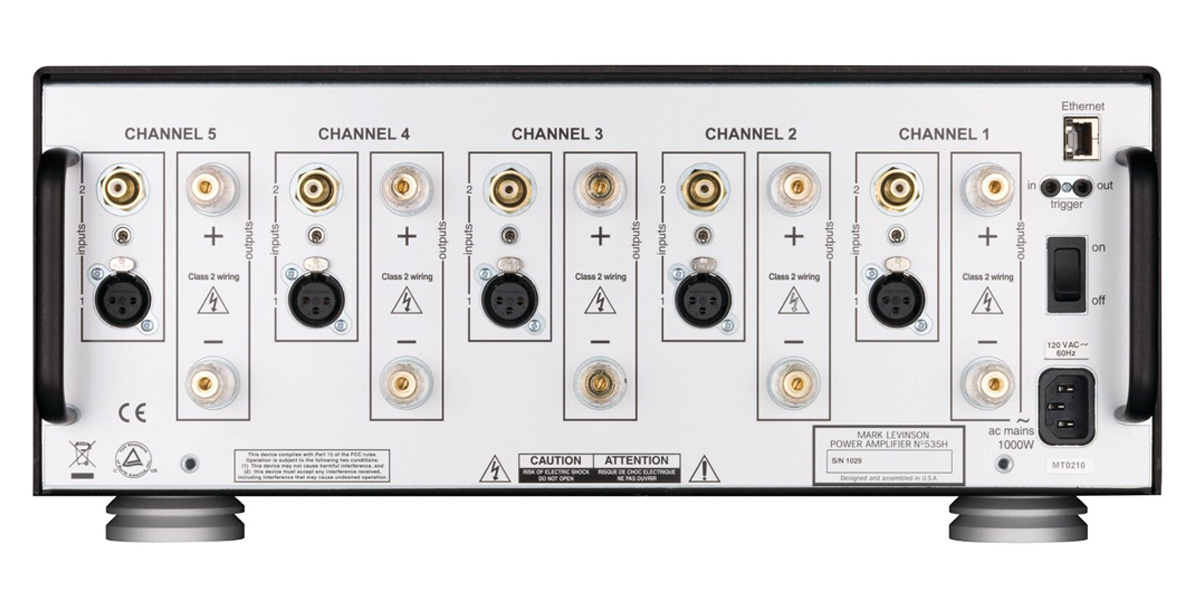

Communication and Control One Ethernet 10Base-T port; one 3.5mm mono (tip/sleeve) mini plug trigger input, 3-12Vdc; one 3.5mm mono (tip/sleeve) mini plug trigger output, 3-12Vdc; 3-pin IEC standard power connector
Inputs Five balanced XLR inputs; five unbalanced RCA inputs
Rated Output Power Into 8 Ohms 200W/ch (20Hz to 20kHz at
Signal-to-Noise Ratio >85dB, reference level
Gain 26.8dB
Power Requirements 100V~, 120V~, 230V~, factory set for destination country
Speaker Connections Five pairs loudspeaker outputs with banana-plug sockets (banana-plug socket not available on the 230 VAC models)
Audio Specifications
Frequency Response Within 0.5dB from 10Hz to 20kHz
Input Impedance 60 kΩ (balanced); 30 kΩ (unbalanced)
Input Sensitivity 2.83Vrms output at 130mVrms input
Height (with feet) 7.65" (19.4cm); (without feet)
Width 17.75" (45.1cm)
Depth 19.83" (50.4cm)
Weight Net weight
Communication and Control One Ethernet 10Base-T port; one 3.5mm mono (tip/sleeve) mini plug trigger input, 3-12Vdc; one 3.5mm mono (tip/sleeve) mini plug trigger output, 3-12Vdc; 3-pin IEC standard power connector
Inputs Five balanced XLR inputs; five unbalanced RCA inputs
Rated Output Power Into 8 Ohms 200W/ch (20Hz to 20kHz at
Signal-to-Noise Ratio >85dB, reference level
Gain 26.8dB
Power Requirements 100V~, 120V~, 230V~, factory set for destination country
Speaker Connections Five pairs loudspeaker outputs with banana-plug sockets (banana-plug socket not available on the 230 VAC models)
