All as close to perfection as possible. It’s what characterizes a top class preamplifier. The soulution 520 meets these challenges and more. With four line inputs and a high quality phono stage built in, the soulution 520 is perfectly equipped for all audiophile requirements.

Read More

520 preamplifier

Philosophy

A preamplifier should only amplify or attenuate the music signal, not change it in any way, while meeting the highest technical specifications. No distortion, no hum or noise, at the same time achieving the lowest cross talk and widest bandwidth. The soulution 520 preamplifier elegantly meets these demands and is a benign load for any source component.

Design

520 preamplifier

Unbalanced design ensures the fewest components in the signal path. Physical separation of the left and right channel provides optimal separation and cross talk performance. High quality relays switch between the inputs. Source signals are buffered directly at the input. For safety, an audio grade coupling capacitor protects the preamplifier as well as downstream amplifiers and loudspeakers from potential DC components in source signals.

Volume control

The 520’s volume control uses only high-precision, low-noise metal foil resistors, and it controls both the volume and balance. To block switching peaks during volume changes which may be hazardous to power amplifiers, the 520 is equipped with a second volume control with a PGA (Programmable Gain Amplifier). Active only during the volume control process, it is similar to a potentiometer and enables the volume to be adjusted in smooth, click-free steps. As soon as the new desired level value has been selected, the unit returns control to the precision resistors.

Output stage

Multi-stage, similar to that used in the reference 720 preamplifier, it achieves very fast, ultra wideband (1MHz/-3dB) amplification and is able to drive the longest interconnects with ease.

520 preamplifier

Phono-MC-Preamplifier

Similar to the 720, the phono preamplifier of the 520 is also multi-stage using the highest grade components.

Operation

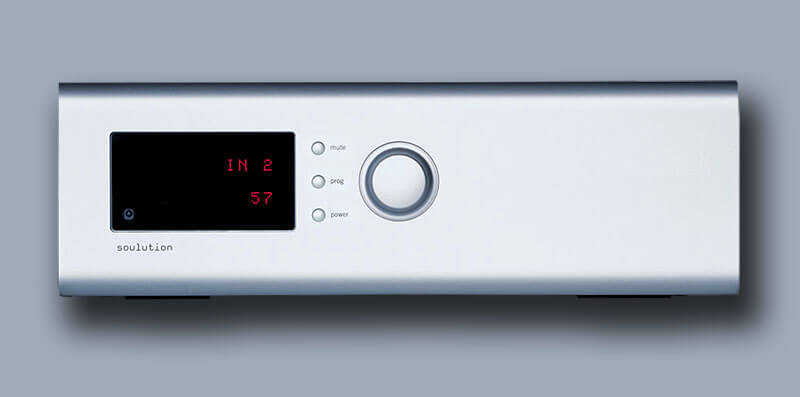

The 520 is operated via its front-panel buttons and rotary control. Multi-functional, these allow optimisation of the entire audio system, and an ideal set-up of the individual components.

Mains 220 – 240 V (50 – 60 Hz)
100 – 120 V (50 – 60 Hz)
Power consumption < 0.5 W standby
100 W device in operation

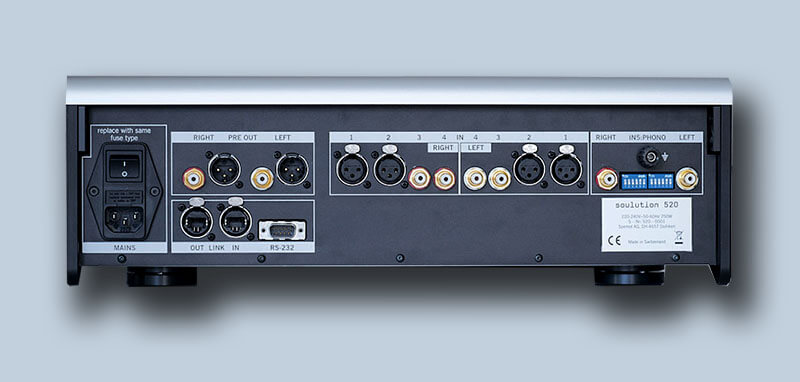

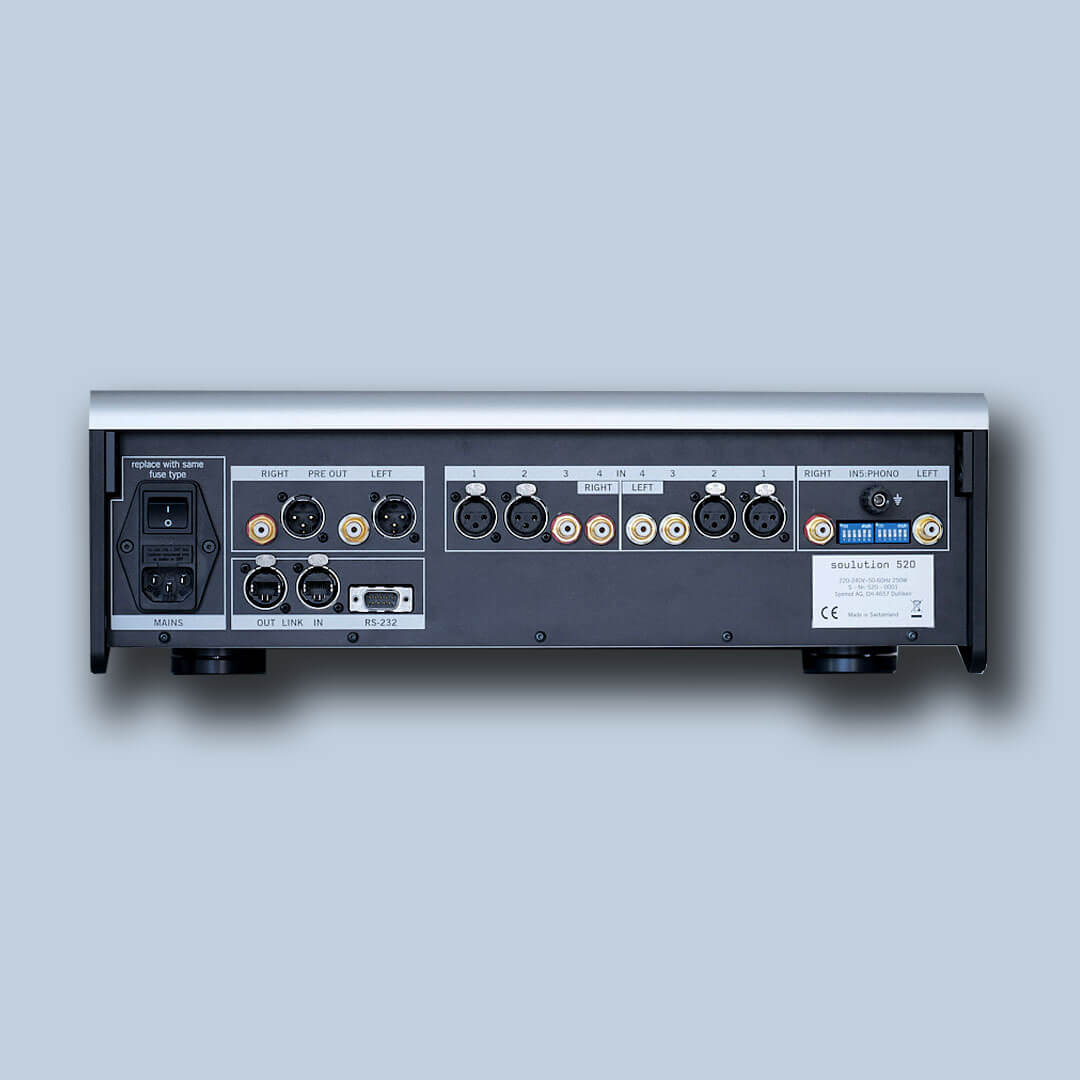

Inputs 2 × balanced (XLR)
2 × unbalanced (RCA
Input Impedance XLR:
RCA:
Phono:
3 kΩ
3 kΩ
adjustable
Outputs 1 × balanced (XLR)
1 × unbalanced (RCA)
Frequency response (– 3 dB) 0 – 500 kHz
THD + N < 0.001% (20 Hz – 20 kHz)
Signal-to-noise ration > 120 dB
Channel separation < 120 dB
Gain max balanced
unbalanced
– 83 … + 16 dB
– 89 … + 10 dB
Volume control range + 15 DB to – 79 dB in 1 dB steps
Output impedance 10 Ω balanced (XLR)
10 Ω unbalanced (RCA)
Output voltage 14 VRMS balanced (XLR)
7 VRMS unbalanced (RCA)
Output current max 0.2 A (limited)
Dimensions 442 × 143 × 448 mm
(W × H × D)
Weight approx. 18.5 kg
LINK (remote turn-on) 12 V control signal
