Concerta Series, In-Wall Loudspeaker Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves.

Read More

W563

Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves.

Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range..







W563 Highlights

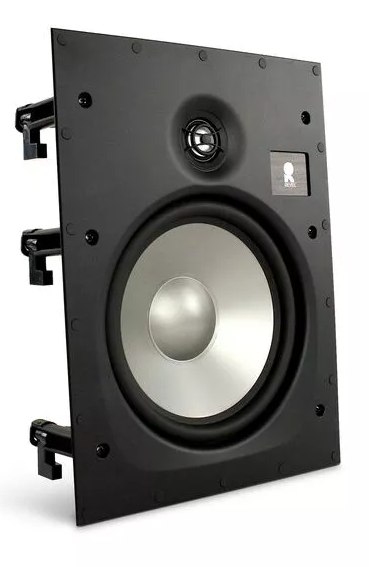

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis

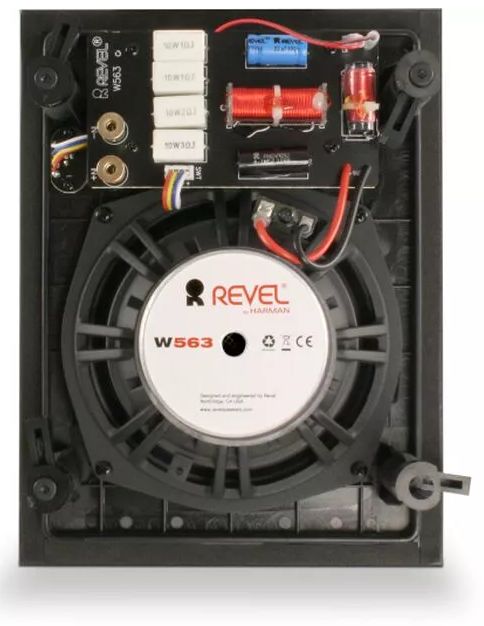

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling
  • Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles

Specifications

Depth Mounting depth 3.7" (9.4 cm)
Weight 4.4 lb (2 kg) / Shipping weight 5.5 lb (2.5 kg)

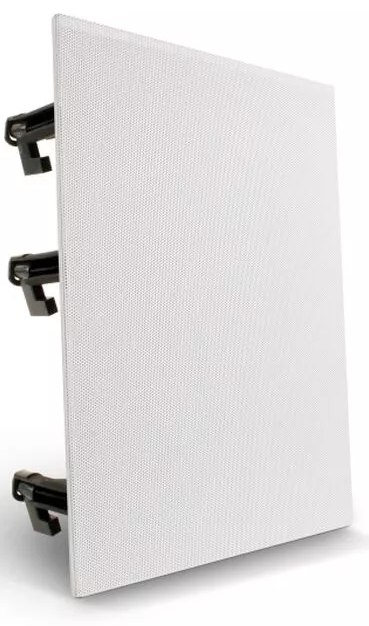

Features Cutout dimensions (H x W) 9.8" x 7.3" (24.9 cm x 18.5 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 10.8" x 8.3" (27.3 cm x 21.1 cm)
High Frequency Driver Components 1" aluminum dome swiveling tweeter with waveguide
Low Frequency Extension High Frequency Extension 3-position HF level control
Low Frequency Driver Components 6 ½" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer
Mounting Cutout dimensions (H x W) 9.8" x 7.3" (24.9 cm x 18.5 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 10.8" x 8.3" (27.3 cm x 21.1 cm)
Recommended Amplifier Power 10 - 130 Watts RMS
