The S16 is a true full range 2-way 6.5” on-wall loudspeaker that was designed to integrate the entire system’s sound into a spacious, enveloping surround-sound environment.

Read More

S16

Revel Concerta2 S16

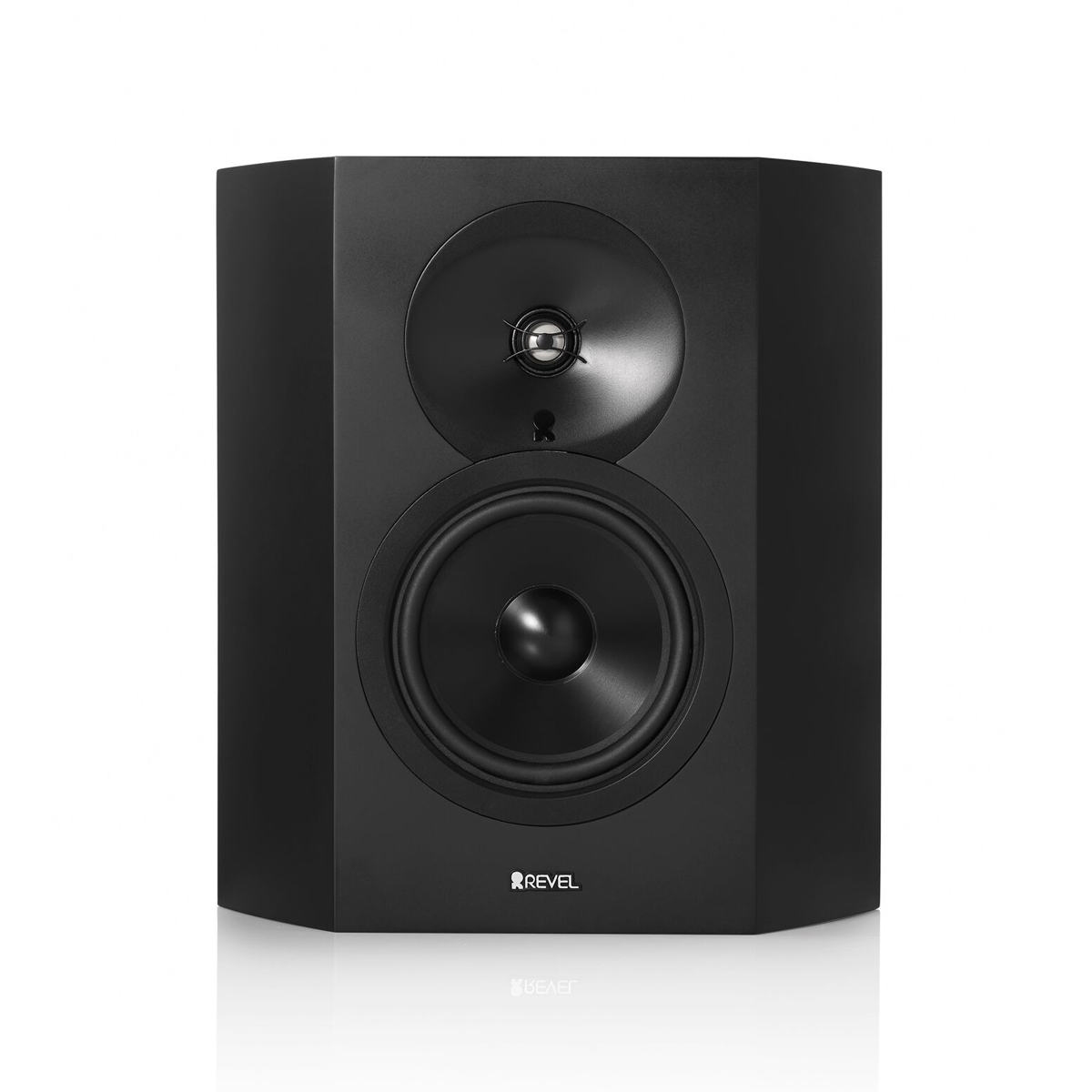

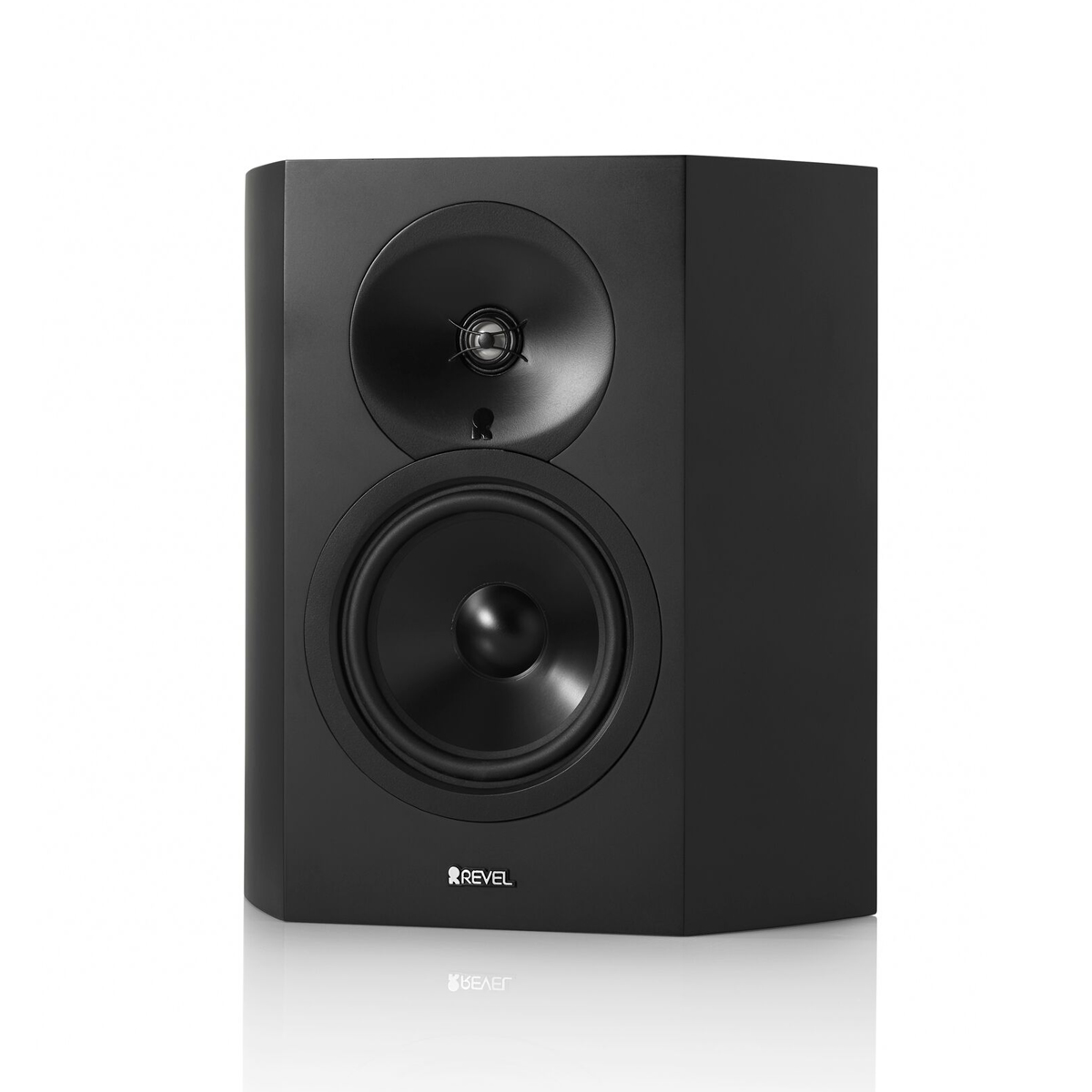

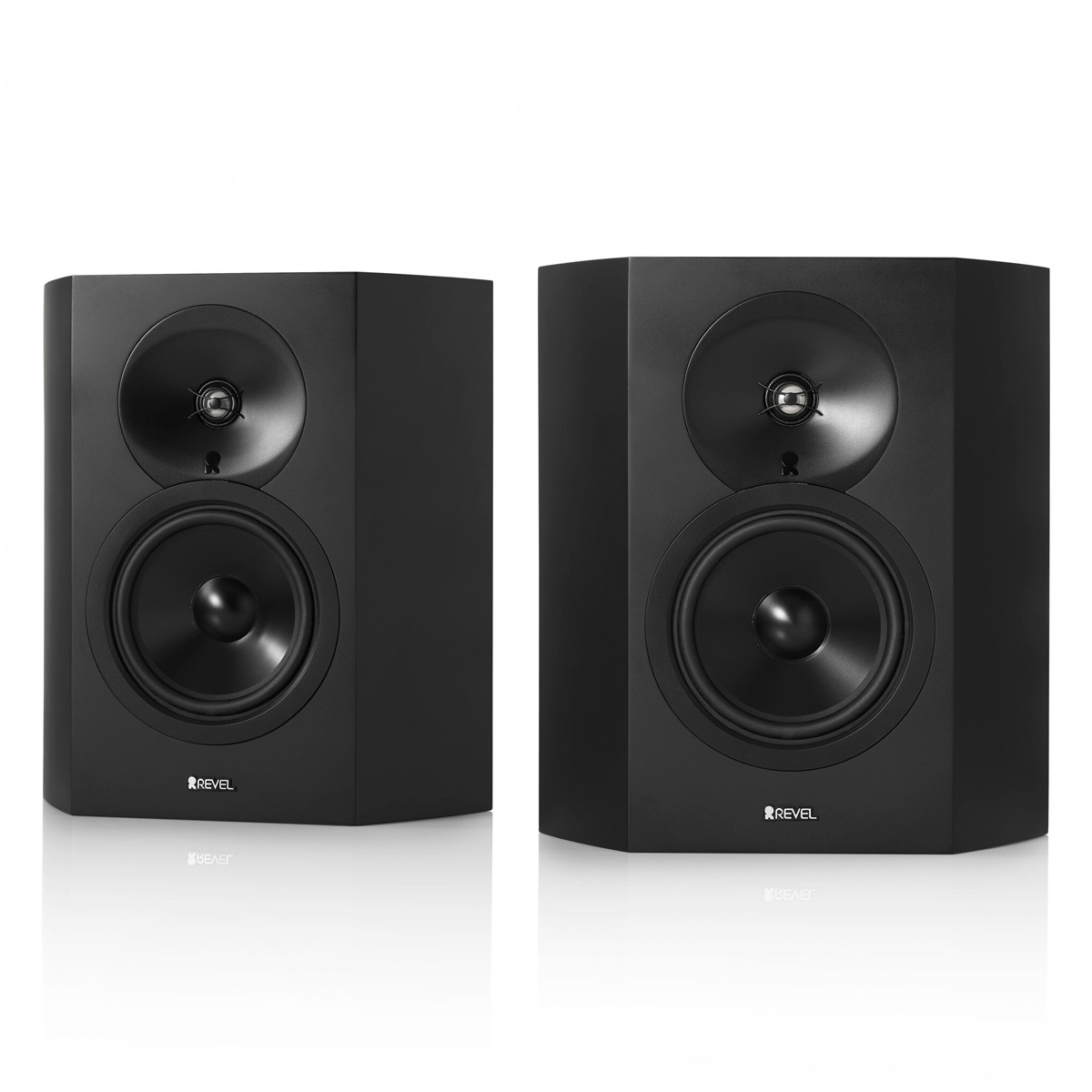

The S16 is a true full range 2-way 6.5” on-wall loudspeaker that was designed to integrate the entire system’s sound into a spacious, enveloping surround-sound environment. By truly being a multi-use speaker the S16 is capable of acting as a LCR or surround sound speaker depending on the specific application. It will deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.

Revel Concerta2 S16

High frequency response is supported by 1 inch aluminum dome tweeters that were derived from Revel’s Performa3 series. Low/Mid range frequency response is supported by 6.5” Aluminum cone woofers featuring low-distortion motor-structures for greater clarity and accuracy with improved sensitivity and output capability.

The patented wave guide design improves tweeter to woofer blend and significantly improves off-axis response for consistent performance over a wide listening area. In doing this we sacrificed no details by making sure no fasteners were visible allowing the speaker to show enhancing smooth lines of the cabinet and magnetically attached grilles. To finish the enclosure, we selected high gloss black and white finishes to highlight the features of this beautiful speaker.

Revel Concerta2 S16 chính hãng

Highlights

Derived from Revel’s award-winning Performa3 Series Loudspeakers

6.5"deep anodized aluminum cone woofers

1" Aluminum Tweeter

Fourth generation Acoustic Lens waveguides

Computer optimized driver positioning and network integration

No visible fasteners on the front, top or side panels

Magnetic grilles with brushed metallic logos

High-gloss Black and High-gloss White painted finishes

General Specifications

Crossover Frequencies 1.8kHz
Enclosure Type Sealed
High-frequency Driver Components 1" Aluminum Tweeter with Acoustic Lens Waveguide
Nominal Impedance 6 Ohms
Input Connections Five-way binding posts
Low Frequency Extension 70Hz, 58Hz, 43Hz (-3 dB, -6 dB, -10 dB)
Low-frequency Driver Components 6.5" Aluminum Cone Woofer
Recommended Amplifier Power 30-120W
Sensitivity 90dB (2.83V @ 1M)
Dimensions 14.75 x 13.3 x 5.5 Inches (37.47 x 33.79 x 13.97 CM)—Including Feet
Weight 14 lbs

Audio Specifications

Crossover Frequencies 1.8kHz
Enclosure Type Sealed
High-frequency Driver Components 1" Aluminum Tweeter with Acoustic Lens Waveguide
Nominal Impedance 6 Ohms
Input Connections Five-way binding posts
Low Frequency Extension 70Hz, 58Hz, 43Hz (-3 dB, -6 dB, -10 dB)
Low-frequency Driver Components 6.5" Aluminum Cone Woofer
Recommended Amplifier Power 30-120W
Sensitivity 90dB (2.83V @ 1M)
Dimensions 14.75 x 13.3 x 5.5 Inches (37.47 x 33.79 x 13.97 CM)—Including Feet
Weight 14 lbs
