Direct Burial Subwoofer The Revel L12XC is a direct burial subwoofer with a 12-inch enclosure, designed to deliver unparalleled, uncompromised Revel sound while withstanding the harsh environments of locations that are hot, cold, damp, humid or wet.

Read More

L12XC

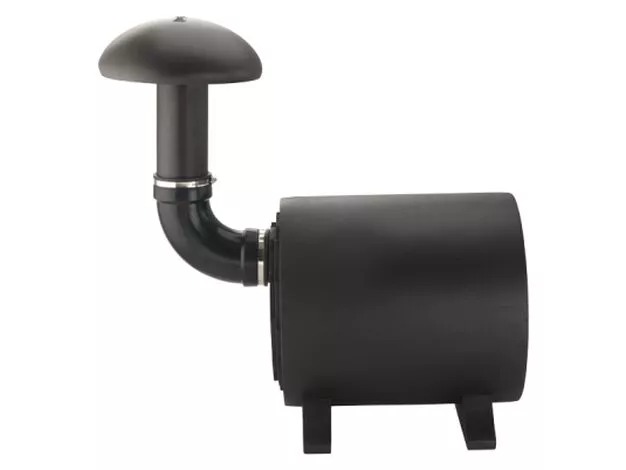

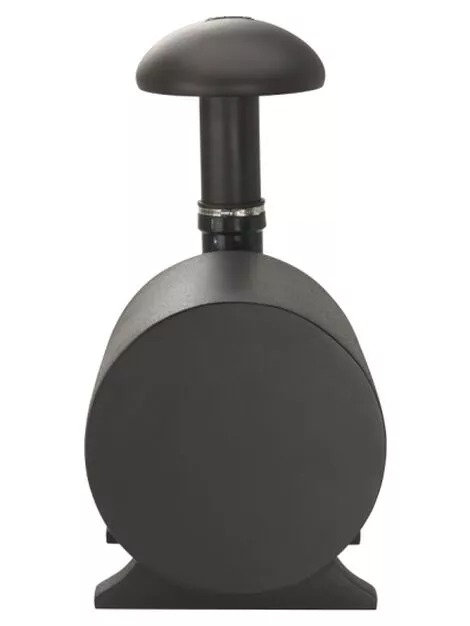

The Revel L12XC is a direct burial subwoofer with a 12-inch enclosure, designed to deliver unparalleled, uncompromised Revel sound while withstanding the harsh environments of locations that are hot, cold, damp, humid or wet.

The L12XC is a powerful direct burial subwoofer with a 12-inch enclosure that can be operated in 6-ohm or constant line voltage systems with the separate 70V multi-tap transformer. The transformer is disguised as a garden rock, allowing it to seamlessly integrate into any landscape environment. Top-of-the line materials and construction provide powerful bass response that stands the test of time, as well as the elements. The L12XC is designed with extreme stealth in mind – only the bass vent canopy is visible.



L12XC Highlights

  • 12-inch / 305mm durable aluminum cone woofer

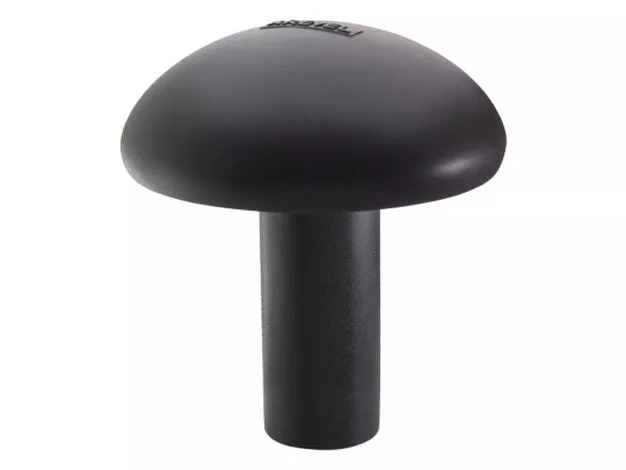

  • Stealth design - only the bass vent canopy is visible
  • IP67 rating on the underground enclosure; IP43 rating on the above-ground canopy.
  • 6-Ohm or 70V operation via external transformer with selectable power taps up to 250W
  • Composite housing with aluminum canopy and polymer port tube stack

Specification

Low-frequency Driver Components 12" Anodized Aluminum Cone Subwoofer
Recommended Amplifier Power 250W RMS
Sensitivity 86dB (2.83V @1M) Without Transformer
Voltage Gain 70V
Weight 66.4 lbs / 30.1kg
Dimensions (H x W x D) 34.6”/18”/35” (87.8cm/45.5cm/88.7cm)
Frequency Response (+/-3dB) 25Hz – 100kHz @-3dB
Transformer Taps 31.75W, 62.5W, 125W, 250W
Impedance 6 Ohm Without Transformer
