The B10 is a powerful 800 watt 10” powered subwoofer that was designed to provide powerful and clear low frequency response.

Read More

B10

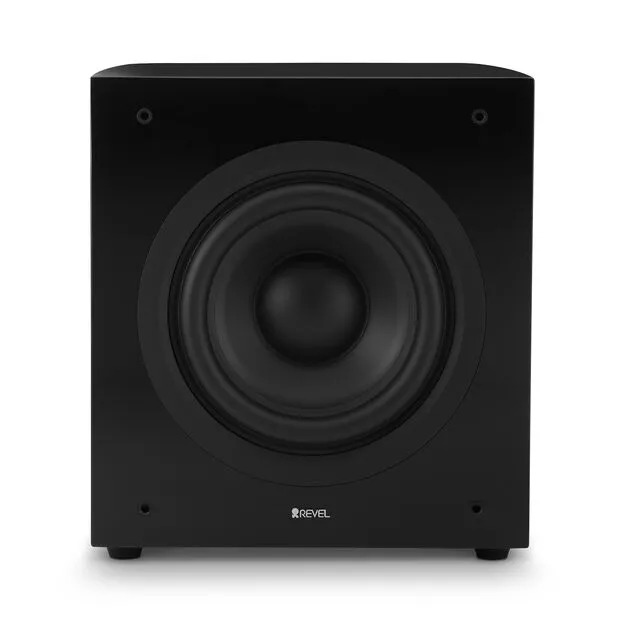

Revel Concerta2 B10

The B10 is a powerful 800 watt 10” powered subwoofer that was designed to provide powerful and clear low frequency response. It will add essential bass response to any music or home theater system.

The 800 Watt RMS (1600 Watt peak) amplifier powers the voice coil to provide ample power for the large diaphragm area and long-excursion capability.

Revel Concerta2 B10

By repositioning the voice coil in the woofer, Revel engineers discovered they could improve the symmetry of the woofer displacement and thereby lower distortion. Additionally, asymmetry attributed to spider non-linearity can also lead to higher distortion. This was solved by adjusting the spider progression to greatly improve the symmetry and as a result, lowered distortion. To finish the enclosure, we selected high gloss black and white finishes to highlight the features of this beautiful subwoofer.

Revel Concerta2 B10 chính hãng

Highlights

Derived from Revel’s award-winning Performa3 Series Loudspeakers

10" Coated Fiber-Composite Cone

Constant Pressure Gradient Port Design

Detectable grilles with brushed metallic logos

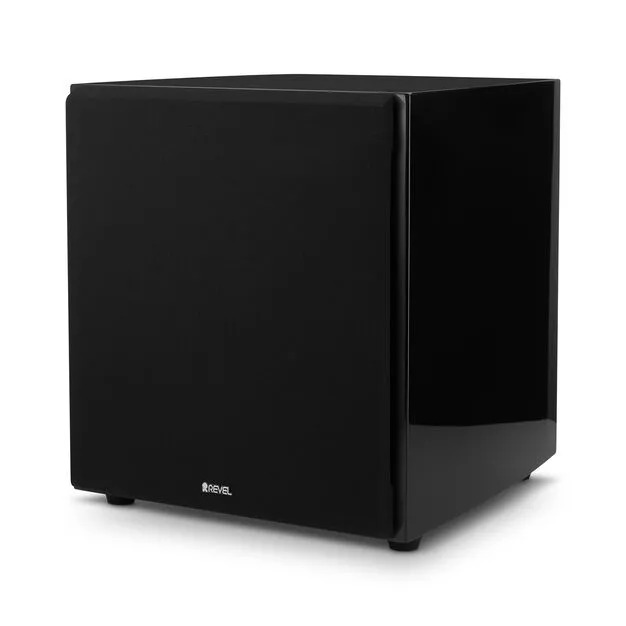

High-gloss Black and High-gloss White painted finishes

800 Watt 10” Powered Subwoofer

Single band parametric EQ

General Specifications

Crossover Frequencies Variable 50 – 150Hz
Enclosure Type Bass-Reflex via Rear-Firing Port

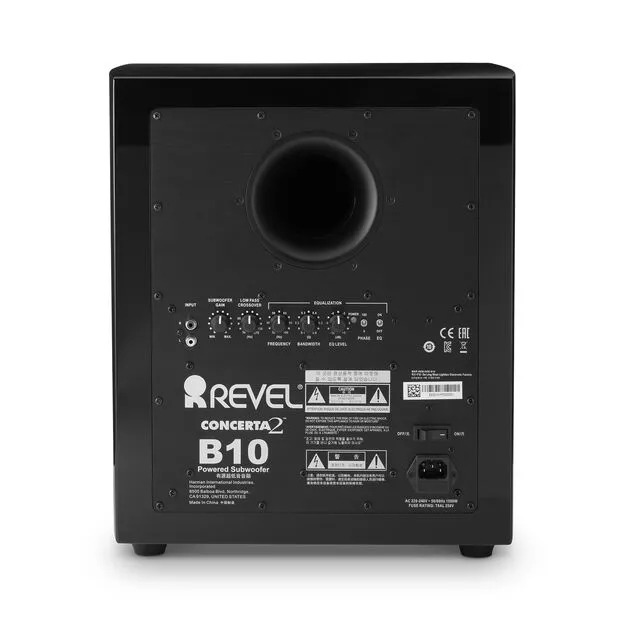

Input Connections L/R Stereo RCA Input
Low Frequency Extension 35Hz, 32Hz, 29Hz (-3 dB, -6 dB, -10 dB)
Low-frequency Driver Components 10” Coated Fiber-Composite Cone, Cast-Frame Woofer
Recommended Amplifier Power 800W Class D Amplifier
Dimensions 16.45" x 14.85"x 15.45" (41.8cm x 37.7cm x 39.2cm) —Including Feet
Weight 53 lbs

Audio Specifications

Crossover Frequencies Variable 50 – 150Hz
Enclosure Type Bass-Reflex via Rear-Firing Port
Input Connections L/R Stereo RCA Input
Low Frequency Extension 35Hz, 32Hz, 29Hz (-3 dB, -6 dB, -10 dB)
Low-frequency Driver Components 10” Coated Fiber-Composite Cone, Cast-Frame Woofer
Recommended Amplifier Power 800W Class D Amplifier
Dimensions 16.45" x 14.85"x 15.45" (41.8cm x 37.7cm x 39.2cm) —Including Feet
Weight 53 lbs
