Meitner
Lượt xem: 3133

Trong kho : Còn hàng

Bảo hành : 12 tháng

Up to 24bit/192kHz & DSD support over all inputs, USB Audio, AES, TOSLINK and COAX inputs 2xDSD (via DoP), DXD (352/384kHz) over USB Audio MFAST™ asynchronous technology for instant signal acquisition, jitter-free performance MDAT2™ signal processing technology with DSD512/8xDSD upsampling while preserving phase, frequency and dynamic integrity of the waveform MDAC™ discrete dual differential D-to-A conversion circuit MCLK™ high-purity master clock that establishes new benchmarks in jitter performance Galvanically isolated USB Audio interface USB service port for future software upgrades Sleek credit-card style remote and serial port for wired remote control

Read More

MA-1 V2 Stereo D/A Converter

With the update of Meitner Audio’s very first product, the Meitner MA1-V2 stereo D/A Converter continues to provide enthusiasts with accessible cost-no-object performance.

How did we do it? By utilizing the award-winning technologies Ed Meitner developed for our EMM Labs line of products. The result is a converter that turns the “you-have-to-spend-a-lot-to-get-a-lot” paradigm on its proverbial ear.

It also happens to turn your computer or media server into a high-end, high-resolution music-making machine.

The Meitner MA-1 V2:

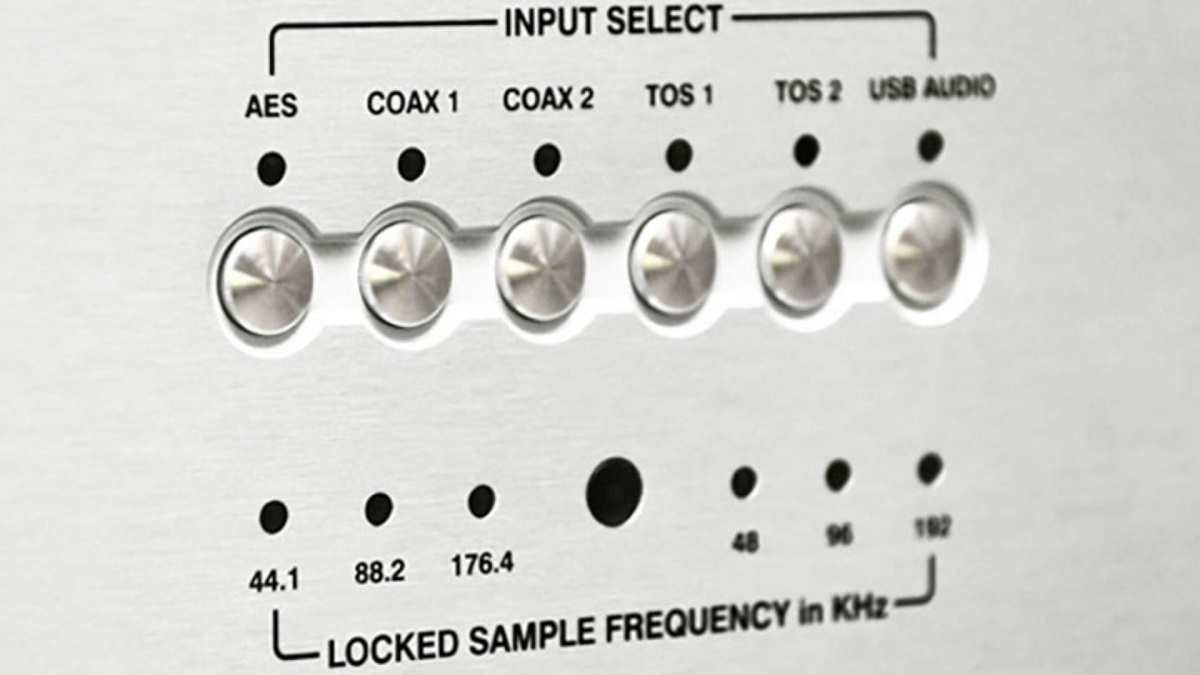

  • Supports audio at sample rates of 44.1, 48, 88.2, 96, 176.4, 192kHz and DSD through all 6 digital inputs
  • Supports DSD128/2xDSD and DXD streaming over USB Audio
  • Complies with the USB Class 2 audio interface standard
  • Is simple to use. There's nothing to configure. Just plug and play



MFAST™ asynchronous technology

Feed the MA-1 V2 through any of its six inputs and the Meitner Frequency Acquisition System (MFAST™) instantly acquires the signal, buffers it, then strips jitter out completely. A high-speed asynchronous system, it decouples input from output. MFAST™ ensures that you’ll enjoy pristine sonic clarity whether the incoming data stream is pure or anything but.

MDAT™: 8x DSD upsampling



From there, the signal goes straight into the newly updated Meitner Digital Audio Translator (MDAT2™) which upsamples digital audio to DSD512/8xDSD, eight times the SACD standard sampling rate.

The world's best dac/clock combination

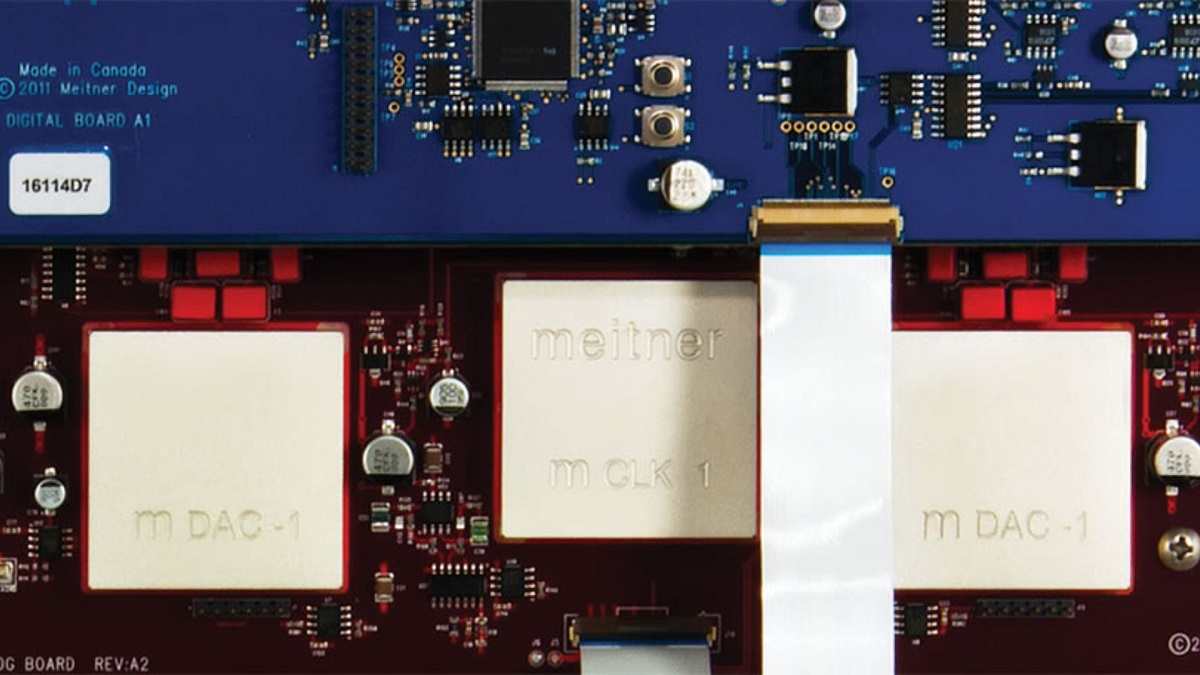

Our MA-1 V2 features the updated MDAC™ dual differential discrete D-to-A and MCLK™ high-purity master clock modules. Together, they’re music to our ears. Yours too, as an audition will quickly prove.

The Meitner MA-1 V2 Stereo D/A Converter. It may be the first audio product that’s equally appealing to those on a budget, and those with no budget limitations at all.



Key Features



  • Up to 24bit/192kHz & DSD support over all inputs, USB Audio, AES, TOSLINK and COAX inputs
  • 2xDSD (via DoP), DXD (352/384kHz) over USB Audio
  • MFAST™ asynchronous technology for instant signal acquisition, jitter-free performance
  • MDAT2™ signal processing technology with DSD512/8xDSD upsampling while preserving phase, frequency and dynamic integrity of the waveform
  • MDAC™ discrete dual differential D-to-A conversion circuit
  • MCLK™ high-purity master clock that establishes new benchmarks in jitter performance
  • Galvanically isolated USB Audio interface
  • USB service port for future software upgrades
  • Sleek credit-card style remote and serial port for wired remote control
Power Supply:
Power factor corrected
Universal 90V-260V, 50/60Hz
Power consumption: max. 50W
CE Approved

Specification

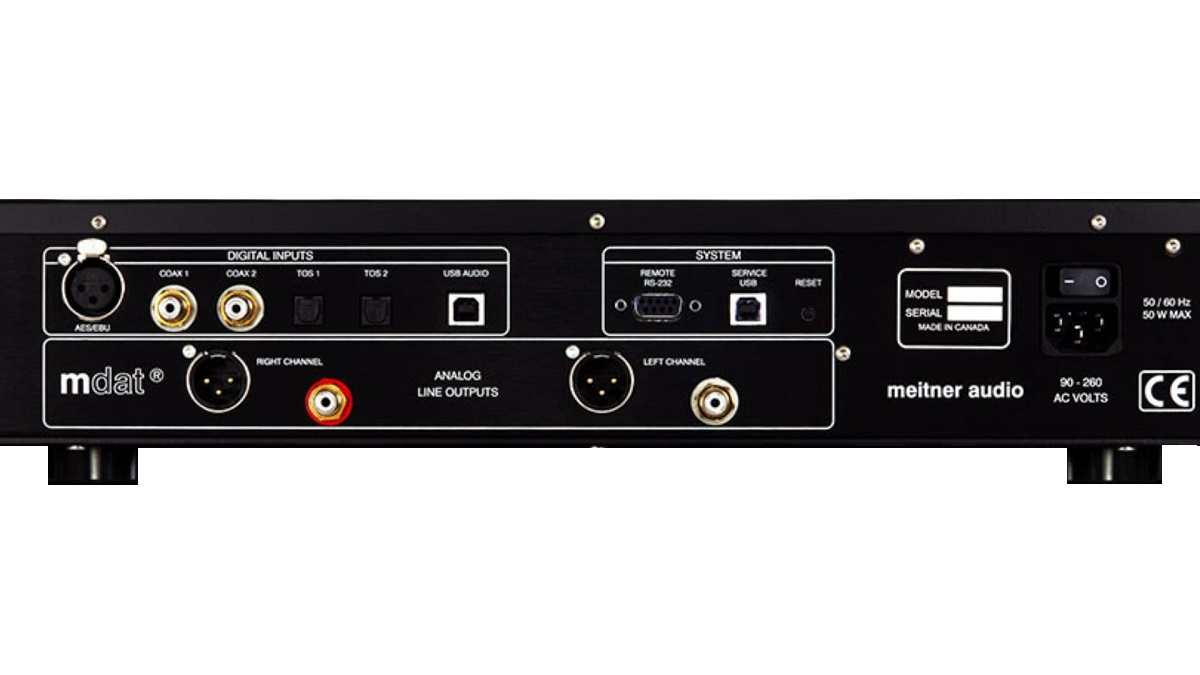

Digital inputs

AES/EBU, 2x S/PDIF COAX, 2x TOSLINK, USB Audio supports up to 24bit/192kHz and DSD

USB Audio also supports 2xDSD and DXD (352/384kHz)

Stereo Analog Outputs

Balanced (XLR)

Unbalanced (RCA)

Output voltage

XLR outputs: 4.6Vrms (+15.4dBu)

RCA outputs: 2.3Vrms (+9.4dBu)

Output impedance

300 ohms balanced (XLR)

150 ohms unbalanced (RCA)

Dimensions

W x D x H: 435 x 400 x 92mm

Weight: 7.43kg (with remote control)
