No 585.5
Find a deeper connection to the music you love with the № 585.5. This integrated amplifier delivers superb performance, reproducing any source material with exceptional realism so you’re drawn into the details of your music with every single listen.
Detailed Digital Audio
Unlock the full potential of your digital music collection. The № 585.5 contains a premium Precision Link Digital-to-Analog Converter (DAC) that accurately reproduces audio signals and minimizes noise, so you hear the truth, passion and detail of every note.
Pure Power

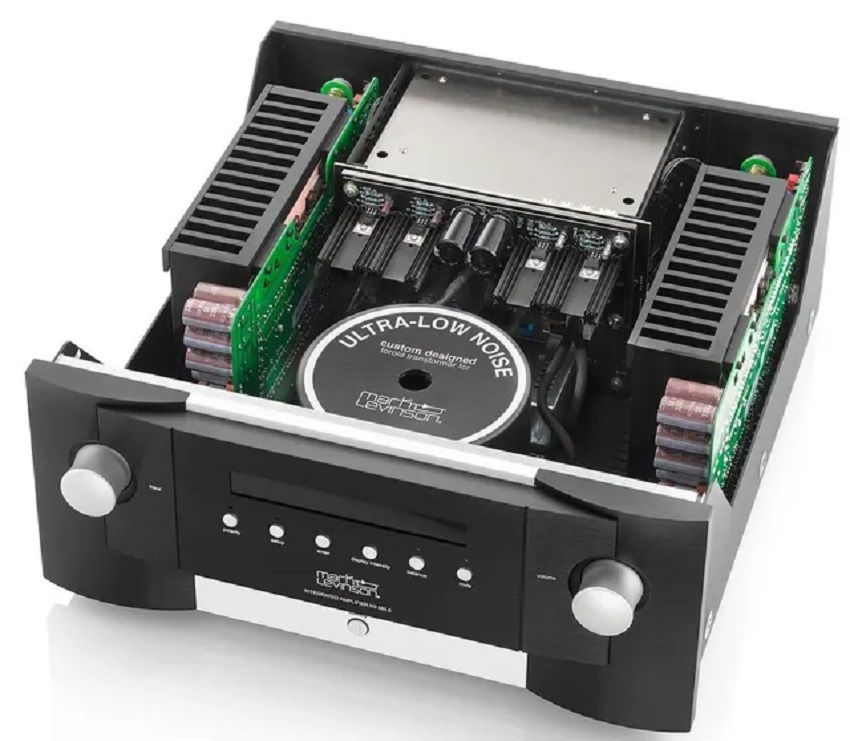

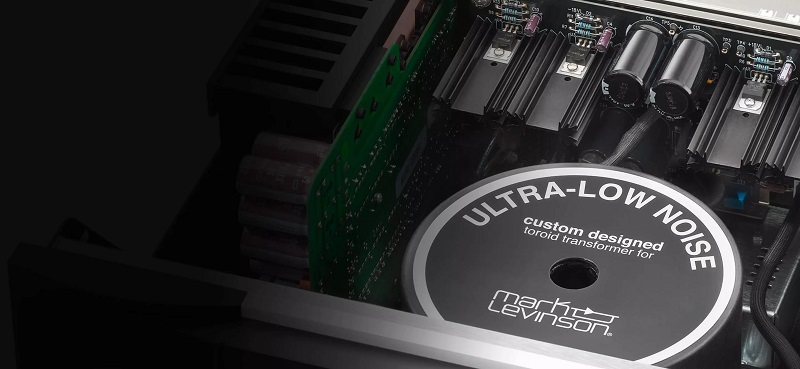

Fill your home with distortion-free sound. The № 585.5 contains an oversized toroidal transformer and massive capacitors that deliver all the headroom you need for your most dynamic performances.

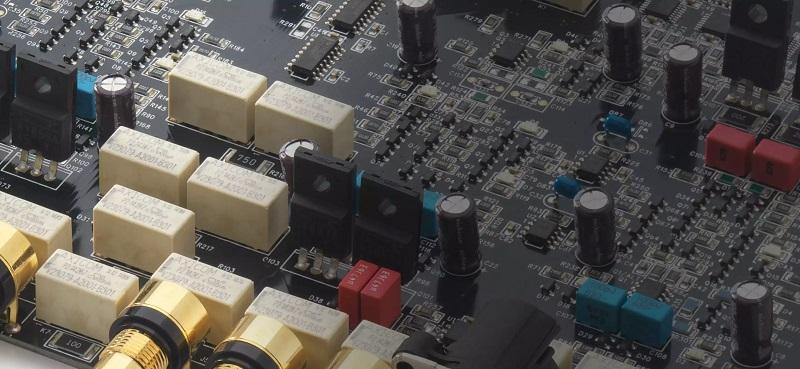

Pure Path Circuit Design
Our proprietary approach to circuit design delivers uncompromising musical purity and an engaging listening experience. By using discrete components carefully selected for their precise function, the № 585.5 delivers unmatched sound quality that captures the nuances of every note.
The Mark Levinson № 585.5 integrated amp is a complete success in every area of its build and performance … it speaks with a clarity unrivaled among competing products.
Specifications
| AMPLIFIER SECTION | |
| Output Power | 200W RMS per channel @ 8 Ω, 20Hz – 20kHz |
| Damping Factor | >400 @ 20Hz, referred to 8 Ω |
| Frequency Response | 20Hz – 20kHz, ±0.13dB; 2Hz – 250kHz, +0.2dB/–3dB |
| Signal-to-Noise Ratio | >98dB (20Hz – 20kHz, unweighted); >103dB (20Hz – 20kHz, A-wtd), referred to full output – maximum volume setting |
| Voltage Gain | 40.7dB (maximum volume setting) |
| Total Harmonic Distortion | <0.01% @ 1kHz, 200W, 8 Ω; <0.1% @ 20kHz, 200W, 8 Ω |
| PREAMPLIFIER SECTION | ANALOG |
| Input Impedance | >45k Ω (RCA & XLR) |
| Input Overload | >5.5V RMS (RCA & XLR) |
| PREAMPLIFIER SECTION | DIGITAL |
| Sample Rates/Bit Depth | PCM: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, DSD: Native, single- and double-speed176.4kHz, 192kHz/up to 32-bit; |
| GENERAL | |

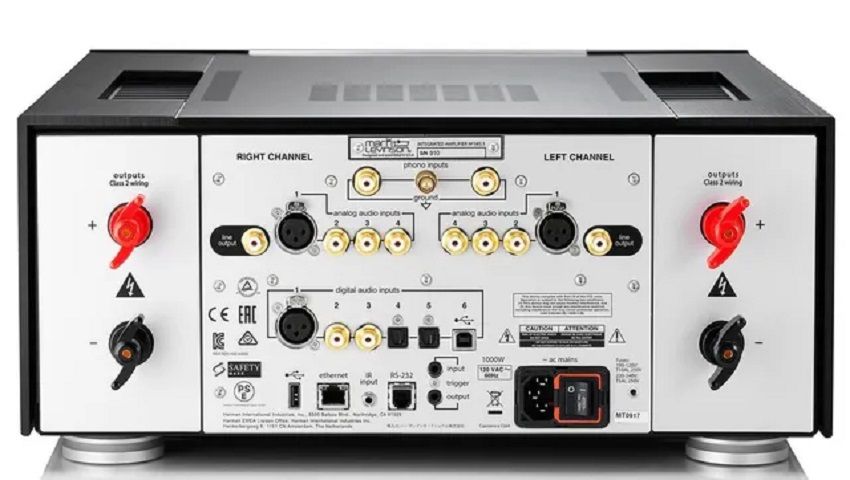

| Analog Audio Connectors | 3 pairs single-ended inputs (RCA); 1 pair balanced inputs (XLR); 1 pair single-ended line outputs (RCA); 1 pair loudspeaker outputs ("Hurricane" binding posts w/banana sockets that accept spade lugs with 1/4" (6.3mm) spacing up to 1/8" (3mm) thick) |
| Digital Audio Connectors | 1 balanced AES/EBU input (XLR); 2 coaxial S/PDIF inputs (RCA); 2 optical inputs (Tos-Link); 1 asynchronous USB input (USB-B) Control Connectors: 1 RS-232 port (RJ-12 connector); 1 IR input (1/8" phone jack); 1 programmable 12V DC trigger output (1/8" phone jack), 100mA maximum; 1 programmable 12 DC trigger input (1/8" phone jack); 1 Ethernet port (RJ45 connector) |
| Mains Voltage | 100V AC, 115V AC, or 230V AC (factory-set) |
| Power Consumption | Maximum 1000W (power on) |
| Unit Dimensions (H x W x D) | 6.9" (175mm) – without feet; 7.59" (193mm) – with feet x 17.25" (438mm) x 19.95" (507mm) |
| Packaging Dimensions (H x W x D) | 19" (483mm) x 26" (660mm) x 26" (660mm) |
| Weight | 72 lb (32.6kg) – net; 96 lb (43.4kg) – with packaging |
