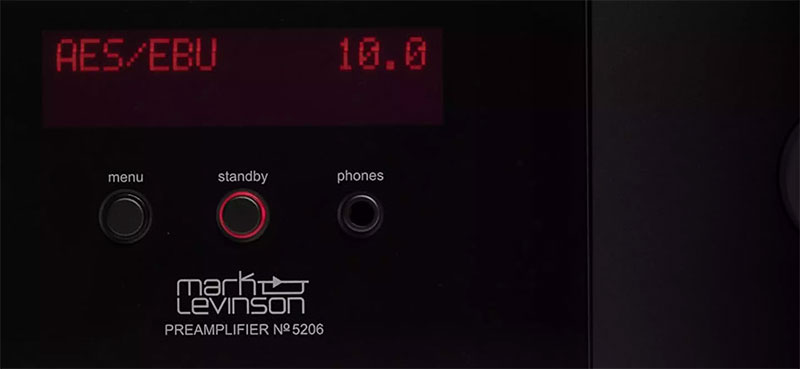

No 5206

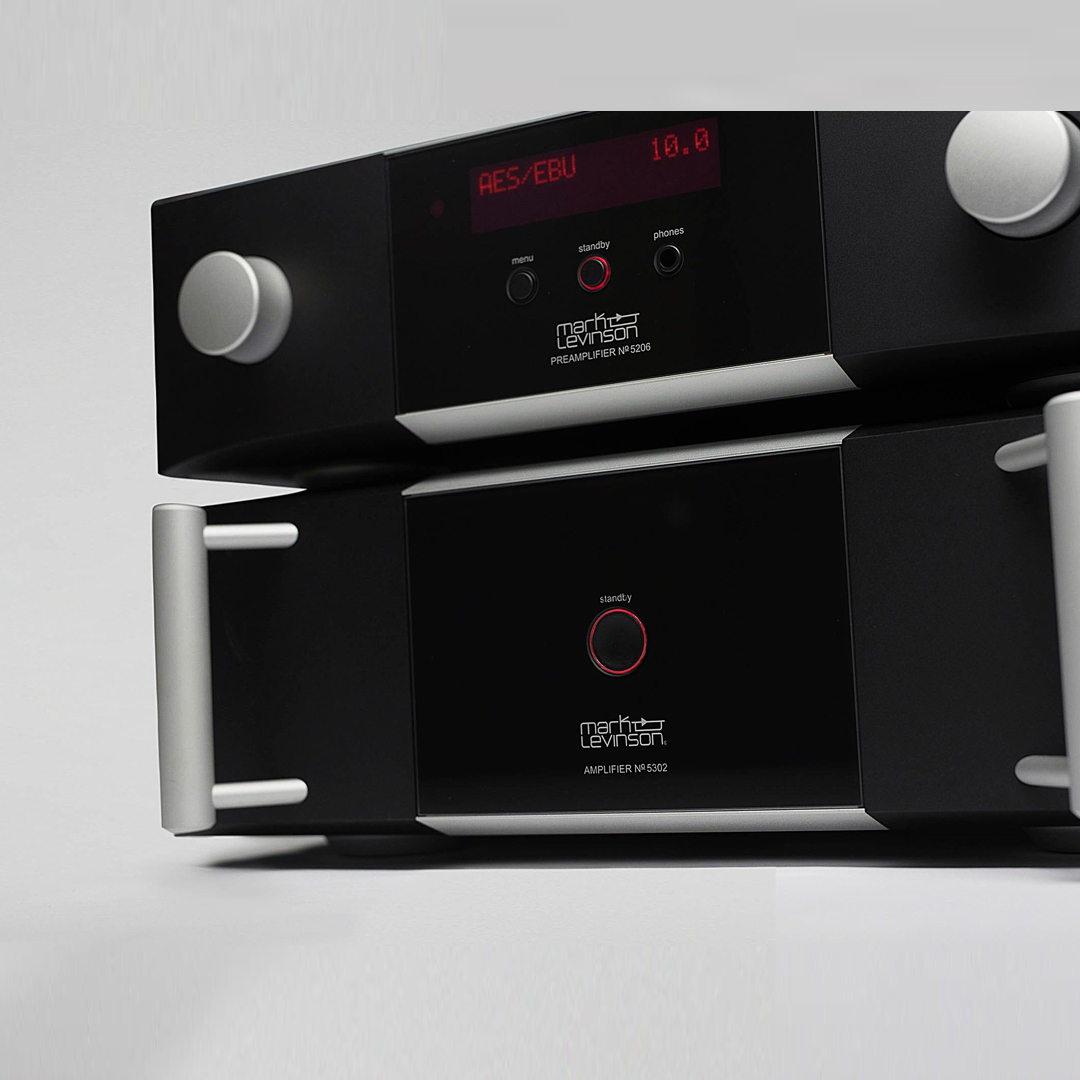

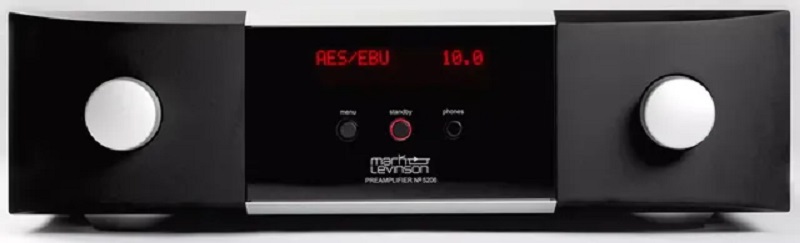

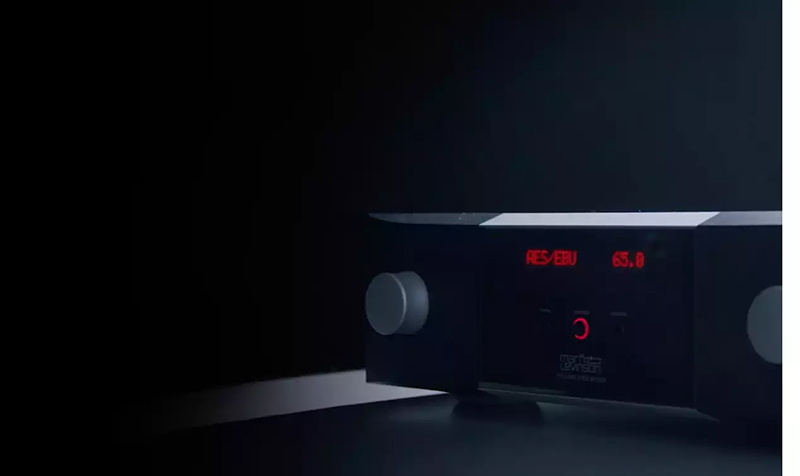

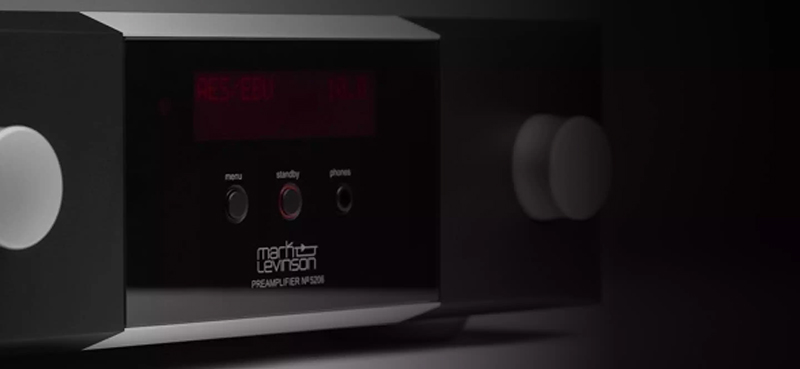

Experience the inner details and maximum dynamics of music with the № 5206. Awarded two patents for groundbreaking design, this class-A preamplifier serves as the hub of your entire audio system. By perfectly preserving both digital and analog audio signals, the № 5206 delivers the purest possible signal, allowing you to hear the full potential of your music.
Dynamic Digital Audio
Transform your digital music collection into a high-quality sound experience that rivals live performance. The № 5206 includes a custom-made Precision Link II Digital-to-Analog Converter (DAC) that accurately reproduces audio signals, minimizes noise and delivers outstanding digital audio quality.
Pure Path Circuit Design

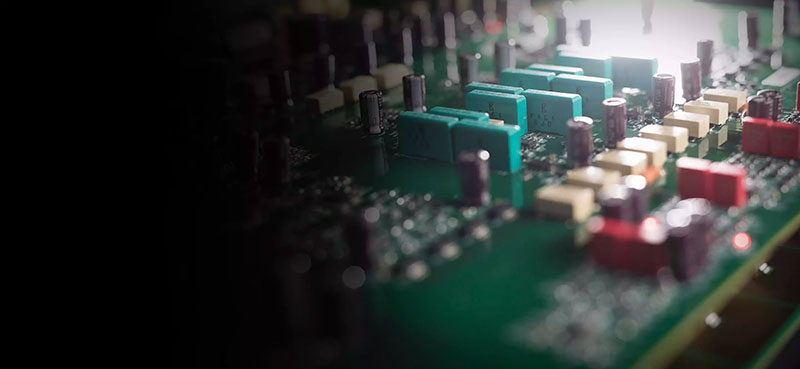

Our proprietary approach to circuit design delivers uncompromising musical purity and an engaging listening experience. By using discrete components carefully selected for their precise function, the № 5206 delivers unmatched class-A sound quality that captures the nuances of every note.
High-Performance Headphone Output
Unleash all the performance your headphones can deliver. The № 5206 preamplifier’s class - A analog line stage has so much current capability it can power your headphones directly. Experience an incredibly detailed listening experience — and lose yourself completely in the music.
Bluetooth Audio Input
Experience the highest quality and most reliable Bluetooth playback, thanks to a Bluetooth receiver that’s equipped with aptX™ HD.
Premium Phono Stage
Listen to your vinyl at its absolute best through the built-in phono preamp supporting any cartridge type.
Bluetooth Audio Input
Experience the highest quality and most reliable Bluetooth playback, thanks to a Bluetooth receiver that’s equipped with aptX™ HD.
Highlights
Pure Path class-A analog signal with two awarded patents
32 Bit/384 kHz Precision Link II DAC with 4x DSD Capability
Independent input relays
Class-A high pass subwoofer filter
Premium hybrid topography phono stage
Selectable capacitive and resistive load settings
RIAA equalization
MQA Full Decode certified
Dedicated 80VA toroidal transformer
Extensive internal shielding
Two separate voltage regulation stages
Designed and handcrafted in the USA
Specifications
| ANALOG LINE STAGE | |
| Gain | 8dB maximum, single-ended outputs 4dB maximum, balanced outputs |
| Output overload: | >7.5V RMS, single-ended outputs >15V RMS, balanced outputs |
| Frequency response | 20Hz to 20kHz, ±0.03dB |
| Total harmonic distortion | <0.003%, 20Hz to 20kHz |
| [At unity gain volume setting, 2V RMS single-ended/4V RMS balanced out] | |
| Signal-to-noise ratio: | >93dB, 20Hz to 20kHz, wideband, unweighted [At unity gain volume setting, referred to 2V RMS single- ended/4V RMS balanced out] |
| Subwoofer high-pass filter | Selectable; 80Hz, 2nd order (12dB/octave) |
| PHONO STAGE | |
| RIAA frequency response | 20Hz to 20kHz, ±0.3dB |
| Infrasonic filter | Selectable; 20Hz, 1st order (6dB/octave) |
| Moving-magnet mode | |
| Input resistance | 47kΩ |
| Input capacitance | Selectable; 20, 70, 120, or 170pF |
| Gain | 39dB at 1kHz |
| Total harmonic distortion | <0.01%, 1kHz, 2V RMS output <0.05%, 20Hz to 20kHz, 2V RMS output |
| Signal-to-noise ratio | >80dB, 20Hz to 20kHz, wideband, Unweighted, referred to 2V RMS output |
| Maximum input level | >190mV at 1kHz >1.6V at 20kHz |
| Moving-coil mode | |
| Input resistance | Selectable; 37Ω to 1000Ω |
| Gain | 69dB at 1kHz |
| Total harmonic distortion | <0.01%, 1kHz, 2V RMS output <0.05%, 20Hz to 20kHz, 2V RMS output |
| Signal-to-noise ratio: | >68dB, 20Hz to 20kHz, wideband, unweighted, referred to 2V RMS output |
| Maximum input level: | >6.5mV at 1kHz >19mV at 20kHz |
| DIGITAL-TO-ANALOG CONVERTER STAGE | |
| Output voltage: | 5.6V RMS at 0dBFS, maximum volume, single-ended outputs 11.2V RMS at 0dBFS, maximum volume, balanced outputs |
| Frequency response: | 20Hz to 20kHz, +0/–0.05dB [with 44.1kHz/16 bit signal] 20Hz to 20kHz, +0/–0.02dB [with 192kHz/24 bit signal] |
| Total harmonic distortion | <0.0025%, 20Hz to 20kHz, 3V RMS single-ended output [with 44.1kHz/16 bit signal] <0.002%, 20Hz to 20kHz, 6V RMS balanced output [with 44.1kHz/ 16 bit signal] <0.002%, 20Hz to 20kHz, 3V RMS single-ended output [with 192kHz/ 24 bit signal] <0.0017%, 20Hz to 20kHz, 6V RMS balanced output [with 192kHz/ 24 bit signal] <0.004%, 90kHz, 3V RMS single- ended output [with 192kHz/ 24 bit signal] <0.003%, 90kHz, 6V RMS balanced output [with 192kHz/24 bit signal] |
| Signal-to-noise ratio | >92dB, 20Hz to 20kHz, wideband, unweighted, with 44.1kHz/16 bit signal [referred to 3V RMS single- ended or 6V RMS balanced output] >98dB, 20Hz to 20kHz, wideband, unweighted, with 192kHz/24 bit signal [referred to 3V RMS single- ended or 6V RMS balanced output] |
| Sample rates/bit depth | PCM: 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, or 384kHz; up to 32 bits DSD: Native or DoP; single, double, or quad speed (2.8, 5.6, or 11.2MHz) |
| HEADPHONE OUTPUT | |
| Total harmonic distortion | <0.04%, 20Hz and 1kHz, 2V RMS output, 30Ω load <0.1%, 20kHz, 2V RMS output, 30Ω load |
| Output overload | >3.3V RMS, 30Ω load |
| Signal-to-noise ratio | >88dB, 20Hz to 20kHz, wideband, unweighted, referred to 2V RMS output |
| GENERAL | |

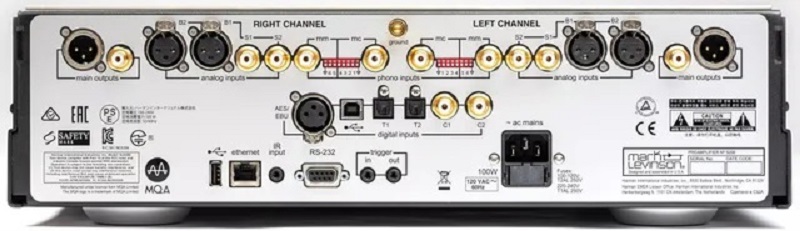

| Analog input connectors: | 2 pairs balanced line-level inputs (XLR) 2 pairs single-ended line-level inputs (RCA) 1 pair single-ended moving-coil phono inputs (RCA) 1 pair single-ended moving-magnet phono inputs (RCA) |
| Digital audio connectors | |
| (№5206 only): | 2 coaxial S/PDIF inputs (RCA) 2 optical S/PDIF inputs (Toslink) 1 balanced AES/EBU input (XLR) 1 asynchronous USB input (USB-B) |
| Output connectors | 1 pair single-ended line-level outputs (RCA) 1 pair balanced line-level outputs (XLR) |
| Control connectors | 1 RS-232 port (DB-9) 1 Ethernet port (RJ-45) 1 USB port for firmware updates (USB-A) 1 baseband IR input (⅛"/3.5mm phone jack) 1 programmable 12V DC trigger output, 100mA maximum (⅛"/3.5mm phone jack) 1 programmable 12V DC trigger input (⅛"/3.5mm phone jack) |
| Power consumption: | Power on: 70W Power on (headphones connected): 85W Normal standby: 65W Power Save standby: 4W Green standby: <0.4W |
| Dimensions/Weight | |
| Unit only: | Height: 4.96”/126mm Height without feet: 4.50”/114mm Width: 17.25”/438mm Depth, enclosure only: 18.00”/457mm Depth, with knobs and rear connectors: 19.25”/489mm Weight: 34 lbs/15.4kg |
| With packaging: | Height: 13.63”/346mm Width: 24.25”/616mm Depth: 29.00”/737mm Weight: 48 lbs/21.7kg |
