Dual 15-inch (380mm) Passive Subwoofer The SSW-1 is a custom in-room/built-in subwoofer and is the flagship of the JBL Synthesis SSW subwoofer range. It features dual 15-inch (380mm) high-excursion cast-frame woofers in a heavily-braced, front-ported enclosure constructed from 1-inch MDF throughout. The SSW-1 delivers extreme low-frequency performance and high SPL output levels for custom installations in large to extra-large rooms.
SSW-1

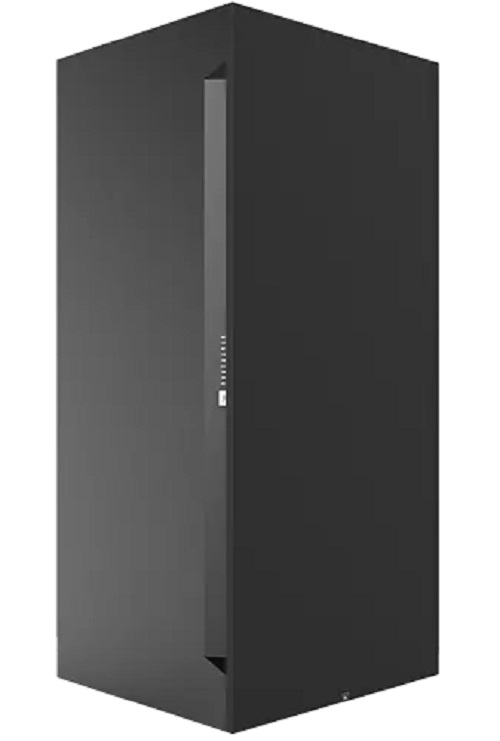

The SSW-1 is a custom in-room/built-in subwoofer and is the flagship of the JBL Synthesis SSW subwoofer range.
It features dual 15-inch (380mm) high-excursion cast-frame woofers in a heavily-braced, front-ported enclosure constructed from 1-inch MDF throughout. The SSW-1 delivers extreme low-frequency performance and high SPL output levels for custom installations in large to extra-large rooms.

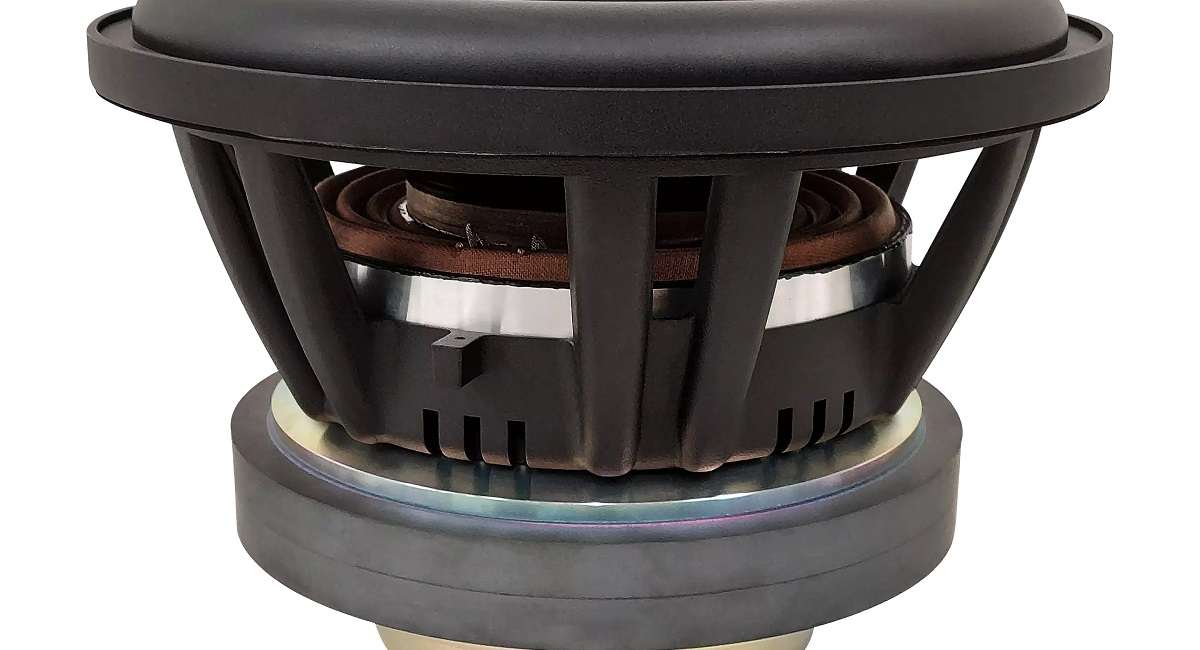

DUAL 15" (380MM) CAST-FRAME, ADVANCED ALUMINUM MATRIX CONE WOOFERS WITH 6-INCH (150MM) VOICE COILS

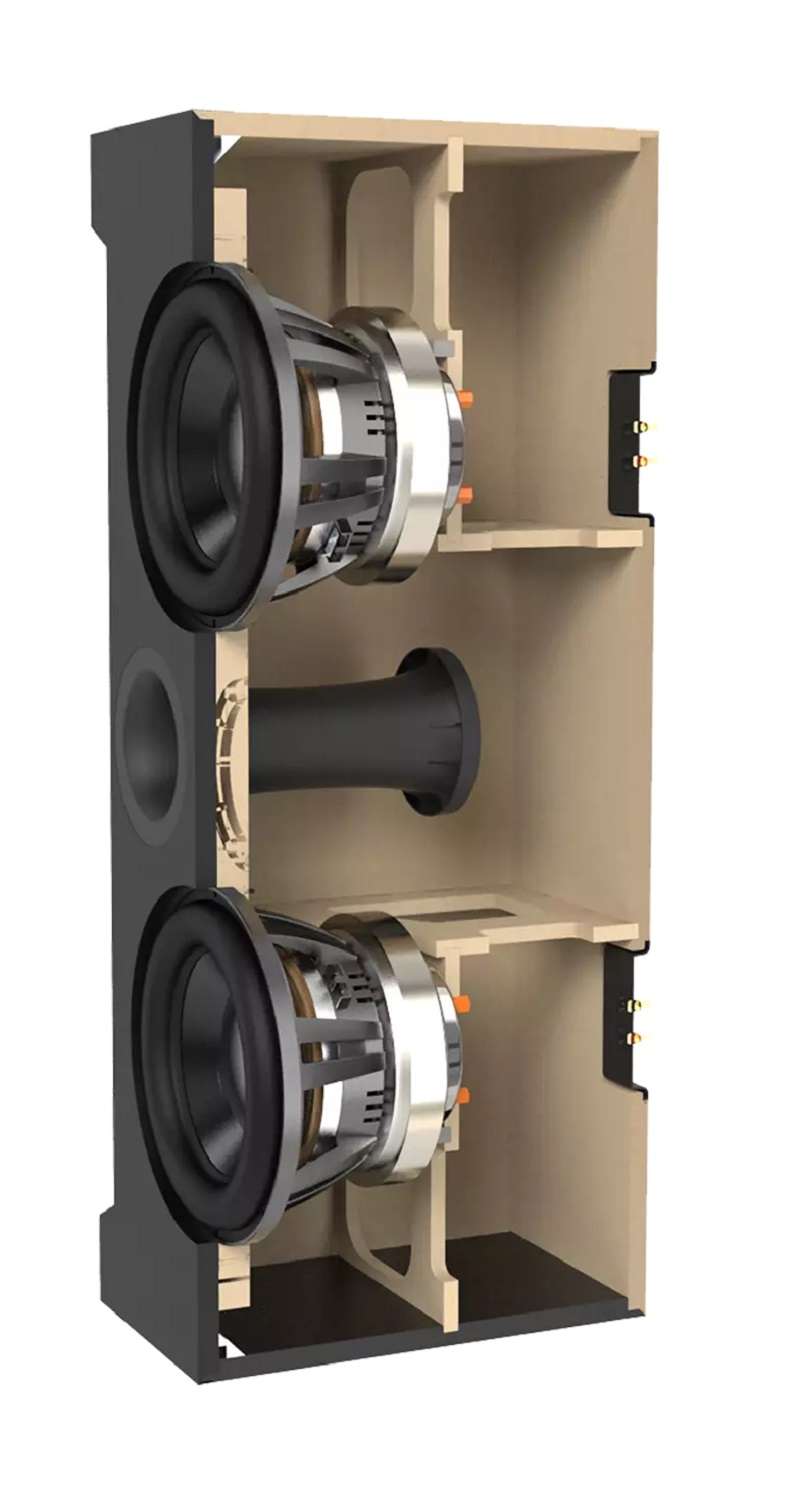

HEAVILY-BRACED, 1-INCH (25MM) THICK MDF ENCLOSURE

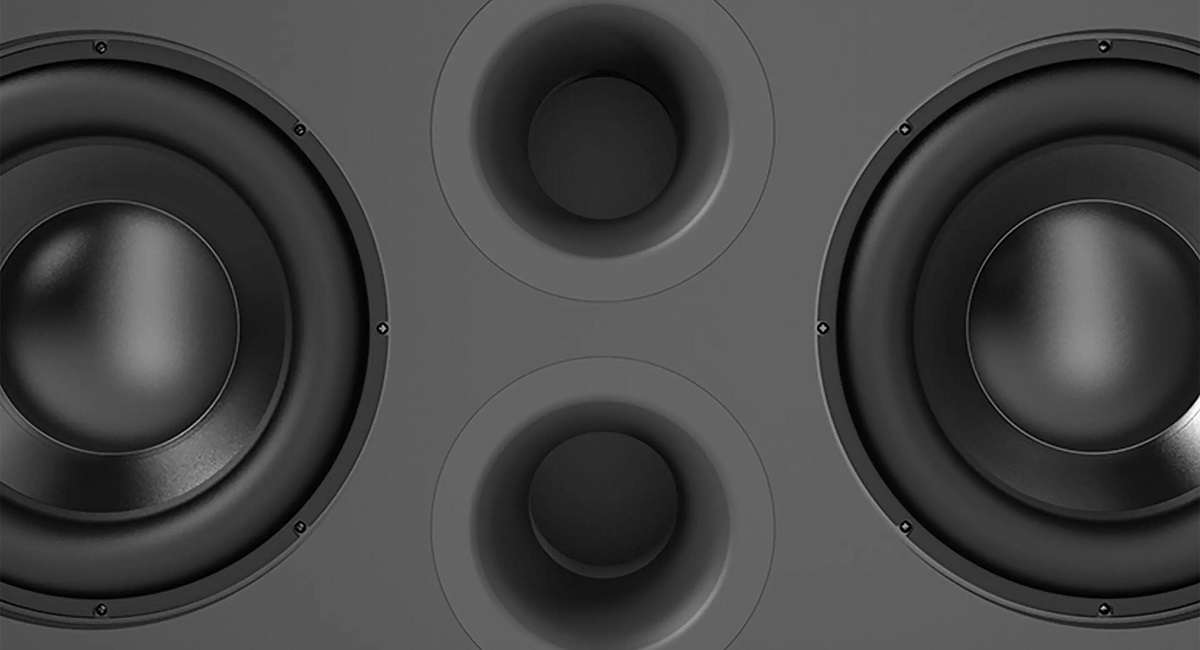

DUAL PATENTED SLIPSTREAM™ FRONT-FIRING PORTS
Specifications
| Type | Dual 15-inch (380mm) in-room passive subwoofer |
| Recommended Amplifier Power | 2500 WRMS per woofer (5,000 WRMS total) |
| Recommended Amplifier | (1) JBL Cinema MA4-D (bridged) |
| Impedance | 8 Ohm per woofer |
| Loudspeaker Sensitivity | 90 dB/1W/1m |
| Frequency Response | 15 Hz – 400 Hz (-6 dB) |
| Low Frequency Extension | 13.5 Hz (-10 dB), 15 Hz (-6 dB), 16.7 Hz (-3 dB) |
| Enclosure Type | Bass reflex with dual front slipstream ports, tuned to 18 Hz |
| Grille Dimensions | 53.5" H x 24" W x 0.738" D (1358.9mm x 609.6mm x 18.75mm) |
| Product Dimensions | 53.5" H x 24" W x 22" D (1358.9mm x 609.6mm x 558.8mm) |

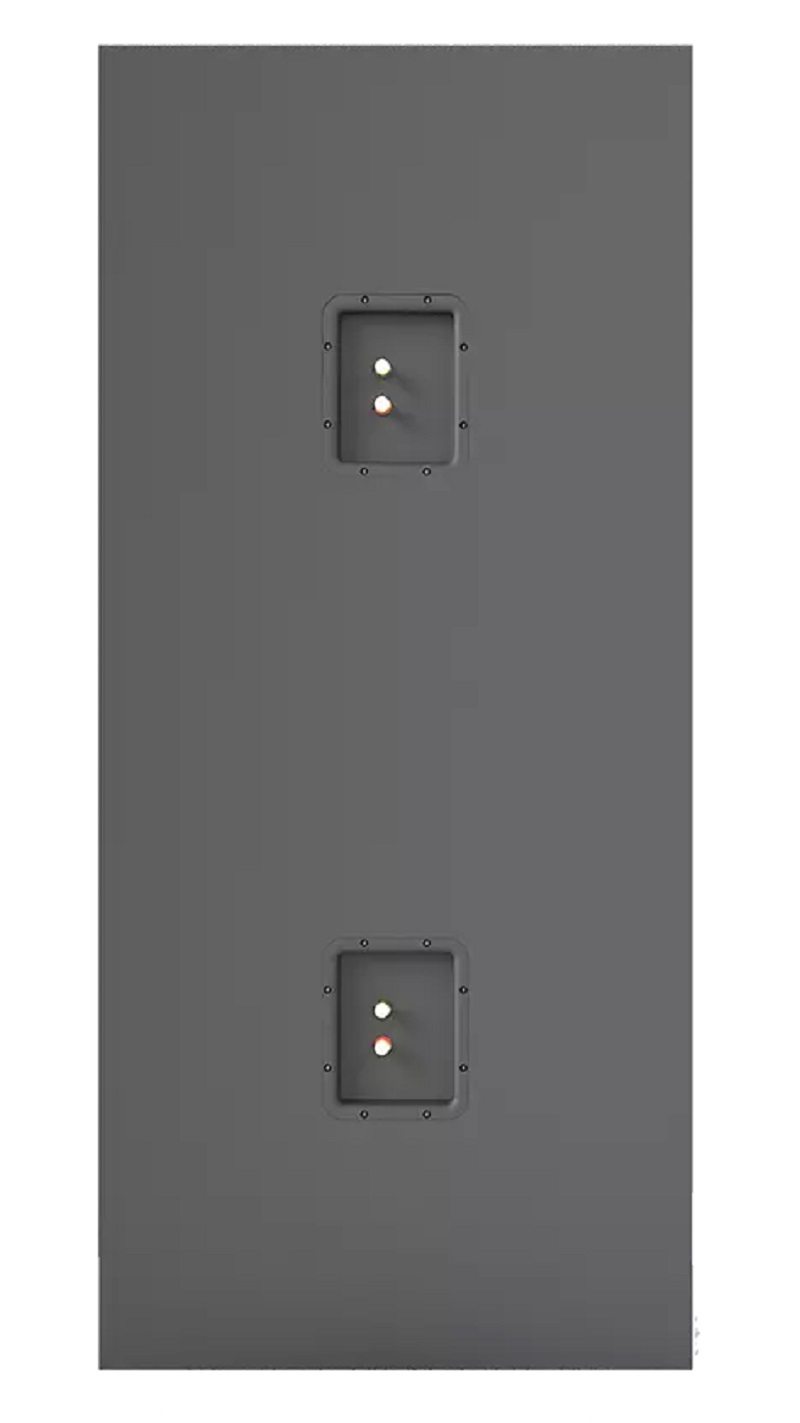

| Input Type | Dual sets of gold-plated binding posts |
| Product Weight | 350.5 lb. (159 kg.) |
| Shipping Weight | 541.5 lb. (245.5 kg.) in crate |
| Shipping Units of Measure | Each, in crate |
