SCL-8
The SCL-8 is the most compact round in-ceiling model in the JBL Synthesis Custom Loudspeaker (SCL) series.
It is designed for use as a height channel or in-ceiling LCR or surround channel loudspeaker.
The SCL-8 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn. This patented horn design is integrated with an angled 5.25-inch (130mm) Advanced Aluminum Matrix cone cast-frame woofer operating behind an acoustic aperture waveguide.
The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 60 degrees from the listening position. The SCL-8 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution. It is ideal for use in small to medium rooms.

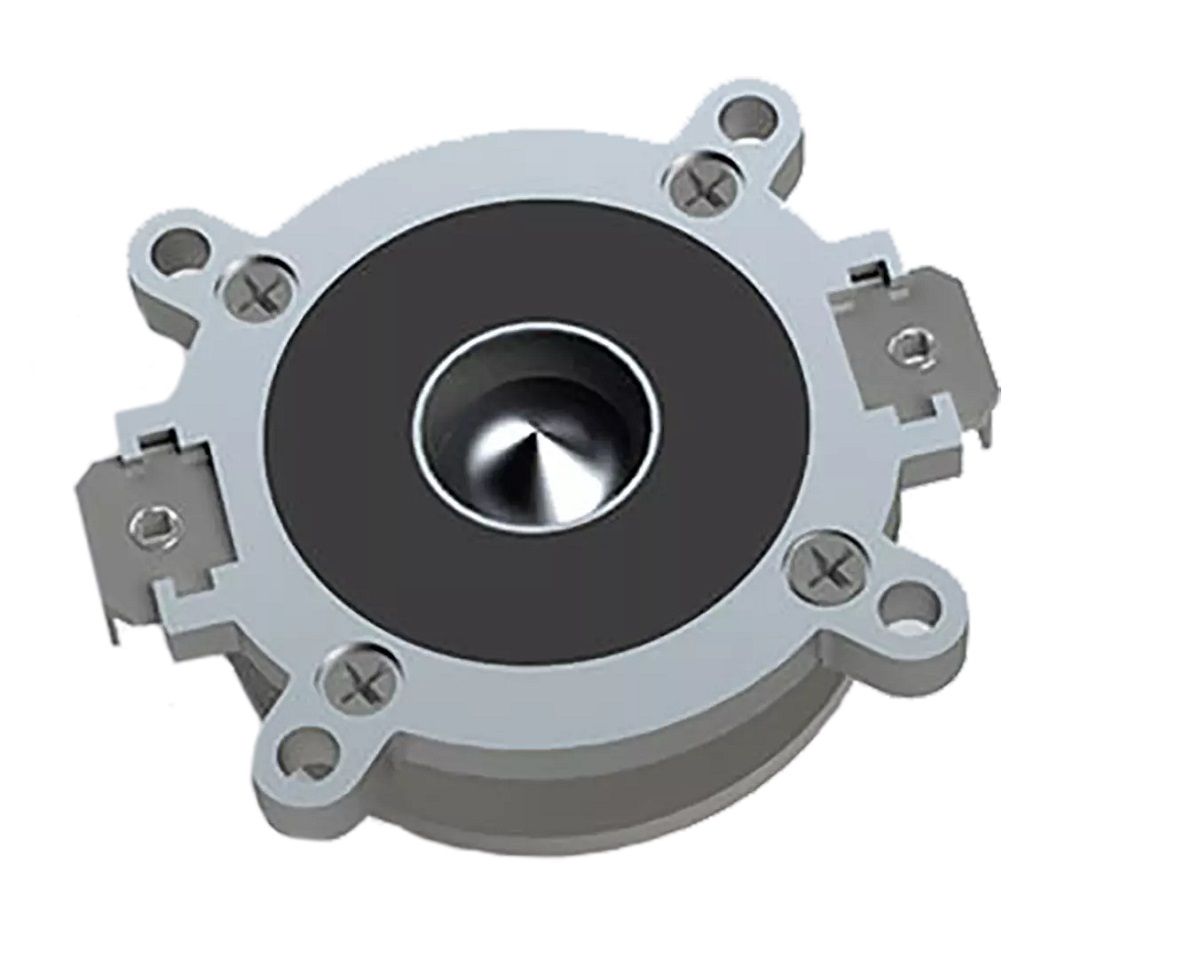

PATENTED 2410H-2 1-INCH (25MM) COMPRESSION DRIVER

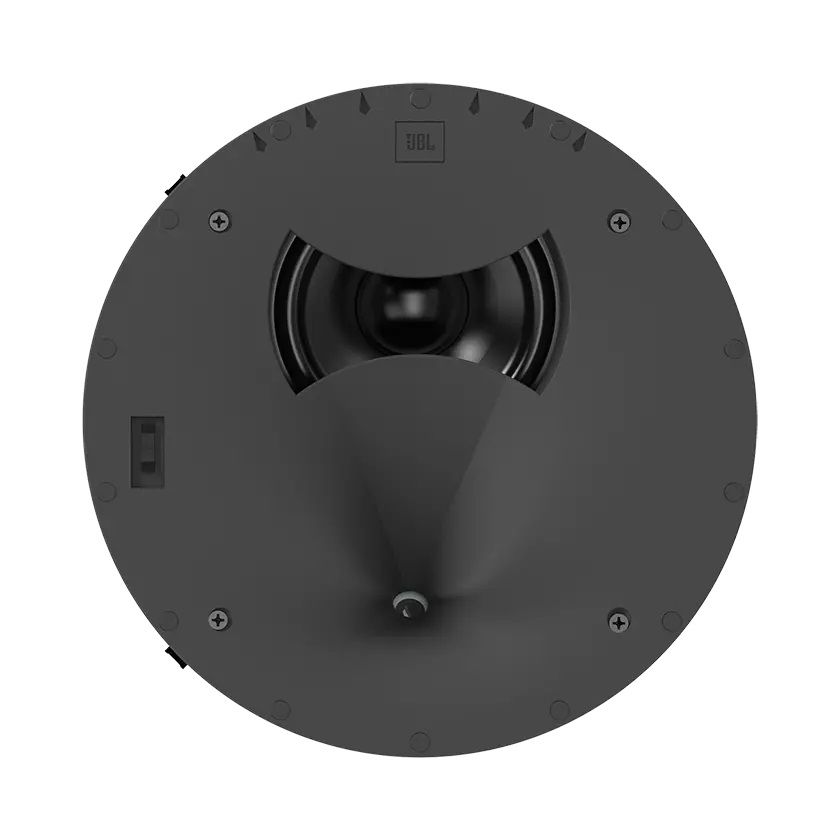

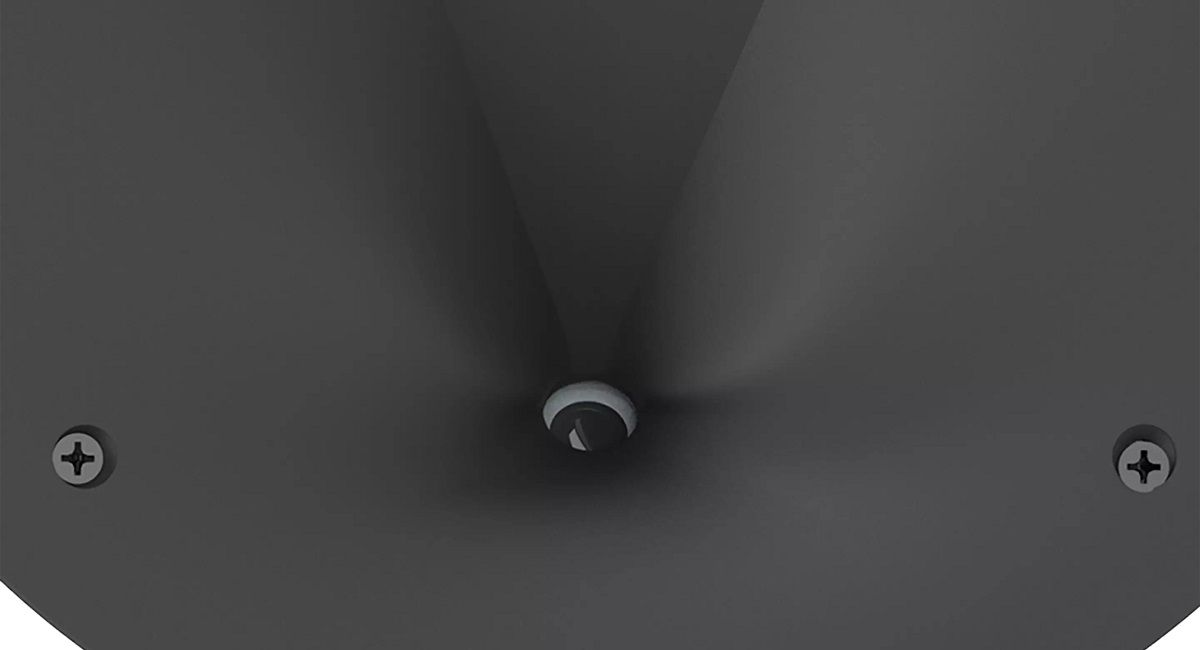

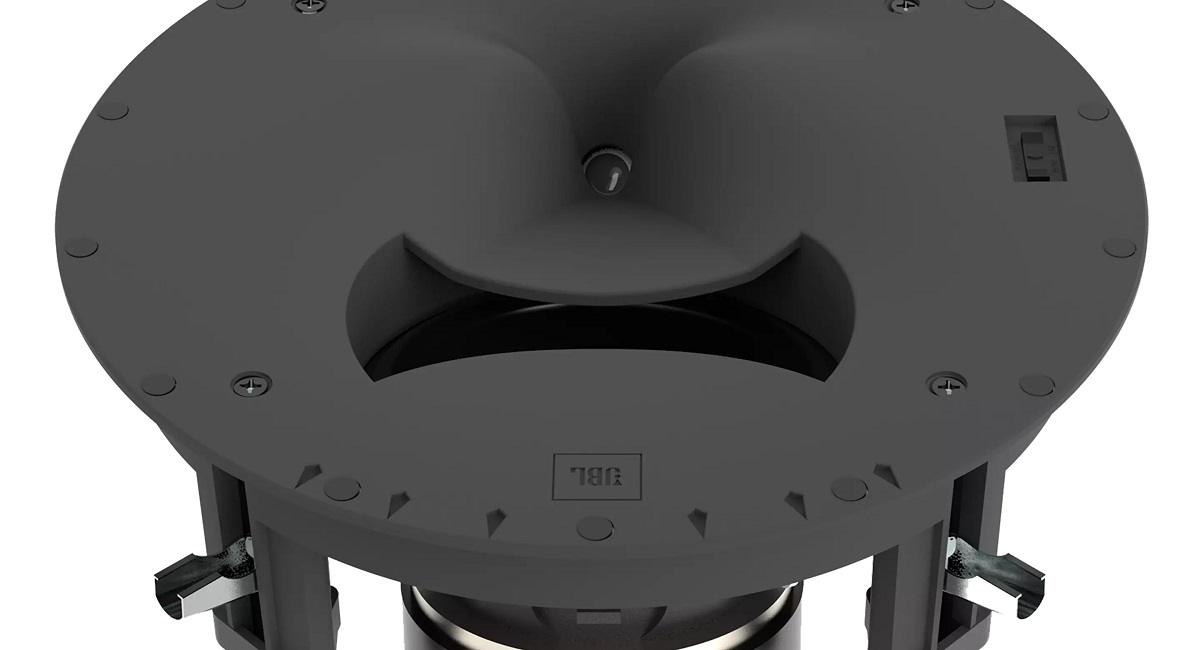

PATENTED HIGH-DEFINITION IMAGING HORN GEOMETRY
5.25-INCH (130MM) CAST-FRAME, ADVANCED ALUMINUM MATRIX CONE WOOFER
Specifications
| Type | 2-Way In-ceiling loudspeaker |
| Low Frequency Driver | 5.25” (130 mm) advanced Aluminum Matrix cone cast-frame woofer (JW130Al-4) |
| High Frequency Driver | 1" (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver |
| Recommended Amplifier Power | 25 - 100 W RMS |
| Impedance | 4 Ohm |
| Loudspeaker Sensitivity | 85 dB/2.83V/1m (2pi anechoic) |
| Frequency Response | 55 Hz - 30 kHz (-6 dB on-axis), 2pi anechoic |
| Crossover Frequency | 1.8 kHz |
| High Frequency Coverage Angle (-6dB) | 60° Vertical (Up |
| Enclosure Type | Open back |
| Controls | Boundary Proximity Control |
| Grill Dimensions (Square) | 10.77” (273 mm) x 10.77” (273 mm) |

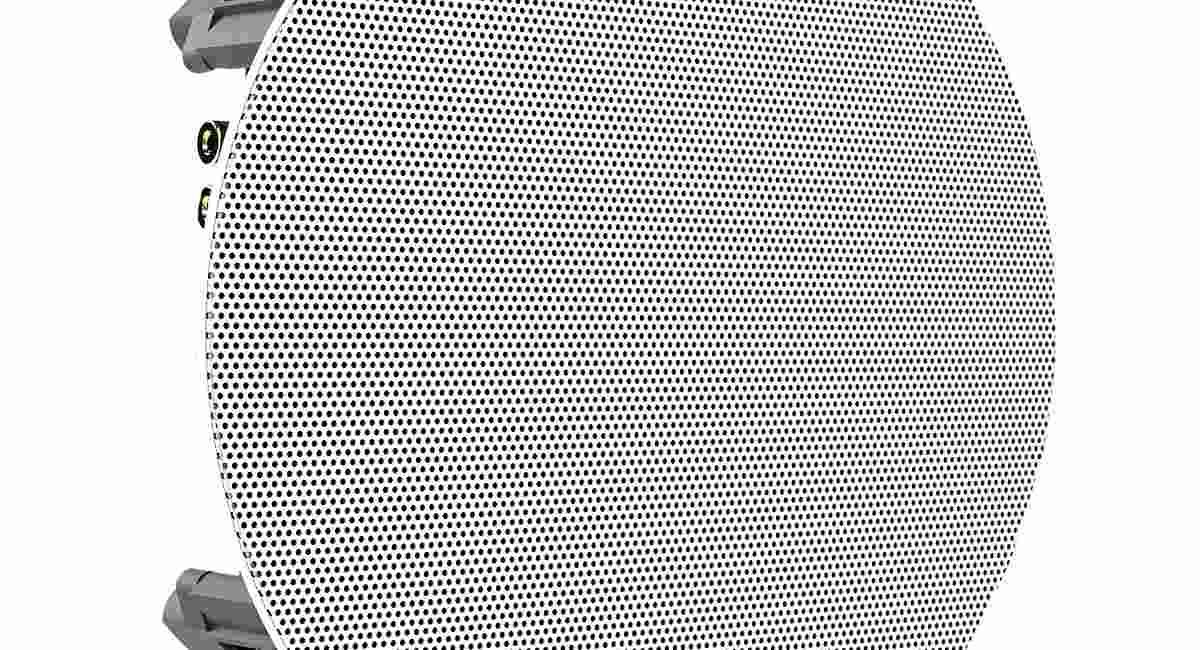

| Grille Dimensions (Round) | 10.77” (273 mm) Diameter |
| Product Dimensions (with grille) | 10.77” H x 10.77” W x 4.73” D (273 mm x 273 mm x 120 mm) |
| Cut-out Diameter | 9.72” (247 mm) |
| Accessory Rough-in Bracket | CB8 |
| Mounting Depth | 4.54” (115 mm) |

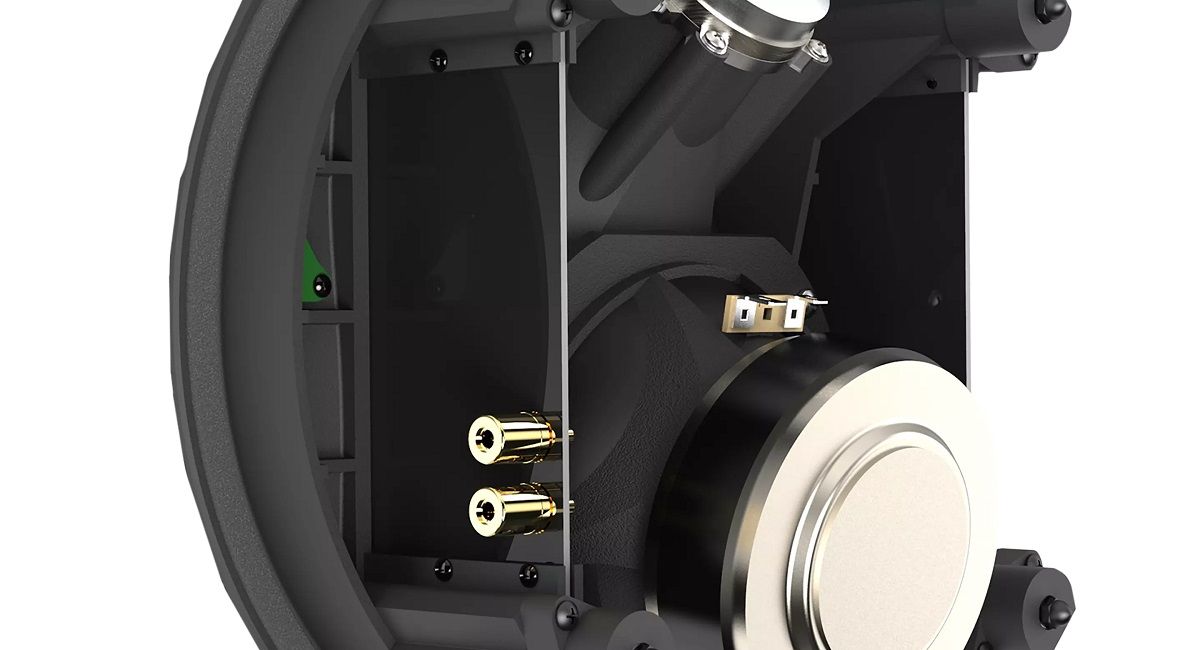

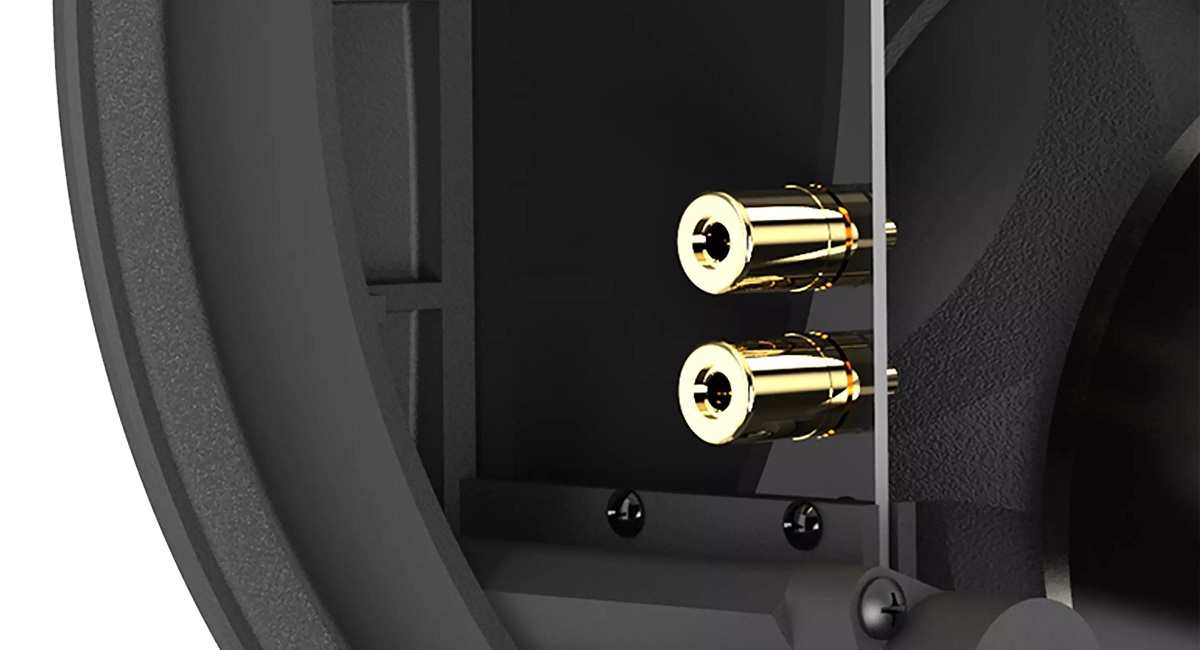

| Input Type | Gold-plated spring-loaded binding posts |
| Product Weight | 7.8 lb. (3.5 kg) |
| Shipping Weight | 10.6 lb. (4.8 kg) |
| Shipping Units of Measure | Each |
