SCL-7

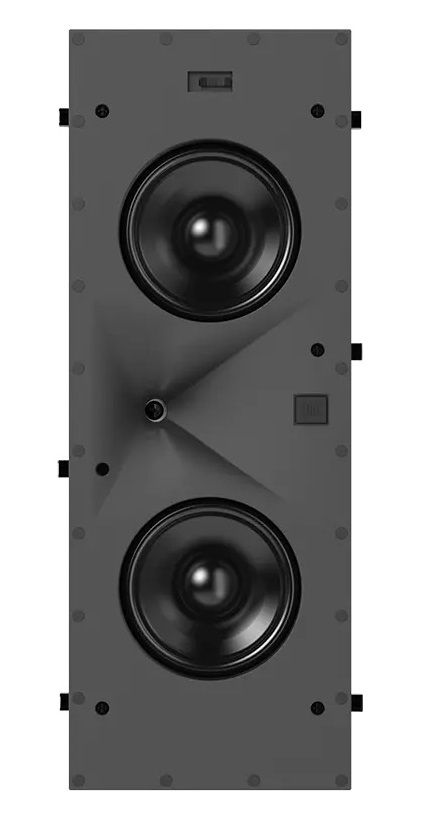

The SCL-7 is the smallest traditional in-wall model in the JBL Synthesis Custom Loudspeaker (SCL) series.
It is designed for use as a width or surround channel or as an LCR in smaller systems.
The SCL-7 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn.

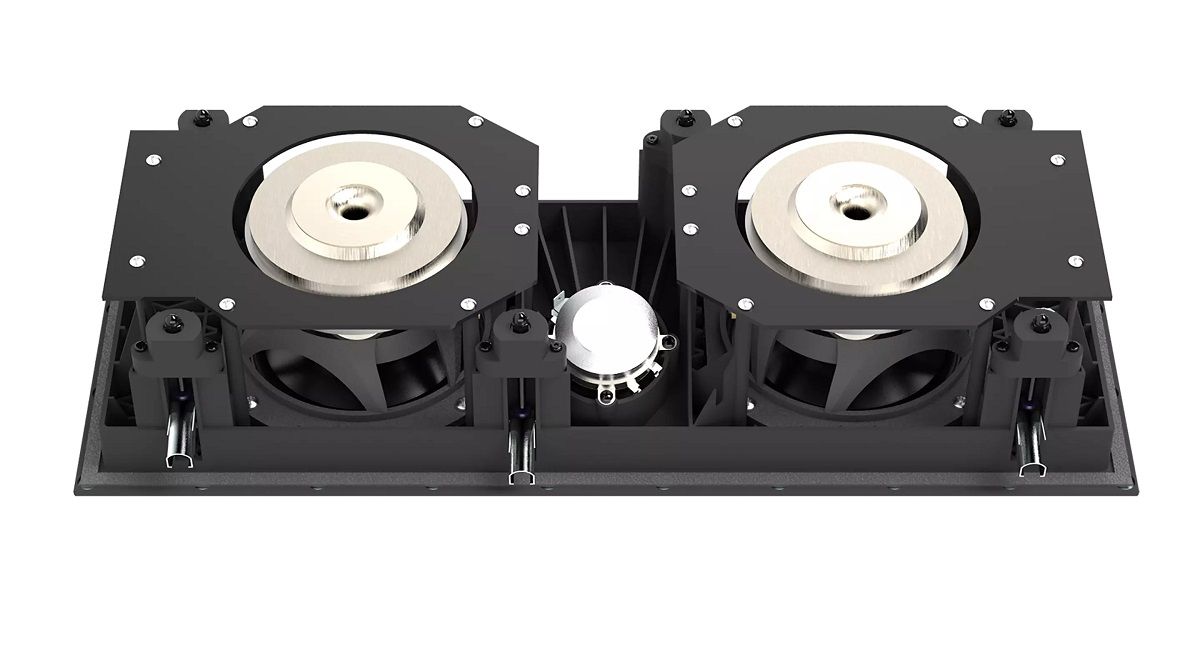

This patented horn design is integrated with two 5.25-inch (130 mm) Advanced Aluminum Matrix cone cast-frame woofers into a precision molded baffle assembly.
The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 45 degrees from the listening position. The SCL-7 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution. It is ideal for use in small to medium rooms.

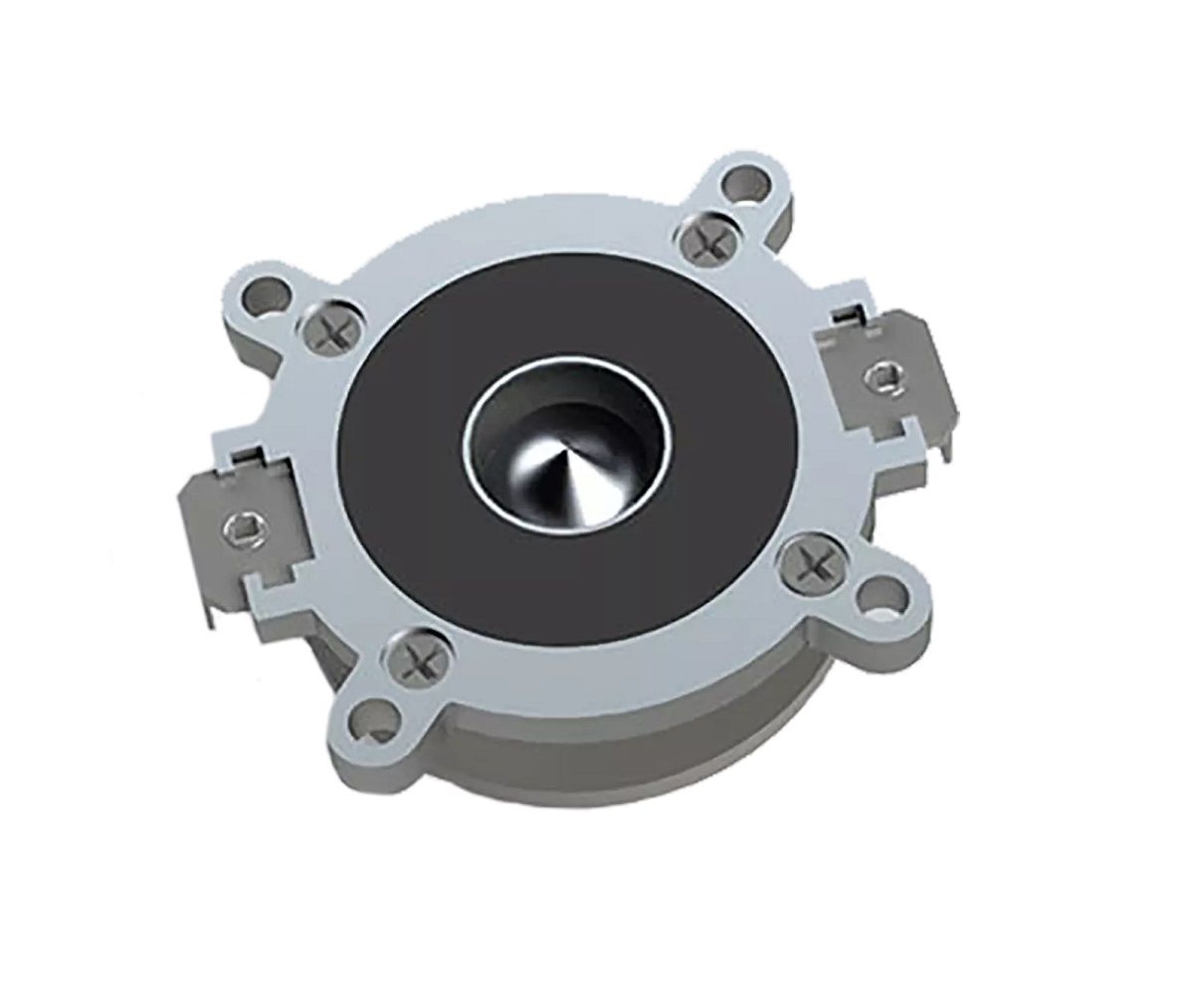

PATENTED 2410H-2 1-INCH (25MM) COMPRESSION DRIVER

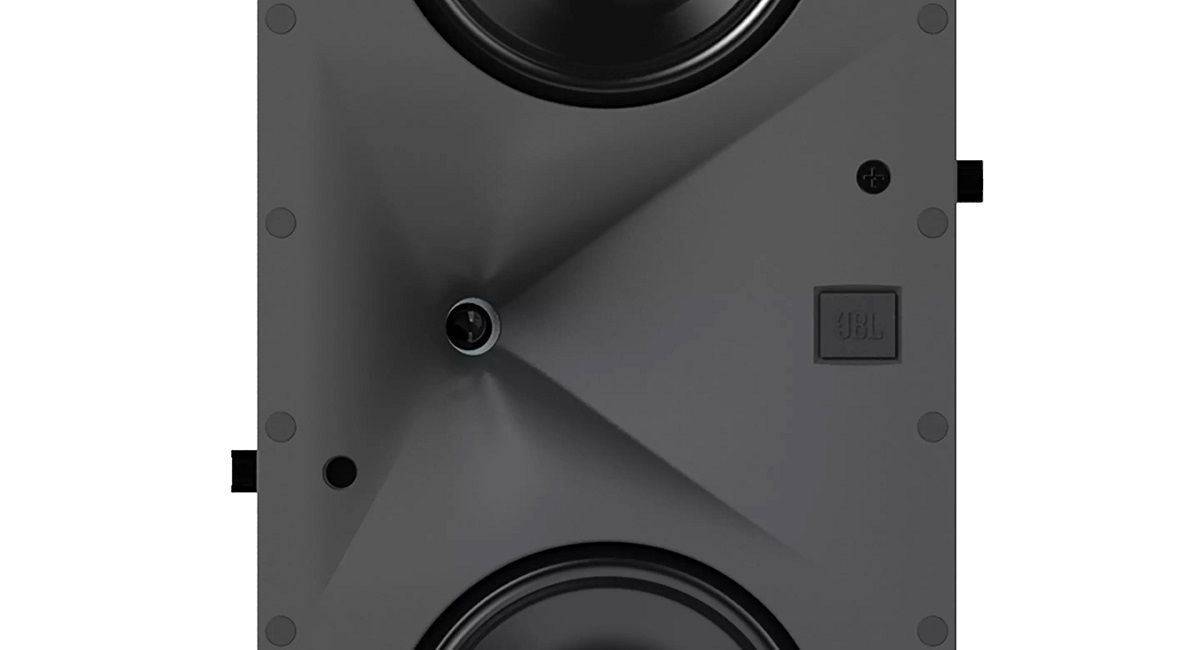

PATENTED HIGH-DEFINITION IMAGING HORN GEOMETRY

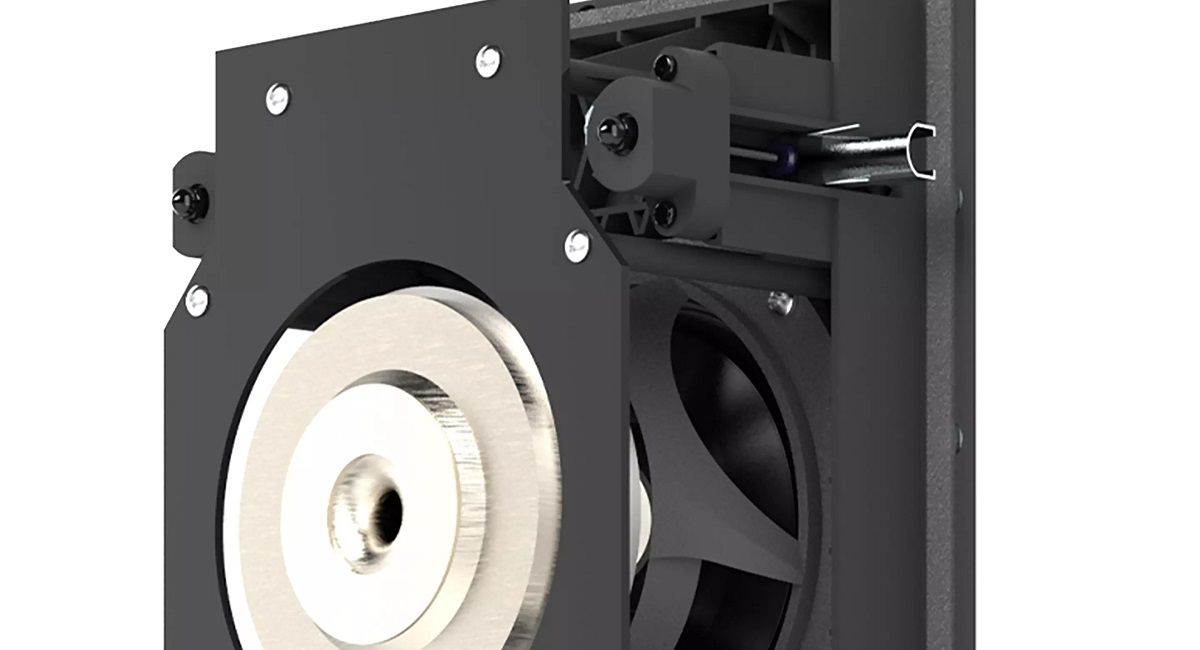

DUAL 5.25-INCH (130MM) CAST-FRAME, ADVANCED ALUMINUM MATRIX CONE WOOFERS
Specifications
| Type | 2-Way In-wall loudspeaker |
| Low Frequency Driver | Two 5.25” (130 mm) advanced Aluminum Matrix cone cast-frame woofers (JW13Al-4) |
| High Frequency Driver | 1" (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver |
| Recommended Amplifier Power | 25 – 150W RMS |
| Impedance | 4 Ohm |
| Loudspeaker Sensitivity | 88 dB/2.83V/1m (2pi anechoic) |
| Frequency Response | 55Hz - 30kHz (-6 dB on-axis), 2pi anechoic |
| Crossover Frequency | 2.0 kHz |
| High Frequency Coverage Angle (-6 dB) | 60° Vertical, 90° Horizontal (Left |
| Enclosure Type | Open back |
| Controls | Boundary Proximity Control |

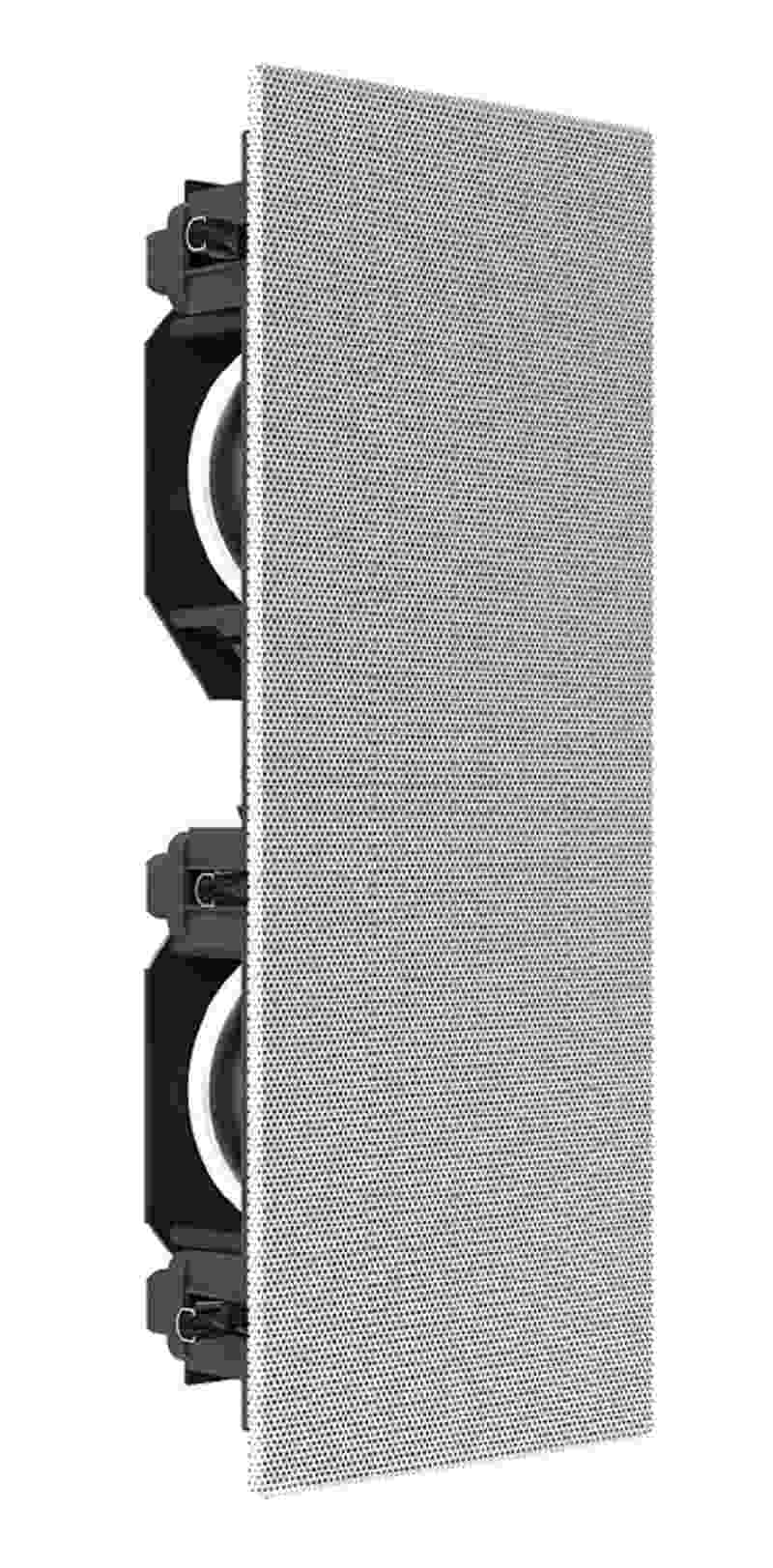

| Grille Dimensions | 7.32” (186 mm) x 19.15” (486 mm) |
| Product Dimensions (with grille) | 7.32” (186 mm) x 19.15” (486 mm) x 3.88” (99 mm) |
| Cut-out Dimensions | 6.18” (157 mm) x 18.03” (458 mm) |
| Rough-in Bracket | WB52 |
| Mounting Depth | 3.64” (93 mm) |

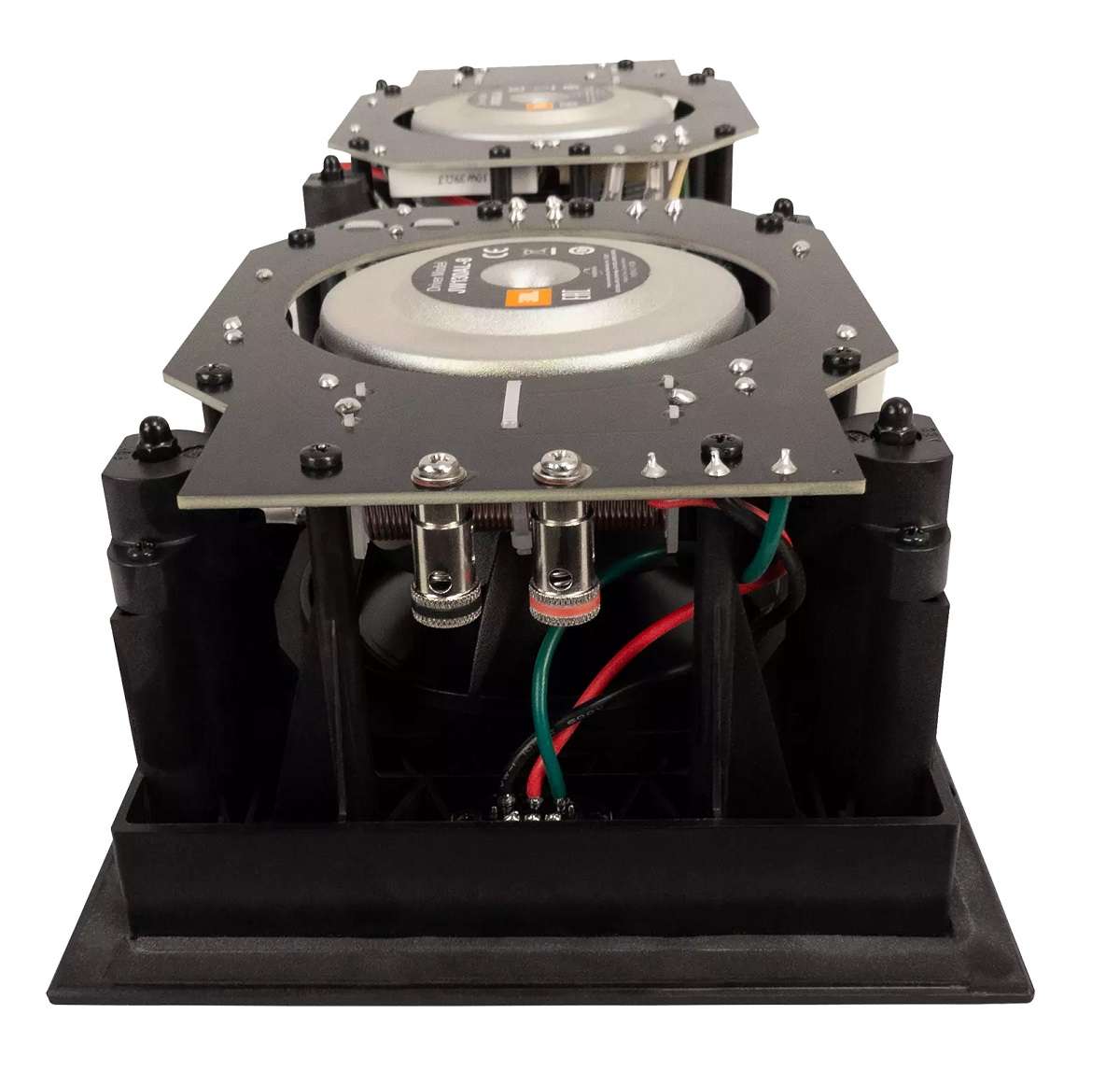

| Input Type | Gold-plated spring-loaded binding posts |
| Product Weight | 12.6 lbs (5.72 kg) |
| Shipping Weight | 14.6 lbs (6.62 kg) |
| Shipping Units of Measure | Each |
