SCL-6

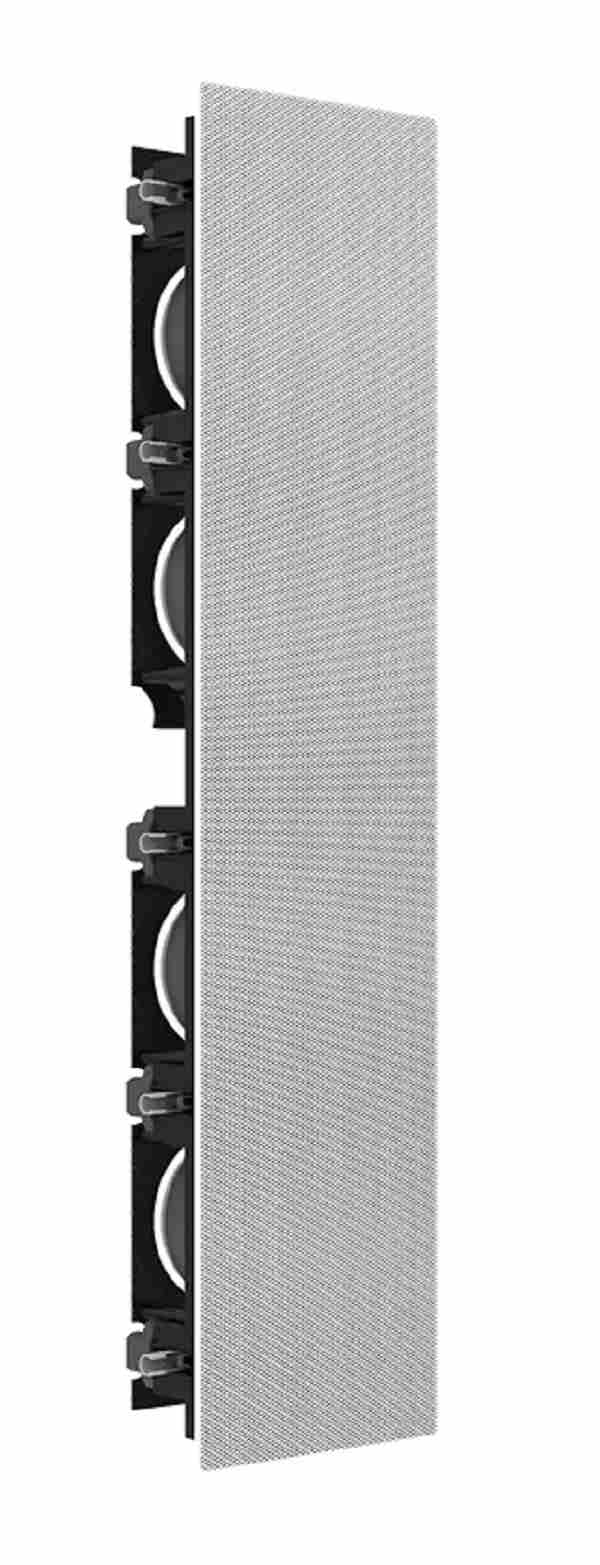

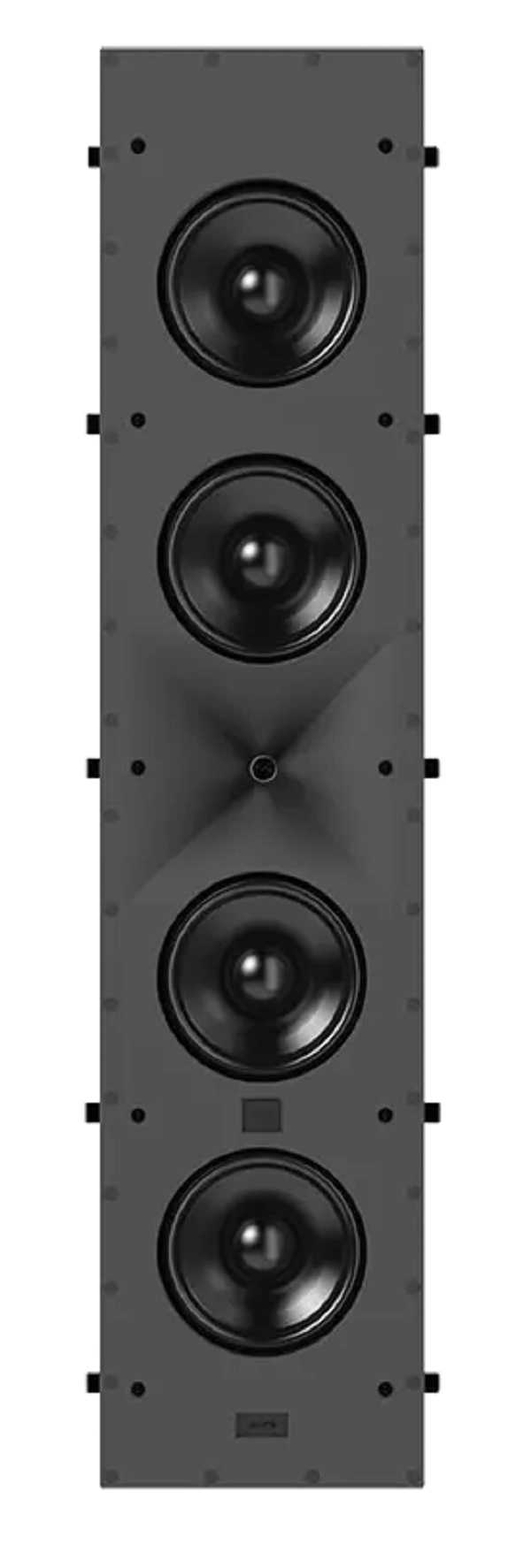

The SCL-6 is the largest traditional in-wall model in the JBL Synthesis Custom Loudspeaker (SCL) series.
It is designed for use as an LCR or surround channel in a variety of applications.

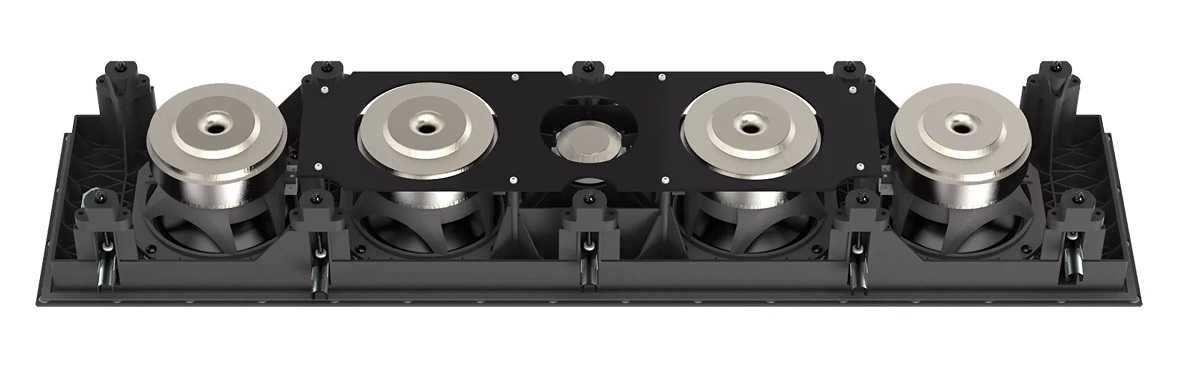

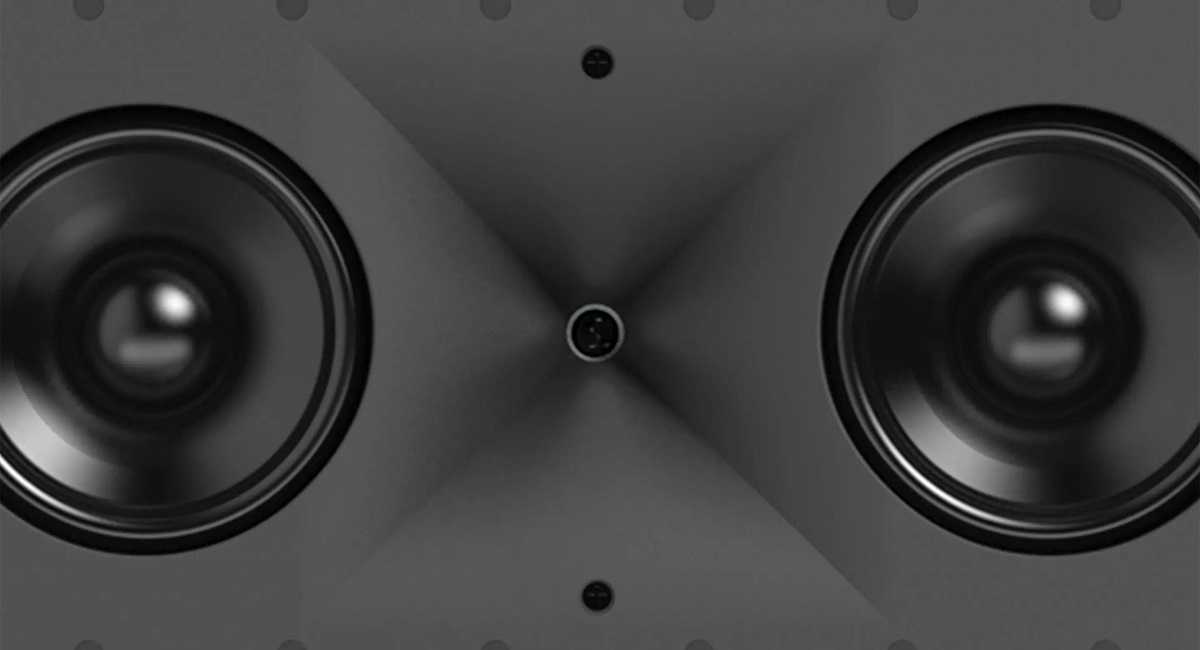

The SCL-6 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to a High Definition Imaging (HDI™) horn. This patented horn design is integrated with four 5.25-inch (130 mm) Advanced Aluminum Matrix cone cast-frame woofers into a precision molded baffle assembly.
The configuration yields incredibly smooth and consistent performance for in-wall LCR or surround applications. The SCL-6 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution. It is ideal for use in small, medium, or large rooms.

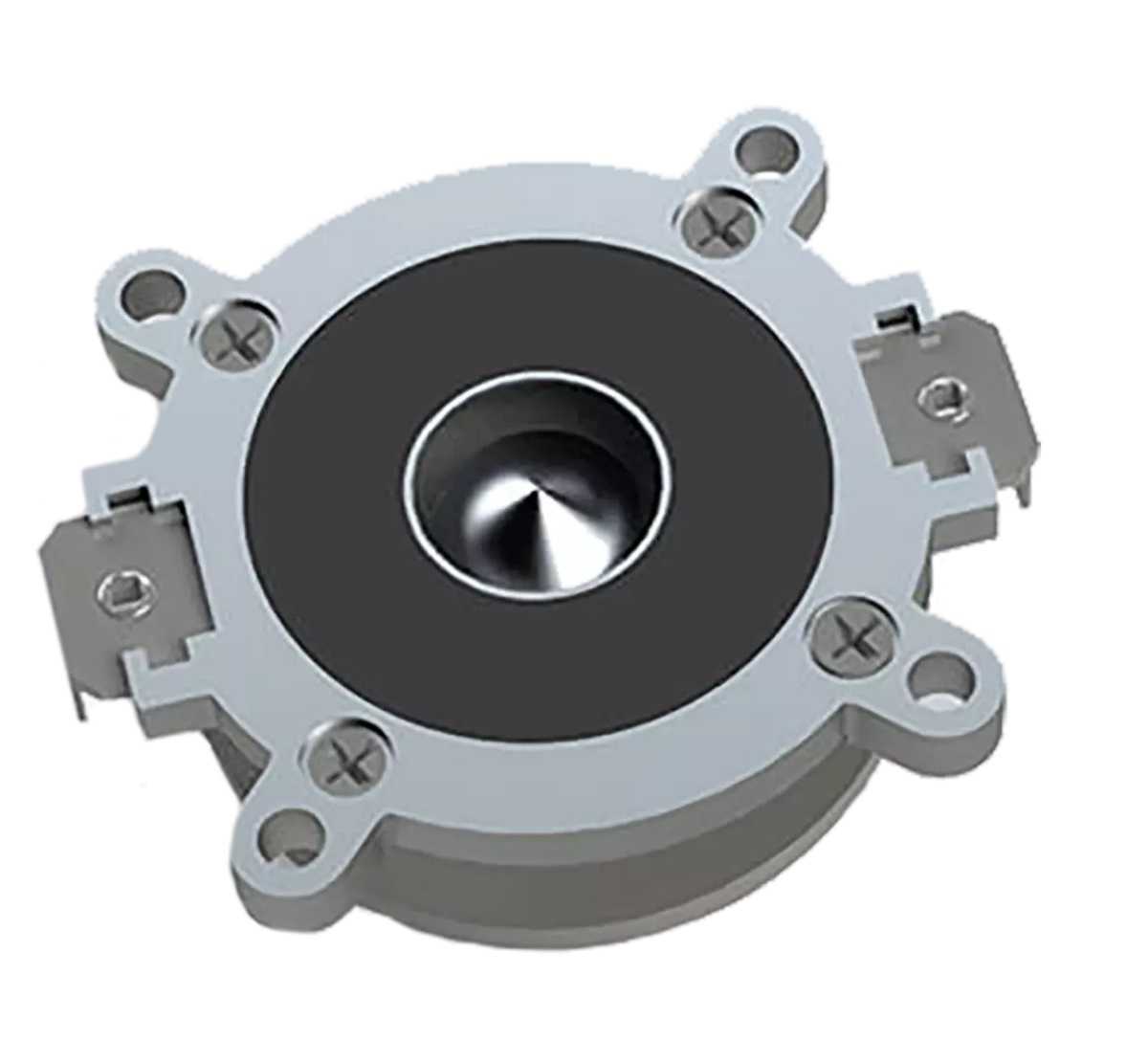

PATENTED 2410H-2 1-INCH (25MM) COMPRESSION DRIVER
PATENTED HIGH-DEFINITION IMAGING HORN GEOMETRY
QUADRUPLE 5.25-INCH (130MM) CAST-FRAME, ADVANCED ALUMINUM MATRIX CONE WOOFERS
Specifications
| Type | 2.5-Way In-wall loudspeaker |
| Low Frequency Driver | Four 5.25” (130 mm) advanced Aluminum Matrix cone cast-frame woofers (JW13Al-4) |
| High Frequency Driver | 1" (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver |
| Recommended Amplifier Power | 25 – 200W RMS |
| Impedance | 4 Ohm |
| Loudspeaker Sensitivity | 91 dB/2.83V/1m (2pi anechoic) |
| Frequency Response | 50Hz - 30kHz (-6 dB on-axis), 2pi anechoic |
| Crossover Frequency | 1.8 kHz |
| High Frequency Coverage Angle (-6 dB) | 80° Vertical / 80° Horizontal, from 2 kHz to 17 kHz. |
| Enclosure Type | Open back |
| Controls | Boundary Proximity Control |
| Grille Dimensions | 7.29” (185 mm) x 31.32” (796 mm) |
| Product Dimensions (with grille) | 7.29” (185 mm) x 31.32” (796 mm) x 3.82” (97.1 mm) |
| Cut-out Dimensions | 6.18” (157 mm) x 30.18” (766 mm) |
| Rough-in Bracket | WB54 |
| Mounting Depth | 3.63” (92 mm) |
| Input Type | Gold-plated spring-loaded binding posts |
| Product Weight | 22.2 lbs (10.07 kg) |
| Shipping Weight | 25.6 lbs (11.61 kg) |
| Shipping Units of Measure | Each |
