SCL-5

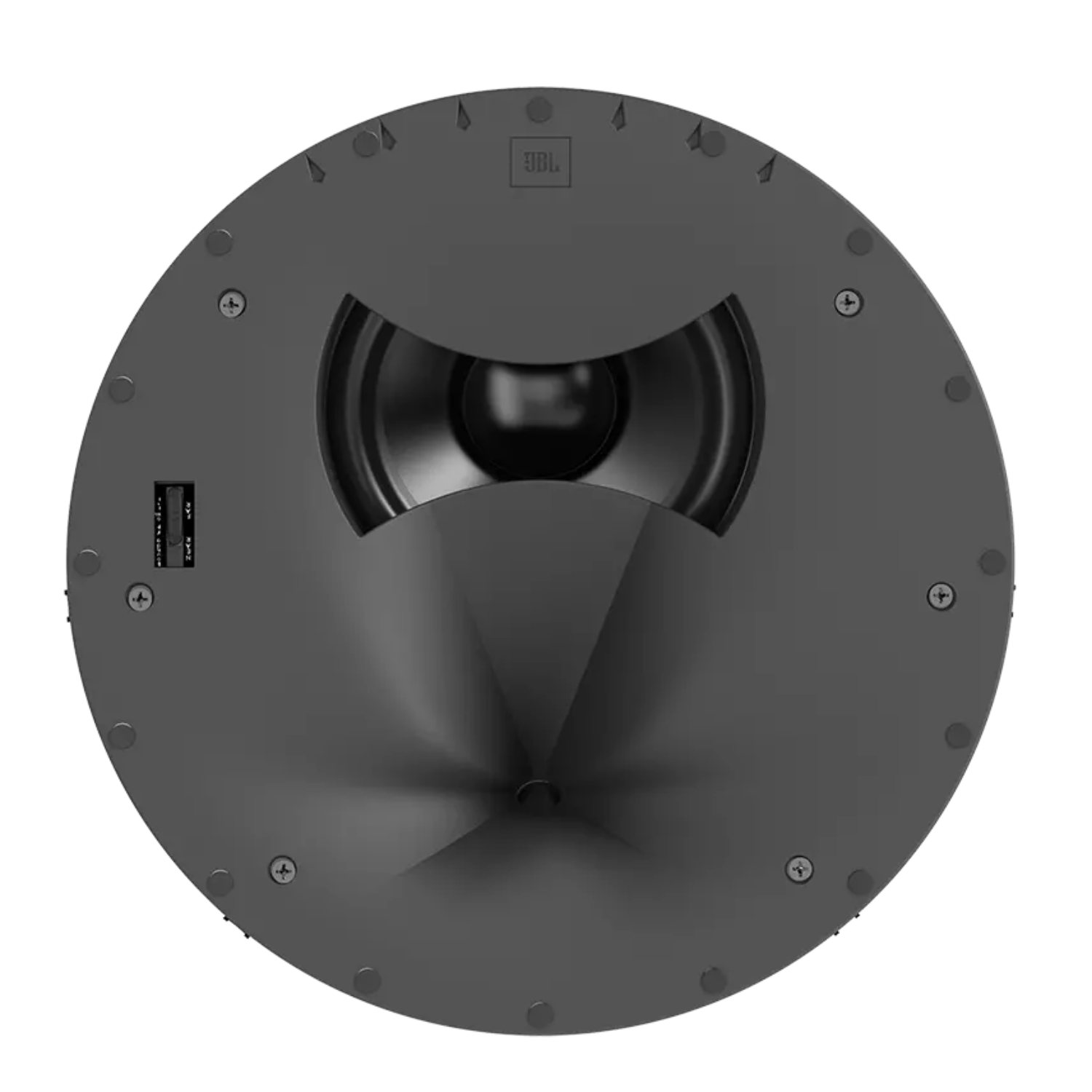

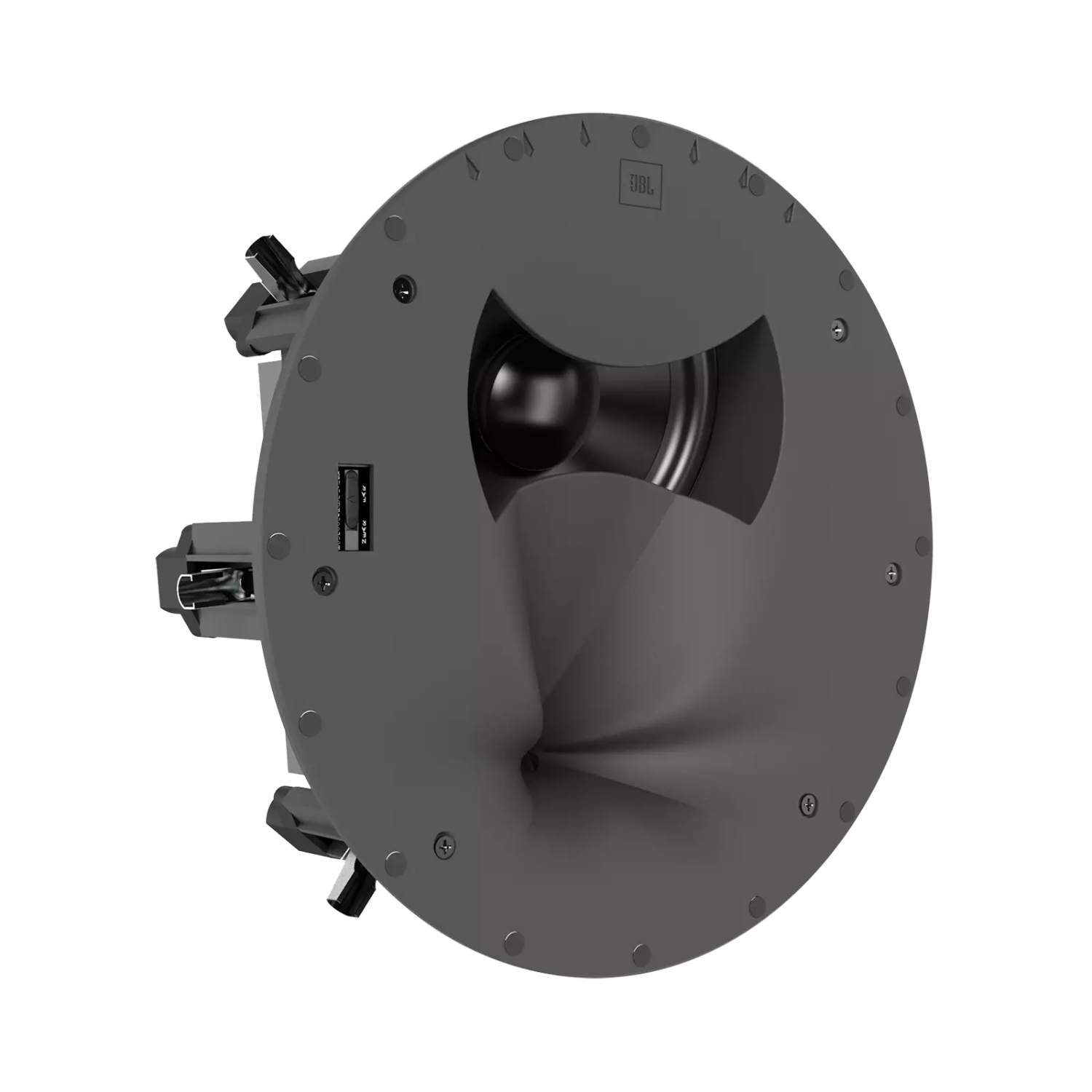

The SCL-5 is the highest performance traditional round in-ceiling model in the JBL Synthesis Custom Loudspeaker (SCL) series.
It is designed for use as a height channel or in-ceiling LCR or surround channel loudspeaker.
The SCL-5 features JBL’s patented 2409H 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn. This patented horn design is integrated with an angled 7-inch (180mm) Advanced Aluminum Matrix cone cast-frame woofer operating behind an acoustic aperture waveguide.
The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 60 degrees from the listening position.
The SCL-5 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution. It is ideal for use in medium to large rooms.
Features:
- 2-way in-ceiling loudspeaker system designed for off-axis listening as height, in-ceiling LCR and surround channels
- 1-inch 2409H compression driver tweeter mated to a JBL patented offset
- High-Definition Imaging (HDI) horn assembly
- 7-inch (180mm) Advanced Aluminum Matrix cone, cast frame woofer with acoustic aperture waveguide baffle
- Patented Cat Claw installation mechanism

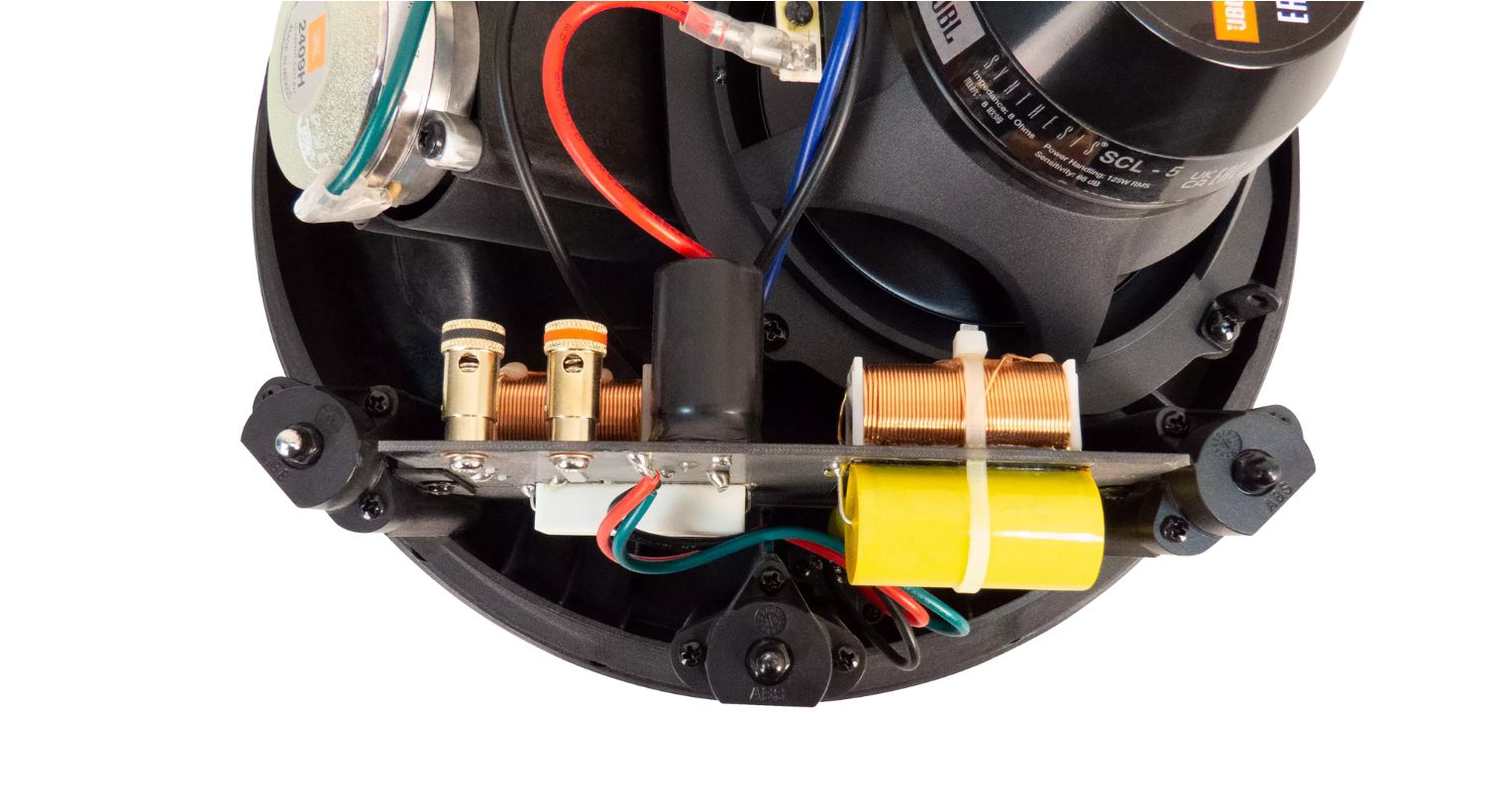

- Gold plated, spring-loaded binding posts
- Includes paintable round and square zero-bezel, magnetically attached grilles
- Compatible with CB10 pre-construction bracket

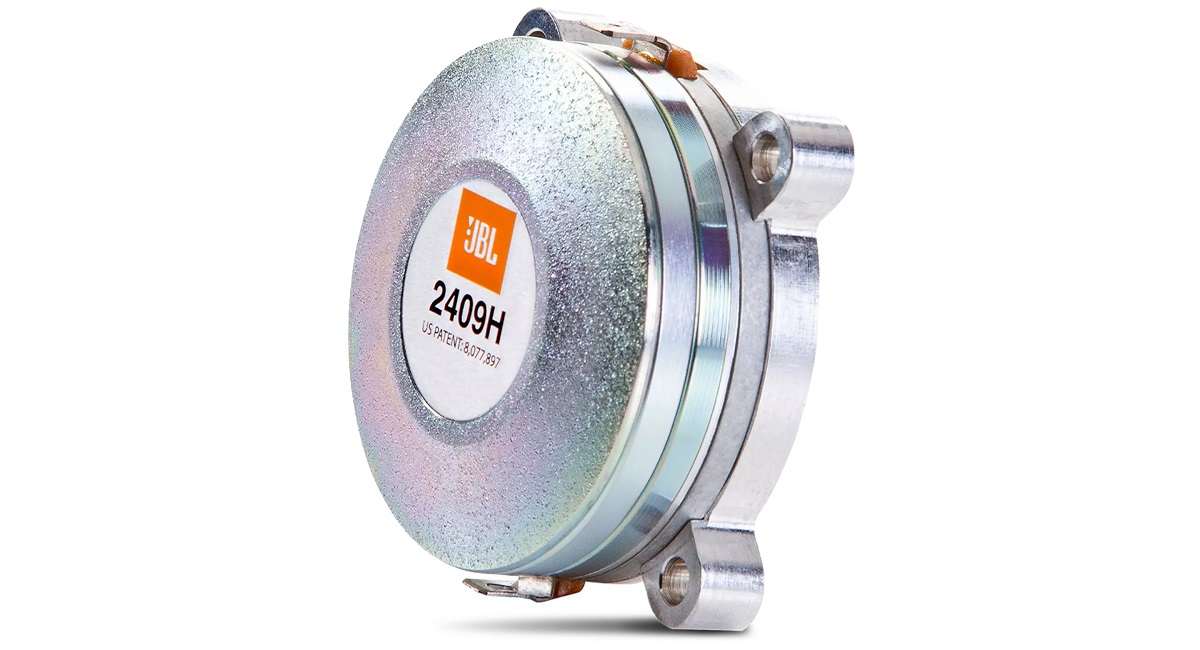

PATENTED 2409H 1-INCH (25MM) COMPRESSION DRIVER

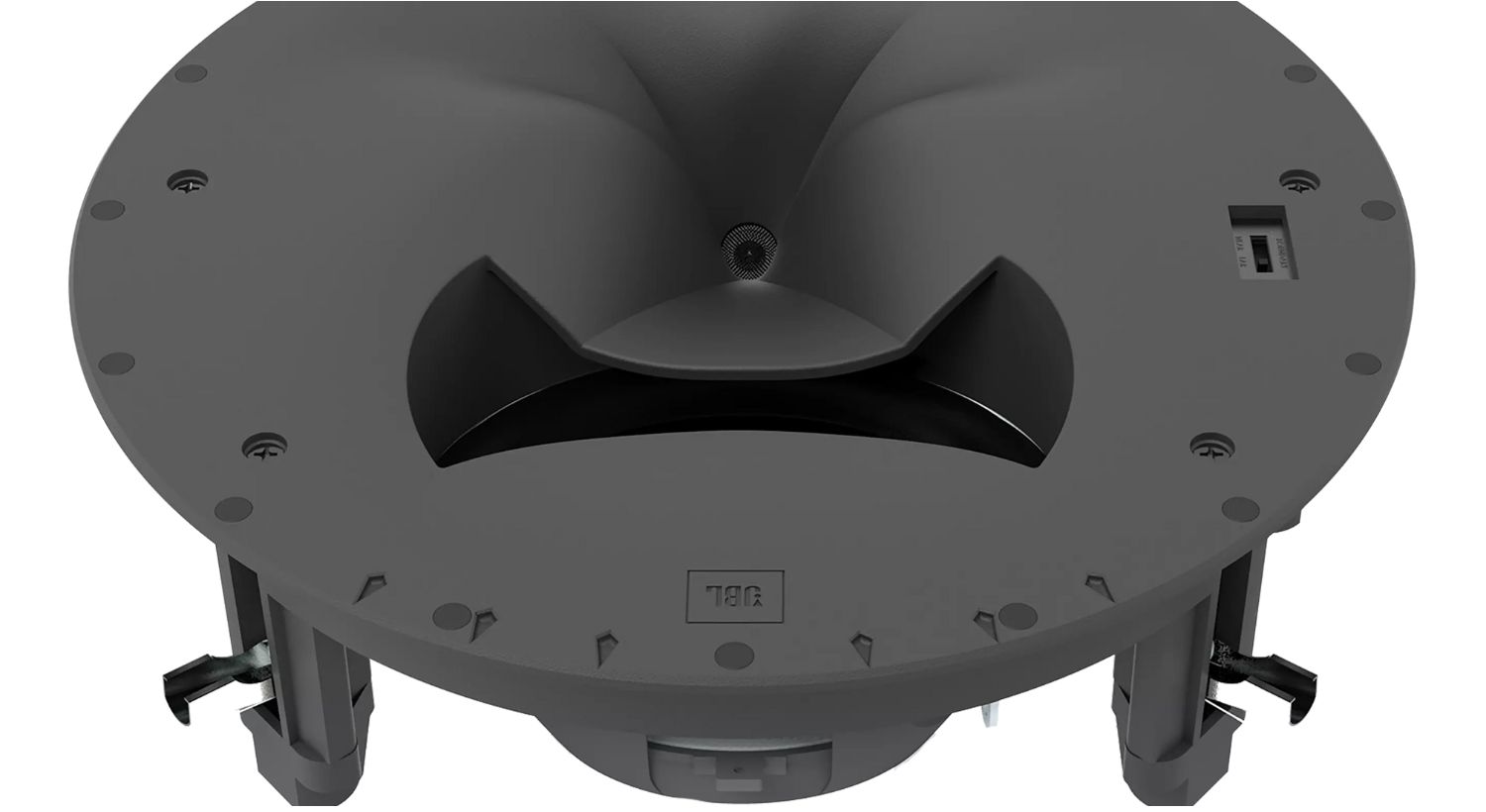

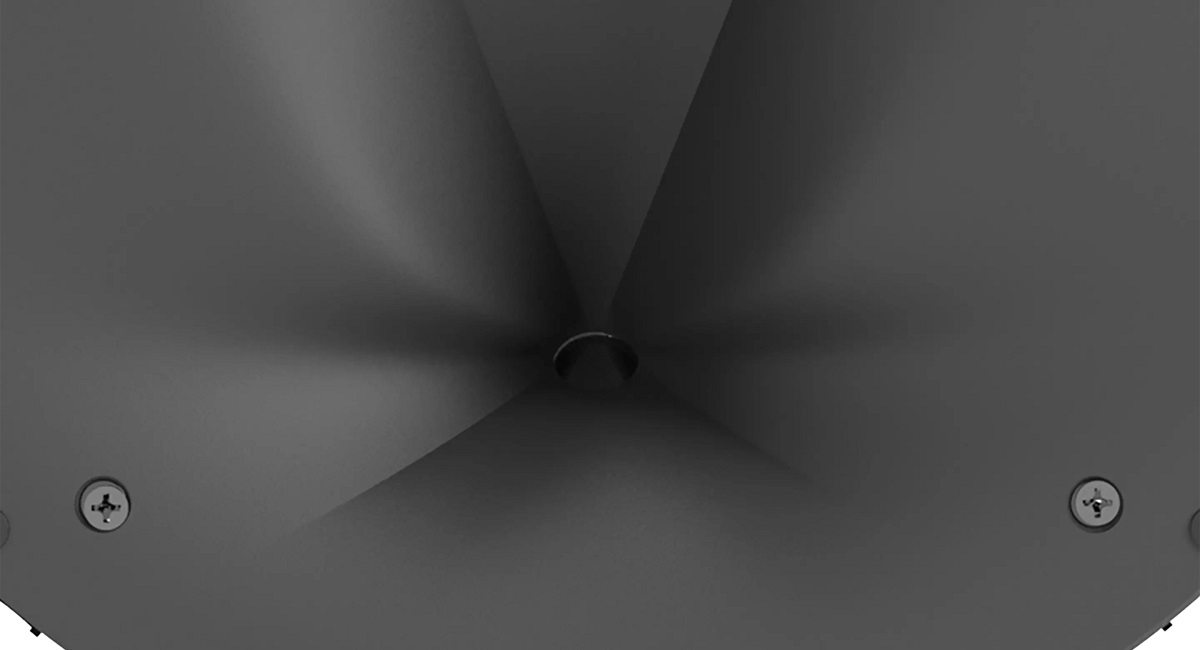

PATENTED HIGH-DEFINITION IMAGING HORN GEOMETRY

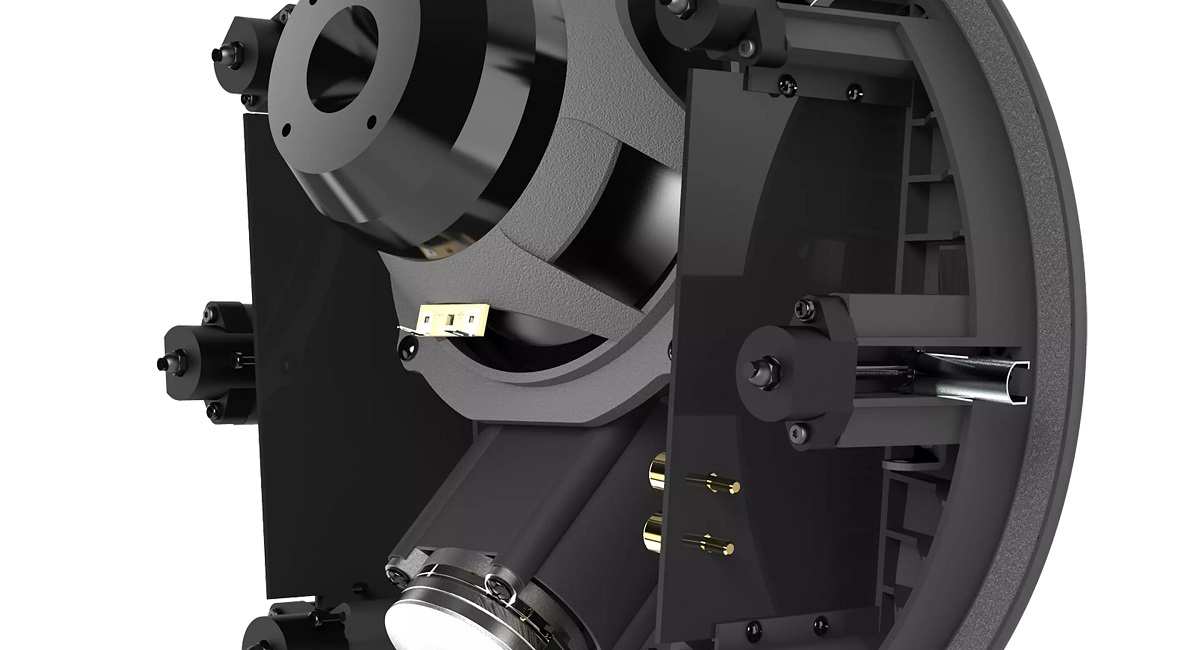

7-INCH (180MM) CAST-FRAME, ADVANCED ALUMINUM MATRIX CONE WOOFER
Specifications
| Type | 2-Way In-ceiling loudspeaker |

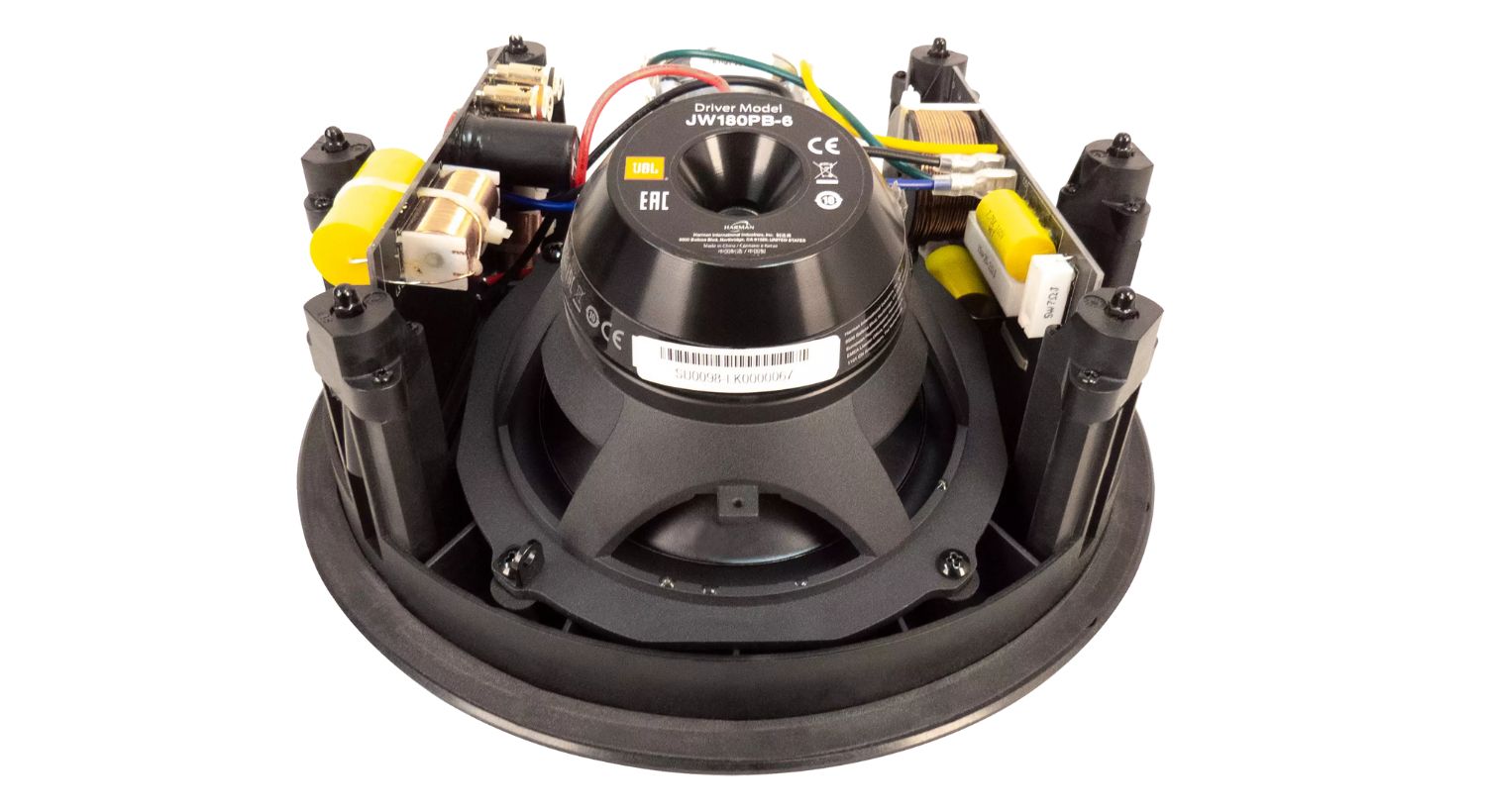

| Low Frequency Driver | 7” (180 mm) advanced Aluminum Matrix cone cast-frame woofer (JW180PB-6) |
| High Frequency Driver | 1" (25 mm) 2409H Teonex annular ring-diaphragm compression driver |
| Recommended Amplifier Power | 25 – 125W RMS |
| Impedance | 6 Ohm |
| Loudspeaker Sensitivity | 86 dB/2.83V/1m (2pi anechoic) |
| Frequency Response | 48Hz - 32kHz (-6 dB on-axis), 2pi anechoic |
| Crossover Frequency | 1575 Hz |
| High Frequency Coverage Angle (-6 dB) | 60-degree Vertical (Up |
| Enclosure Type | Open back |
| Controls | Boundary Proximity Control |
| Grille Dimensions | Round - 12.5" (318 mm) diam. |
| Grille Dimensions | Square - 12.5" (318 mm) x 12.5" (318 mm) |
| Product Dimensions (with grille) | 12.5" H x 12.5" W x 5.98" D (318 mm x 318 mm x 151.9 mm) |
| Cut-out Diameter | 11.2" (285 mm) |
| Accessory Rough-in Bracket | CB10 |
| Mounting Depth | 5.58" (141.8 mm) |
| Input Type | Gold-plated spring-loaded binding posts |
| Product Weight | 8.6 lb. (3.9 kg), 9.2 lb. (4.2 kg) with one grille |
| Shipping Weight | 12.5 lb. (5.7 kg) |
| Shipping Units of Measur | eEach |
