Two-way 5.25-inch (130mm) In-Wall Loudspeaker The SCL-3 is a custom in-wall loudspeaker designed primarily for use as an LCR behind projection screens or as a height channel in ceiling applications. It features JBL's patented 2409H 1-inch (25mm) compression driver mated to a High-Definition Imaging (HDI™) horn.
Liên hệ giá tốt nhất
SCL-3

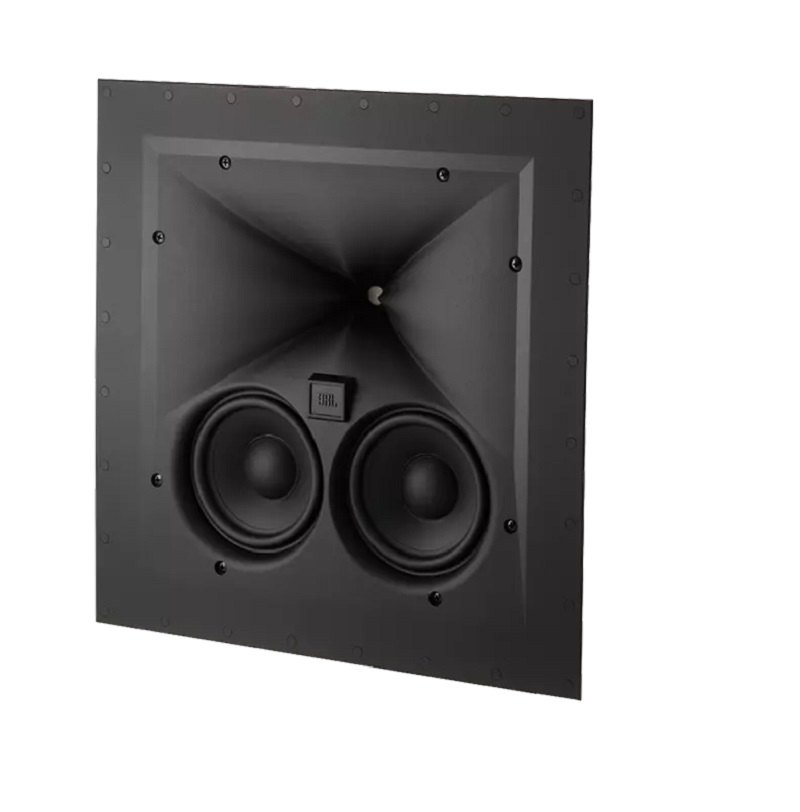

The SCL-3 is a custom in-wall loudspeaker designed primarily for use as an LCR behind projection screens or as a height channel in ceiling applications.

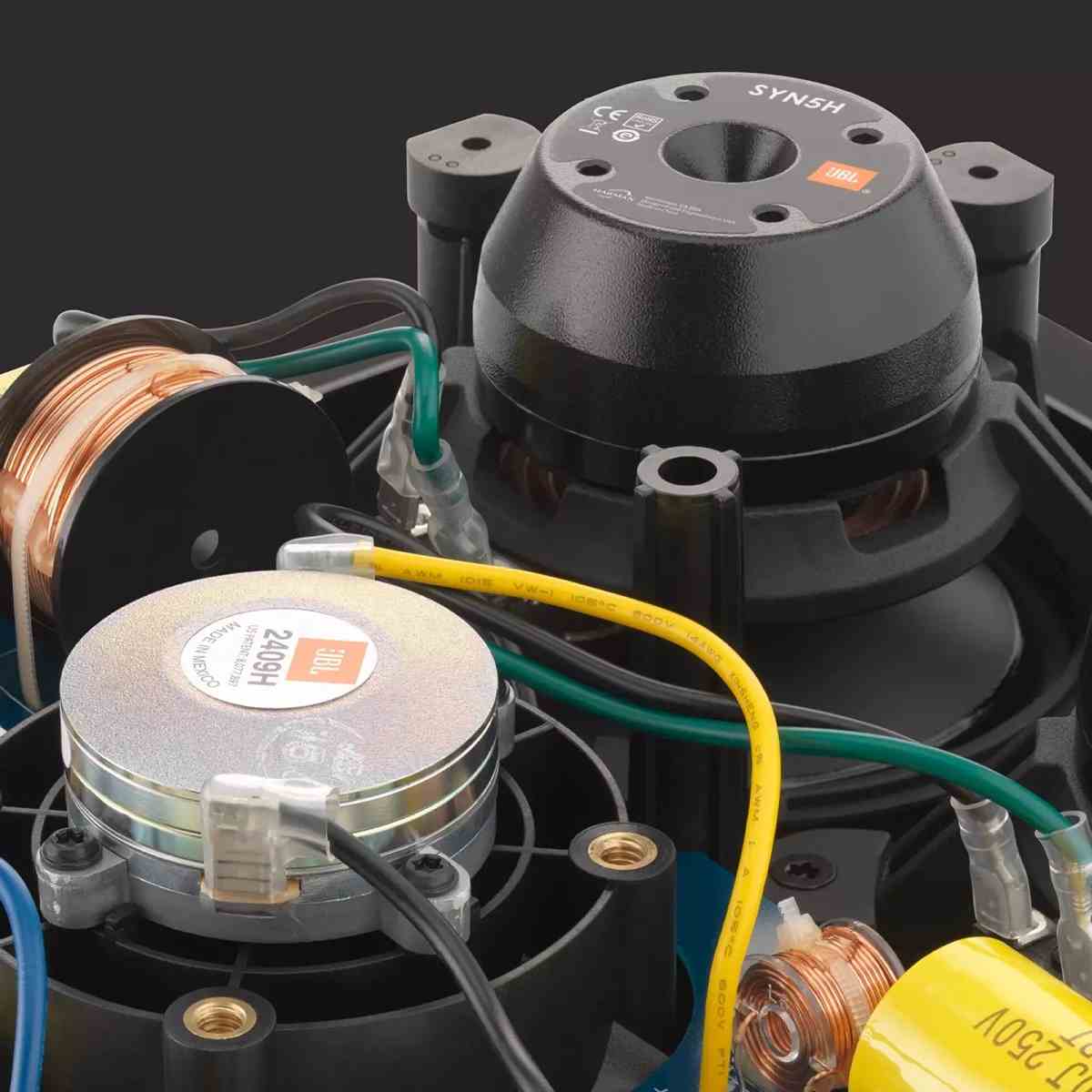

It features JBL's patented 2409H 1-inch (25mm) compression driver mated to a High-Definition Imaging (HDI™) horn.
Dual 5.25-inch (130mm) Advanced Aluminum Matrix cone cast-frame woofers provide detailed and dynamic response with low distortion.

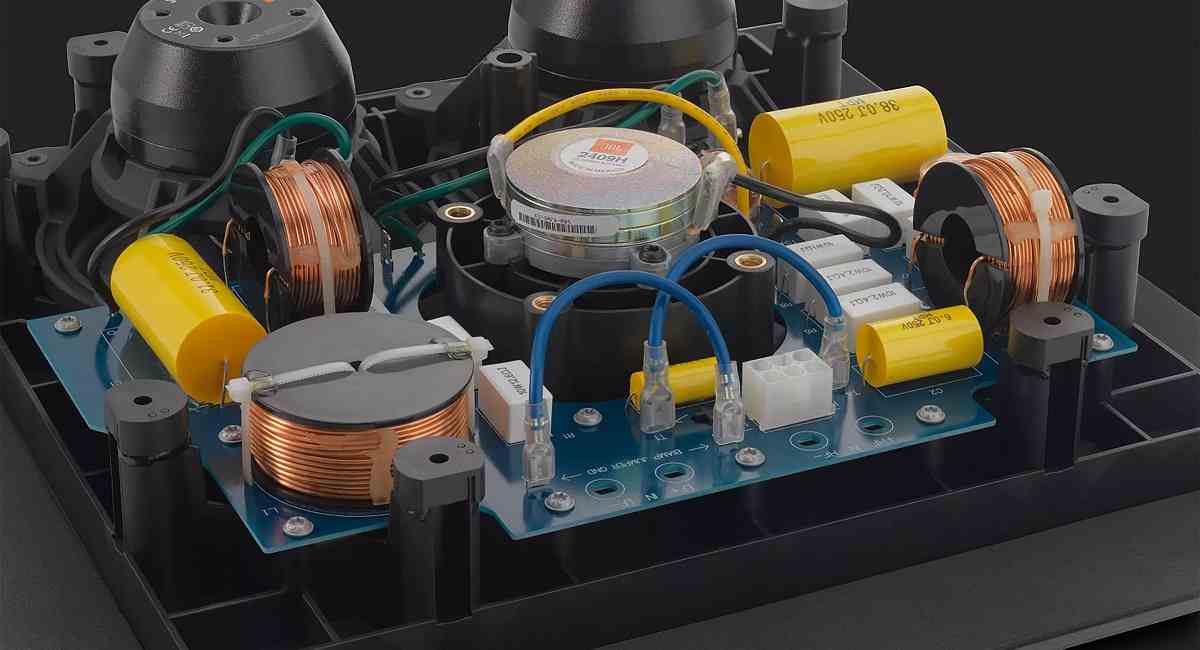

The integrated MDF enclosure is designed for installation in standard 2x6 wood frame construction, and Internal connections allow for bi-wiring or bi-amplification in advanced installations. The SCL-3 is ideal for use in medium to large rooms.

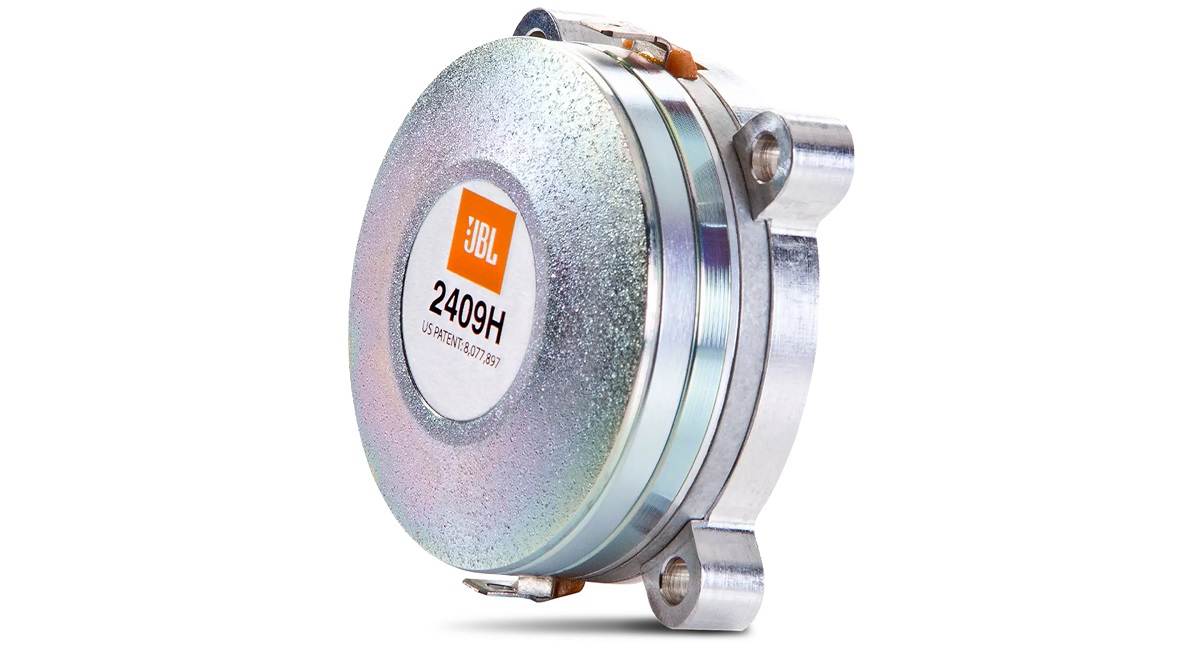

PATENTED 2409H 1-INCH (25MM) COMPRESSION DRIVER
DUAL 5.25-INCH (130MM) CAST-FRAME, ADVANCED ALUMINUM MATRIX CONE WOOFERS
Specifications
| Speaker Type | Two-way In-Wall Loudspeaker |
| Low Frequency Transducer | Dual 5-¼” (130mm) cast-frame, advanced aluminum matrix cone woofers |
| Mid/High Frequency Transducer | D2-derived 1" (25mm) 2409H annular ring, Teonex® diaphragm compression driver |
| Maximum Recommended Amplifier Power | 200 watts RMS |
| Frequency Response (-6dB on-axis) | 65 Hz – 33KHz |
| Coverage area (-6dB @ 20 KHz) | 90 x 60 deg, (-6dB @ 10 KHz) |
| Sensitivity (2.83V@1m) | 91dB |
| Nominal Impedance | 6 Ohm |
| Crossover Frequencies | 1.3 KHz |
| Enclosure type | Sealed In-Wall Mount with included back box |

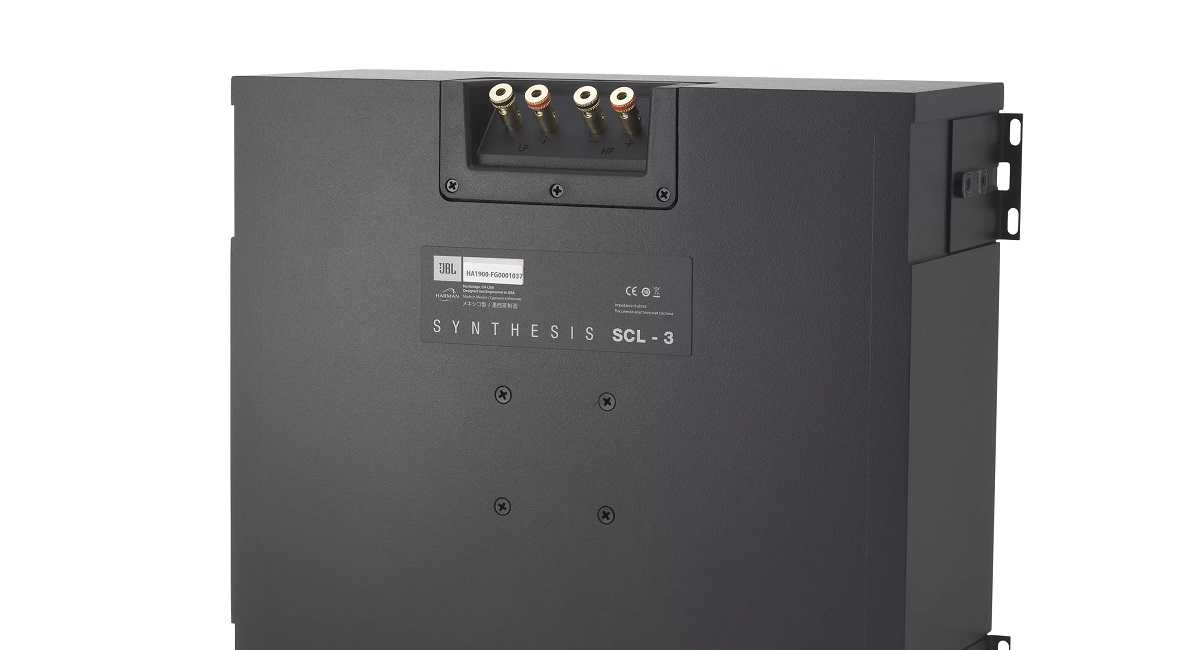

| Inputs | Dual Gold-plated Five-way Binding Posts |
| Dimensions (H x W x D) | 16.46" x 16.46" x 6.01" (418mm x 418mm x 153mm) |
| Weight | 24.3 lb (11.02 kg) |
| Finishes | Matte Black |
