Goldmund Mimesis 37S NextGen is a high-end analog stereo preamplifier. Its ability to reduce noise and distortion using multiple parallel preamplifier stages is purely incredible. A Full Dual-Mono construction with processor-driven linked attenuators, the Mimesis 37S NextGen uses a separate power supply unit for optimum noise reduction and 2 successive stages of power regulation with 4 separate circuits.

Read More

Đại lý bán Mua ngay

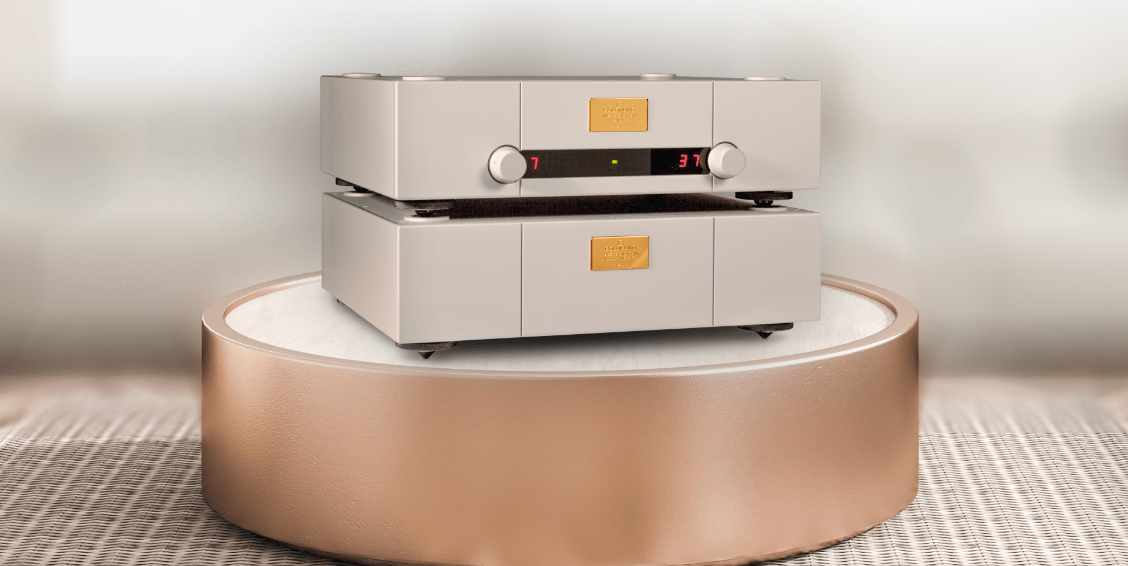

MIMESIS 37S NEXTGEN

STEREO PREAMPLIFICATION

Goldmund Mimesis 37S NextGen is a high-end analog stereo preamplifier. Its ability to reduce noise and distortion using multiple parallel preamplifier stages is purely incredible. A Full Dual-Mono construction with processor-driven linked attenuators, the Mimesis 37S NextGen uses a separate power supply unit for optimum noise reduction and 2 successive stages of power regulation with 4 separate circuits.


AUDIO CIRCUIT QUALITY

The Mimesis 37S NextGen is delivered with 7 inputs – 5 unbalanced and 2 balanced analog inputs – and 3 outputs – 1 unbalanced tape loop and 1 balanced and 1 unbalanced analog output per channel. It is also protected against ground loops and AC line drops or interruption will trigger and automatic muting. The Mimesis 37S NextGen is a reference in analog preamplification and will remain without equivalent in audio circuit quality and sound for the years to come.

 Specifications

INPUTS

Input impedance: 39 kOhms.

Maximum input level (balanced): 9.6 Vrms.

Maximum input level (unbalanced): 4.8 Vrms.

OUTPUTS

Output impedance: 50 Ohms.

Maximum output level (balanced): 19.2 Vrms.

Maximum output level (unbalanced): 9.6 Vrms.

FREQUENCY RESPONSE

These values for any level to maximum output level.

+/- 0 dB, 20 – 20 kHz.

+/- 3 dB, 0.2 – 900 kHz.

GROUP DELAY

Propagation delay

SPEED

Slew rate of the amplification stages: 200 V/us.

Rise time: < 400 ns.

CROSSTALK

Separation: > 105 dB between channels (20 Hz – 20 kHz).

DISTORTION

With 1 Vrms output level, 80 KHz measurement bandwidth, 600 ohms termination impedance.

THD unbalanced input to unbalanced output: 0.002 % flat with frequency.

THD balanced input to balanced out: 0.001 % flat with frequency.

IMD unbalanced input to unbalanced output: 0.002 %.

IMD balanced input to balanced out: 0.001 %.

NOISE

Signal-to-noise ratio on line input: > 120 dB (0.01 Hz – 10 Mhz).

Weighted ASA A: > 130 dB.

OPERATING TEMPERATURE

Room temperature: -30 to +40 degrees Celsius.

Internal temperature: +45 to +70 degrees Celsius.

POWER

Nominal line voltage: 115 or 230 V.

Input voltage range: +/-15 %.

Maximum power consumption: 70 W.

GROUNDING

Separated ground and earth signal.

SAFETY FEATURES

Automatic switching to MUTING if the AC line drops or is interrupted.

Automatic protection against tape loops.

FRONT PANEL

VOLUME control.

BALANCE control.

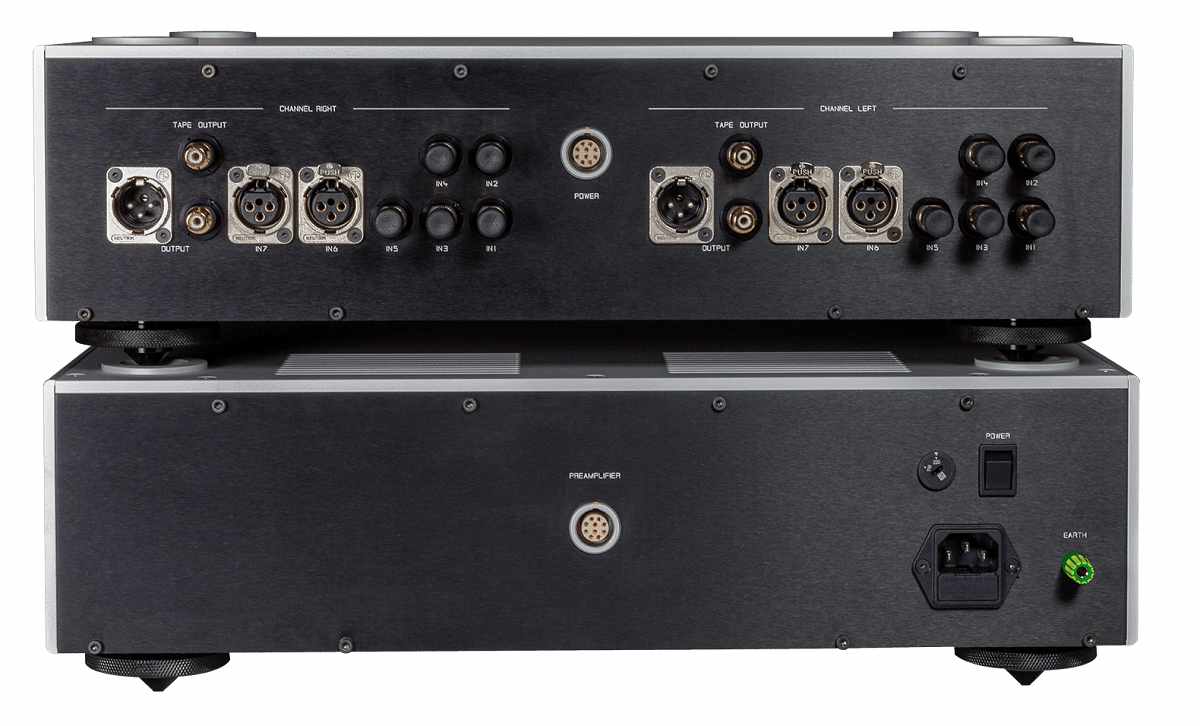

REAR PANEL

Power connector.

5x pairs of RCA input connectors (right & left).

2x pairs of XLR input connectors (right & left).

1x pair of RCA output connectors (right & left).

1x pair of RCA output connectors (right & left).

1x pair of XLR output connectors (right & left).

1x pair of RCA Tape output connectors (right & left).

POWER SUPPLY CONTROLS

Power cord socket (3 lugs).

Main fuse (2.5 A slow-blow).

Voltage selector 115/230 V.

Earthing post (yellow-green).

SIZE & WEIGHT

PREAMPLIFIER:

44 W x 13.5 H x 40 D (cm), without power cord.

9 kg.

POWER SUPPLY:

44 W x 13.5 H x 38.5 D (cm), without power cord.

12 kg.
