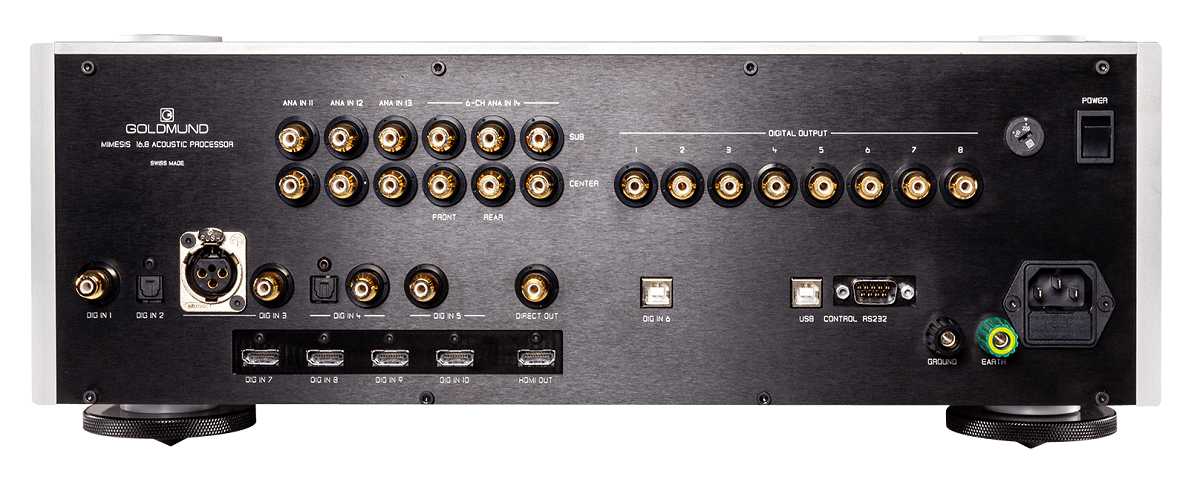

INPUTS

10 digital inputs:

In1 RCA S/PDIF.

In2 Toslink optical.

In3 RCA S/PDIF / XLR aes-ebu.

In4 Toslink optical / RCA S/PDIF.

In5 RCA S/PDIF.

In6 USB AUDIO (up to 96kHz / 24bit PCM stereo only).

In7 to In10 HDMI input.

USB CONTROL, used for configuration.

RS232, external control system.

Any inputs from 1 to 6 and 7-10 can receive multi-channel encoded signal and audio signal up to 96kHz.

4 analog inputs:

In11 & In12 RCA 2-channel.

In13 RCA 2-channel to Direct Out.

In14 RCA 6-channel.

DIGITAL OUTPUTS

8 Digital RCA SPDIF outputs with 2 channels for each.

1 HDMI output to connect a video display or a processor.

Front panel and remote-control adjustable level control with more than 65dB range and 0.05dB accuracy in the 0 to -34dB range.

REMOTE CONTROL

RC5 Standard remote system is compatible with standard programmable remote control transmitter (codes available on request).

Volume and balanced control.

Selection of the source.

Remote muting and standby.

Balance and Pink noise.

Output Format selection.

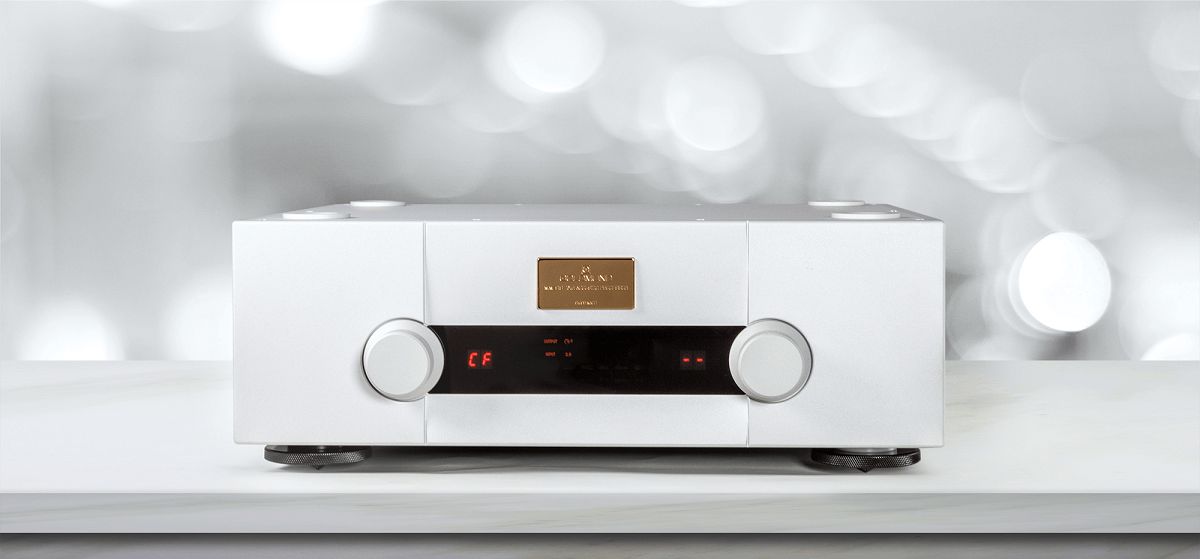

FRONT PANEL CONTROL

2 knobs for input selection and volume control.

Numeric displays for input selection.

Numeric displays for volume.

Direct Led format, balance and function display.

POWER

Nominal line voltage: 117V or 234 V (switchable).

Input voltage range: +/- 15 %.

Maximum power consumption: 50 W.

Use a 1,6 A delayed fuse.

SIZE & WEIGHT

44 W x 40 D x 16.5 H (cm).

24 kg.
