Ultima2 Loudspeaker Series, 3-Way Floorstanding Loudspeaker Similar to the Salon2 in a more discreet package, the Ultima Studio2 features all of Revel’s latest technological innovations and enhancements with an elegant appearance and unparalleled sound quality.
Studio2

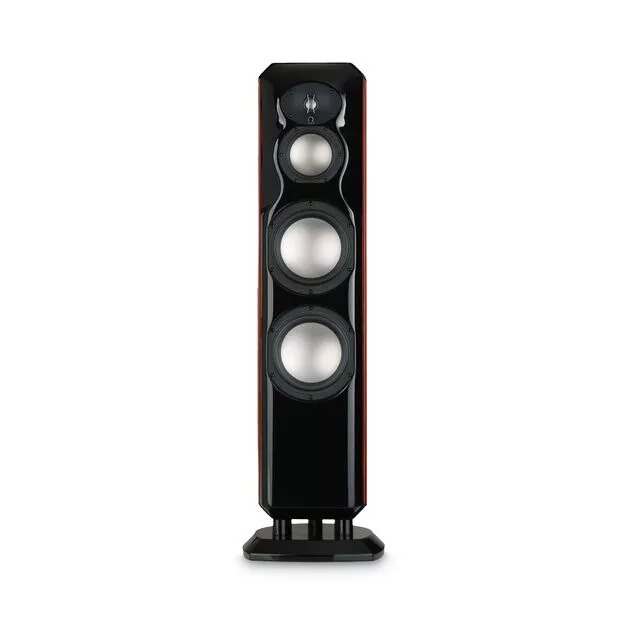

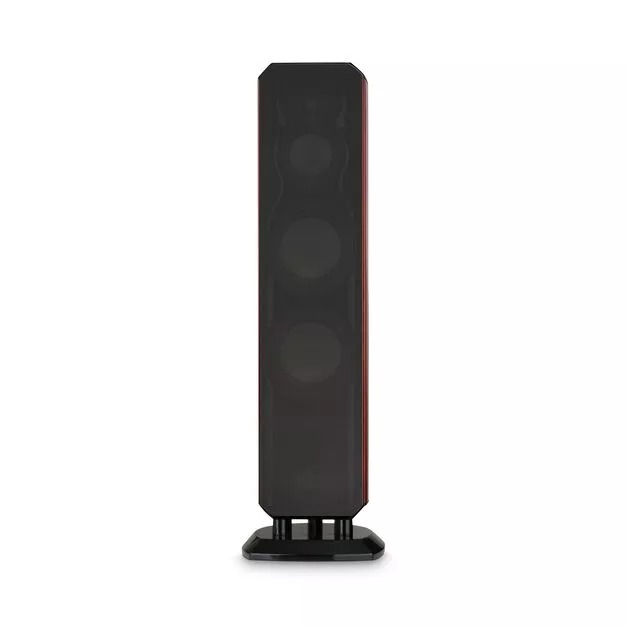

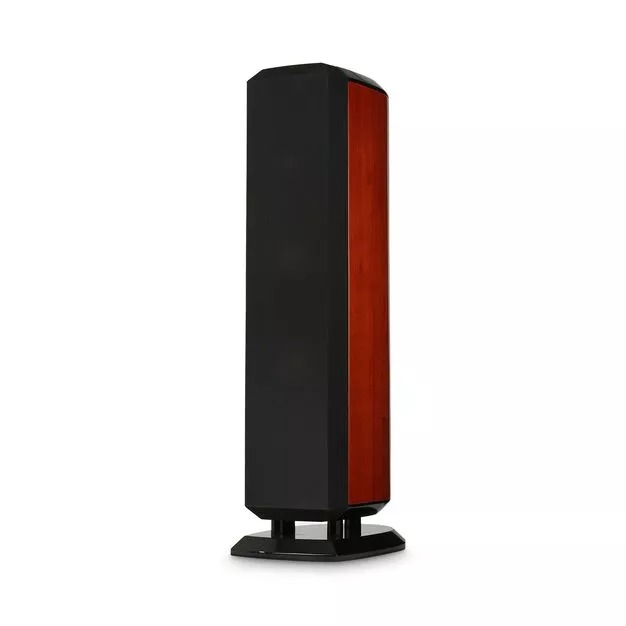

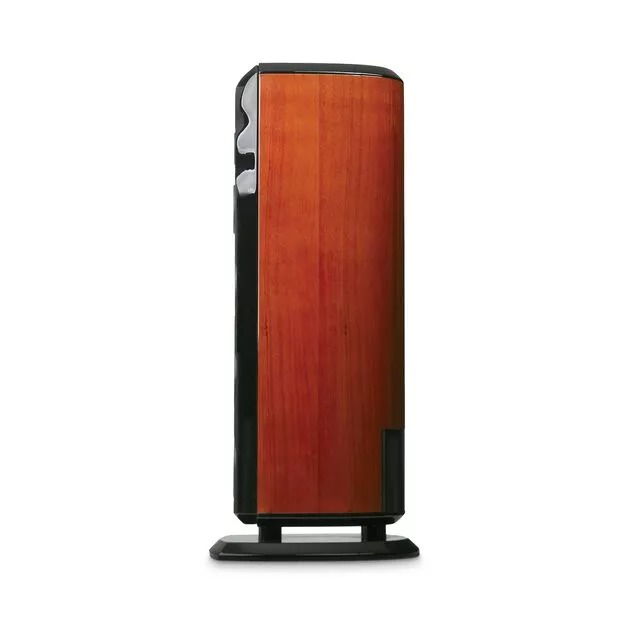

The Revel Ultima Studio2 is a floorstanding design featuring all of Revel’s latest technological innovations and enhancements. The Studio2 adopts a similar approach to the Salon2 but in a more discreet physical package. A three-way system utilizing two 8-inch woofers, a 5¼-inch midrange and a 1-inch tweeter, the Studio2 carries the graceful look of the new Ultima series. A somewhat smaller size makes it ideal where space is limited or for applications that don't require the massive output and bottom-octave footprint of the Salon2, but uncompromised performance is required.
Studio2 Highlights
-
Rounded baffles and enclosures virtually eliminate diffraction
-
Woofer and midrange trandsducers feature inverted-dome designs for superior piston like behavior
-
Tweeters use acoustically optimized waveguides for seamless transitions between the tweeter and midrange
-
Pure-beryllium dome tweeters exhibit the optimal balance of high-power handling, low distortion and compression
-
Separate filter boards for each frequency range
Specifications
High-Frequency Driver Components | 1" (2.5 cm) beryllium tweeter |
Mid-Frequency Driver Components | 5 ¼" (13.3 cm) titanium cone midrange |
Low-Frequency Driver Components | Two 8" (20 cm) titanium cone woofers |
Frequency Response | -3 dB from 32 Hz to 45 kHz ±0.5 dB from 31 Hz to 18 kHz ±1.0 dB from 33 Hz to 20 kHz |
Crossover Frequencies | Three-way, high-order acoustic response @ 230 Hz and 2 kHz |
Low Frequency Extension | -10 dB at 21 Hz -6 dB at 25 Hz -3 dB at 32 Hz |
Nominal Impedance | 6 ohms (nominal) 3.7 ohms (minimum @ 90 Hz) |
Sensitivity | 87.7 dB SPL with 2.83 V @ 1m (4 pi anechoic) |
Finishes | Piano black or mahogany finish |
Height | 46.3" (117.6 cm) |
Width | 13.8" (35.1 cm) |
Depth | 20.5" (52.1 cm) |
Weight | 112 lb (50.9 kg) Shipping weight 140 lb (63.5 kg) |
