Mark Levinson
Lượt xem: 3276

Trong kho : Còn hàng

Bảo hành : 12 tháng

Network Streaming SACD Player and DAC. The Nº5101 combines decades of superlative audio engineering with the latest acoustic and technological advancements to deliver unmatched performance and value. With a bold new industrial design, the Nº5101 delivers luxurious fidelity with premium features and flexibility.

Read More

No 5101

Experience the passion of the performance as you unlock the full potential of your digital music library. With a bold industrial design, the № 5101 combines innovative audio technology with unmatched performance and versatility. This 3-in-1 audio player combines a Super Audio CD player, high-resolution network streaming capability and Precision Link II Digital-to-Analog Converter (DAC) to bring you incredibly realistic sound reproduction.

The Flexibility of 3-in-1

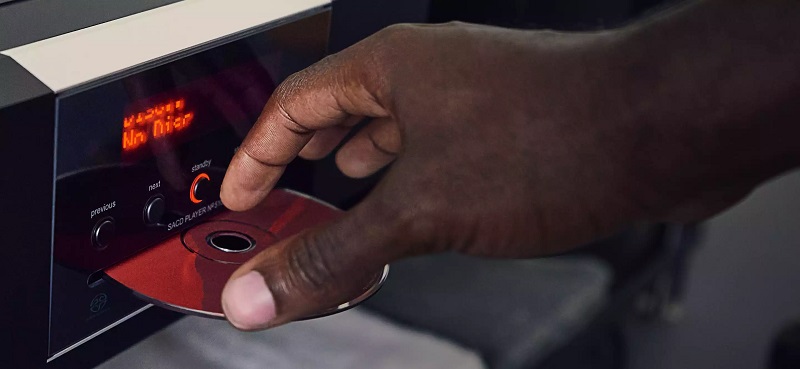

The № 5101 includes a slot-loading SACD player, network streamer and Digital-to-Analog Converter in one beautifully designed component. This means that the № 5101 plays all disc formats, supports high-resolution streaming from major streaming platforms and plays files from storage drives including USB.

Dynamic Digital Audio

To bring you a high-quality, vibrant digital music experience, the № 5101 includes a custom-made Precision Link II Digital-to-Analog Converter (DAC). This premium component is key to any high-end audio system — and reveals intricate details in your music that you’ve never heard before.

Pure Path Circuit Design

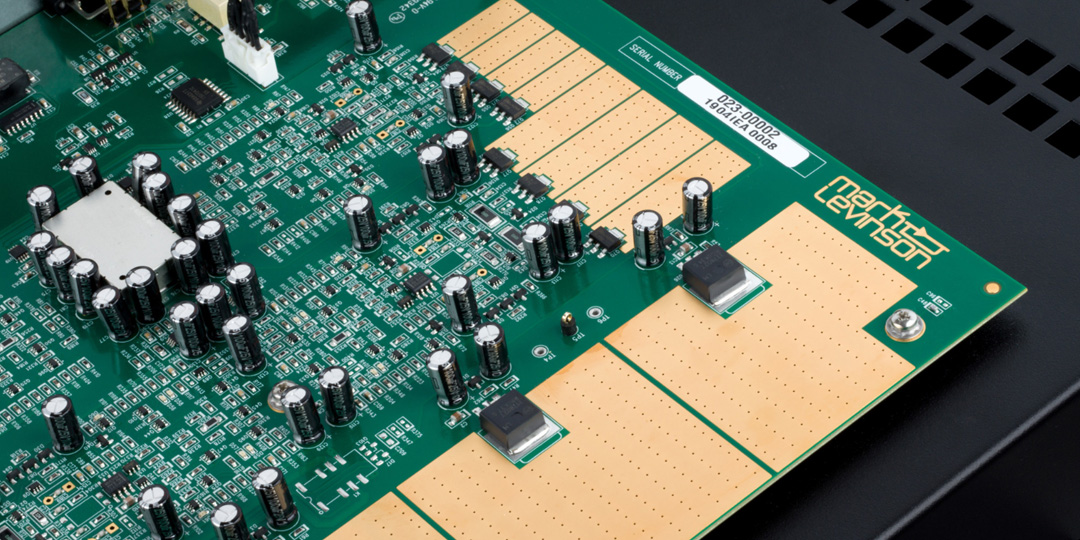

Our proprietary approach to circuit design delivers uncompromising musical purity and an engaging listening experience. By using discrete components carefully selected for their precise function, the № 5101 delivers unmatched sound quality that captures the nuances of every note.





The №5101 combines decades of superlative audio engineering with the latest technological advancements to deliver unmatched performance and value.

With a bold new industrial design, the №5101 delivers luxurious fidelity with premium features and flexibility. Combining audiophile physical compact disc formats with modern high-resolution network streaming capabilities over Ethernet and WiFi, a standalone PrecisionLink II DAC, and expansive control features, the №5101 is a unique 3-in-1 solution.

DIGITAL AUDIO

The №5101 delivers outstanding digital audio capability with the Mark Levinson PrecisionLink II DAC. Five individual, ultra-low-noise voltage regulators, power an ESS Sabre 32-bit PRO series D/A converter to unleash maximum performance. Proprietary jitter reduction circuitry and user-selectable digital filters—seven choices for PCM and four for DSD along with ample regulated power, enables the best possible digital reproduction.

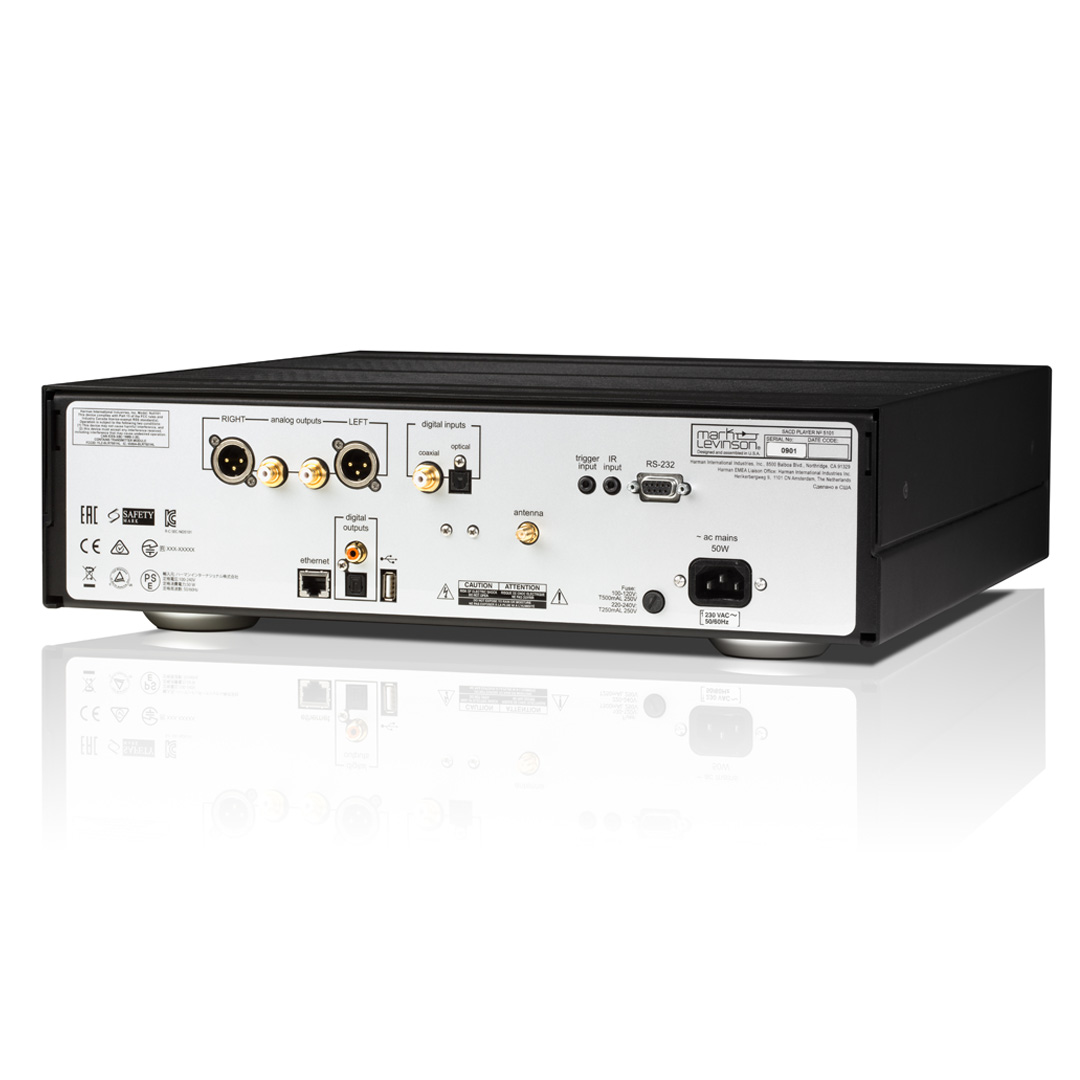

The №5101 offers a variety of digital inputs, including one coaxial and one optical S/PDIF; one USB-A for playback from a thumb drive or hard drive, a CD/SACD transport and network streaming via Wi-Fi or Ethernet.

FLAC, WAV, AIFF, OGG, MP3, AAC and WMA, audio formats, and SACD, CD-A, CD-R, and CD-RW disc formats are supported.

ANALOG OUTPUT STAGE

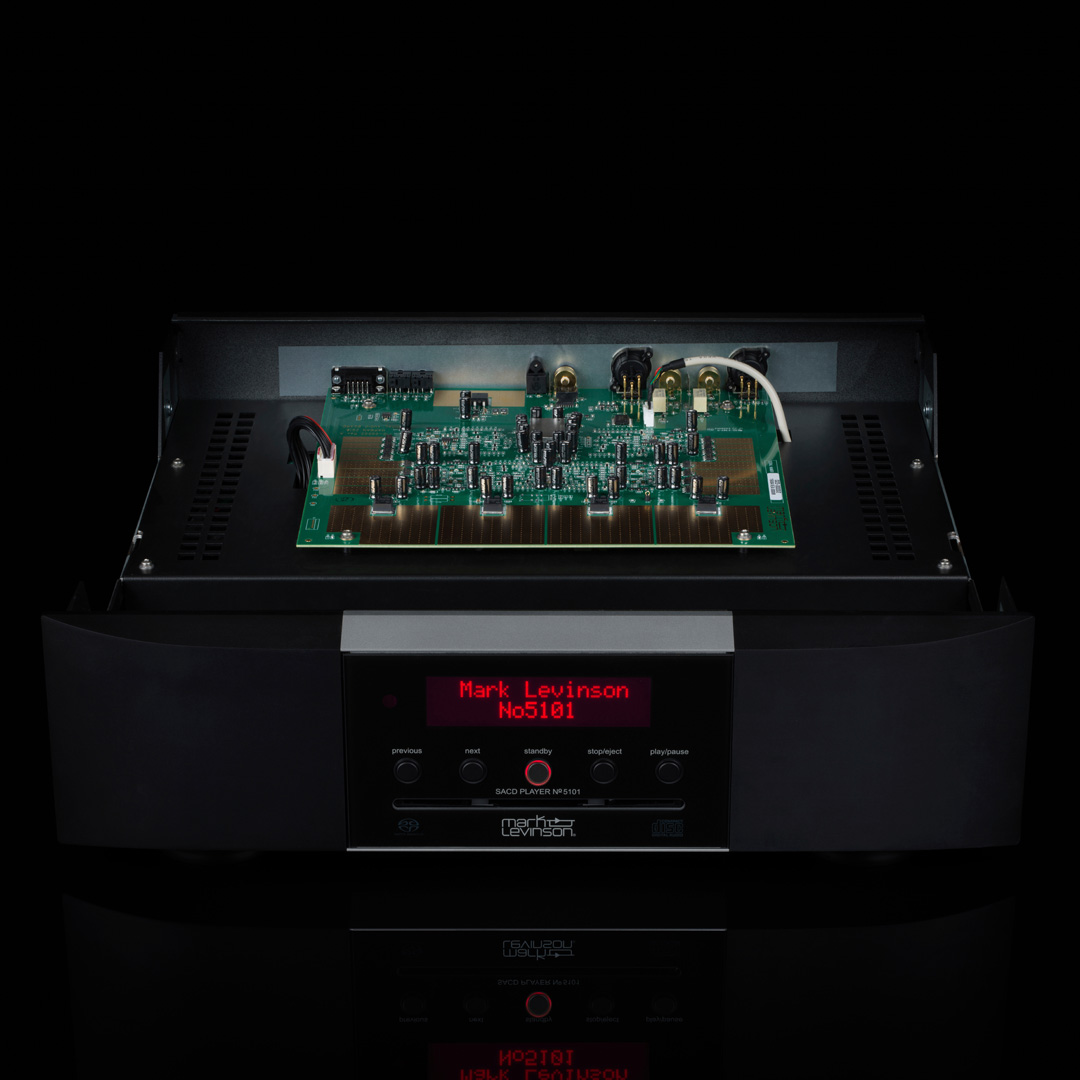

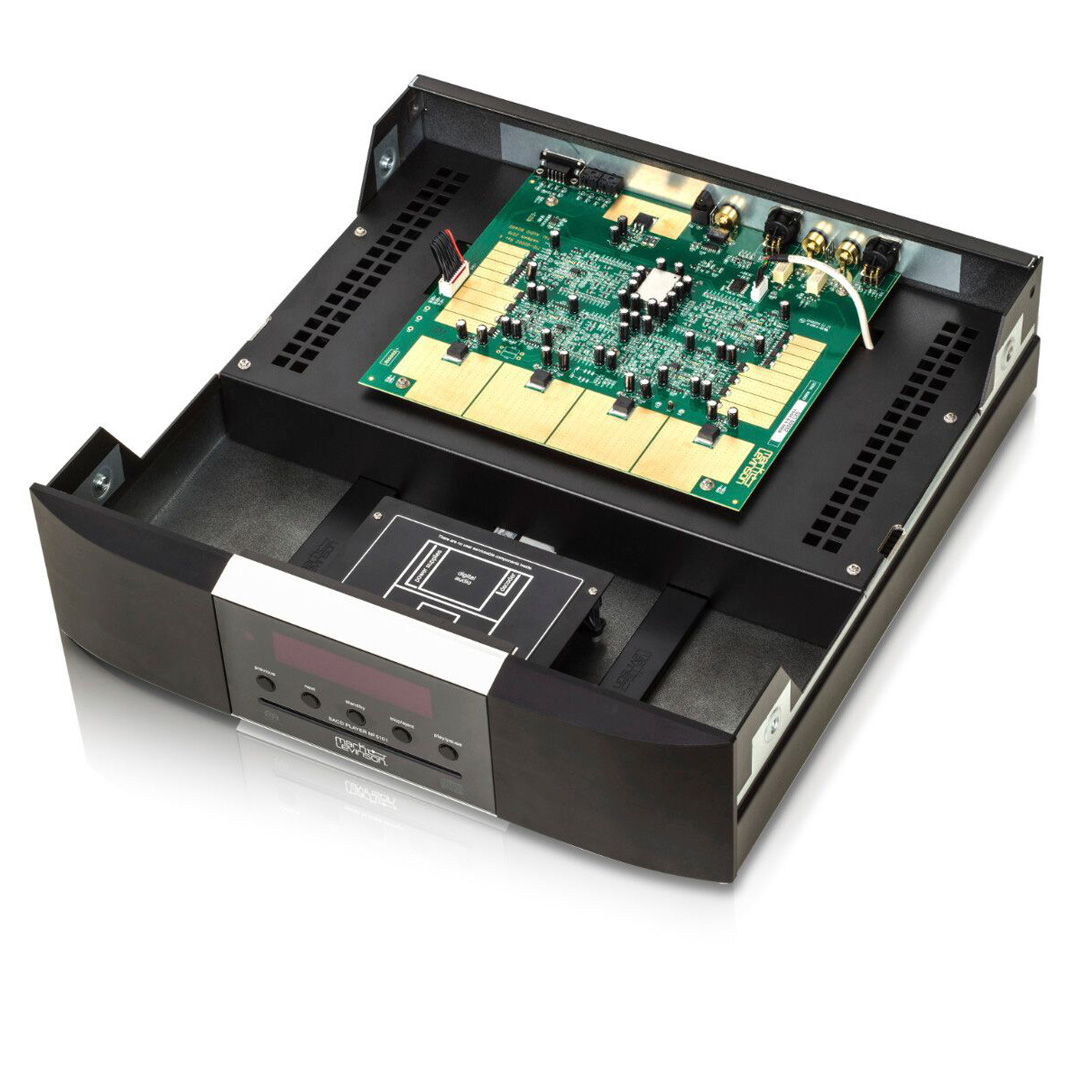

The №5101 utilizes proprietary Mark Levinson PurePath circuitry. Fully discrete, direct-coupled, dual-monaural line-level output circuitry delivers exceptional reproduction of the analog signal to the balanced XLR stereo outputs as well as the single-ended RCA connectors. The linear power supply and toroidal transformer with separate voltage regulators for the left and right channels provide a quiet, stable source of power for critical analog circuitry.

CONTROL

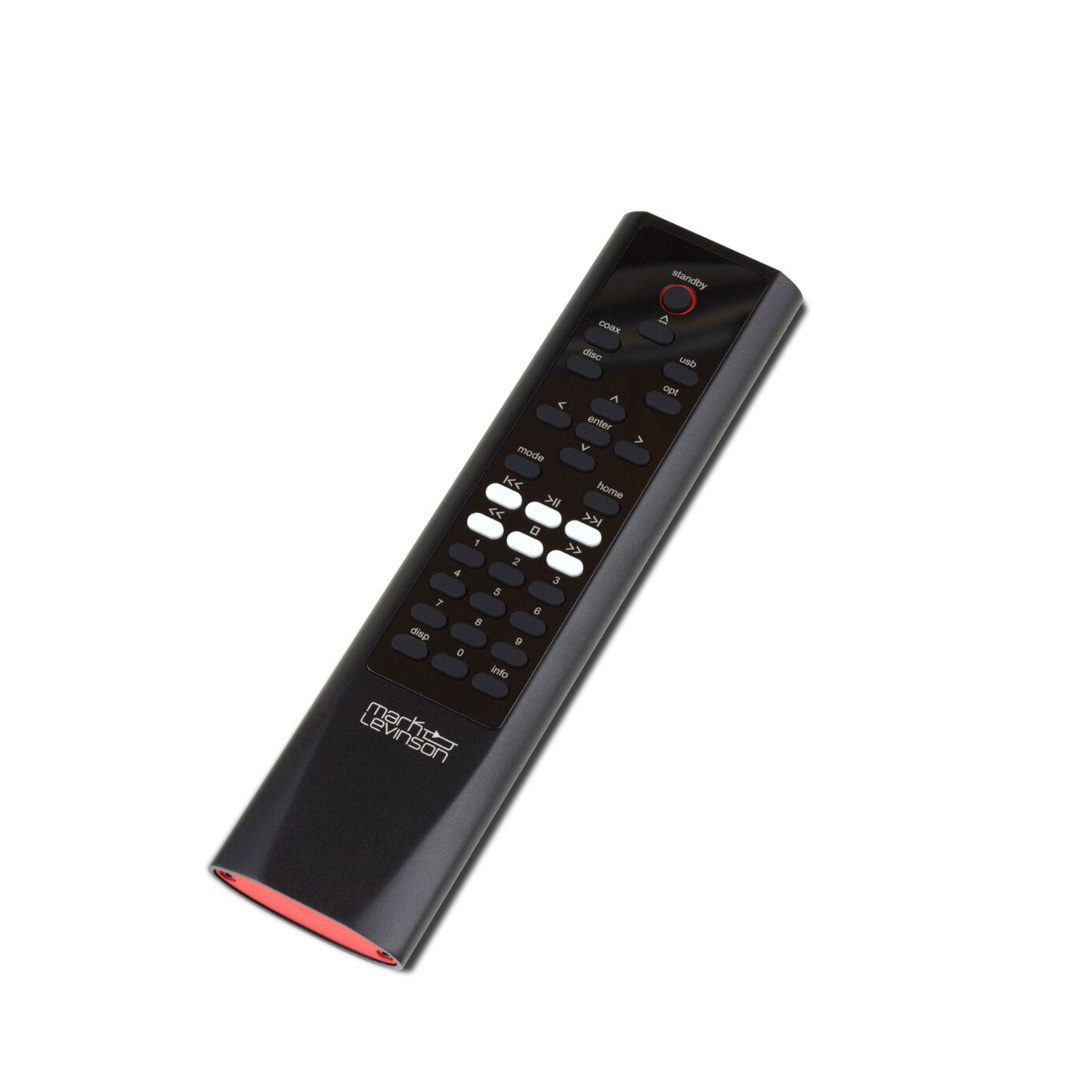

System integration and communication ports include IP (Ethernet), RS-232, IR input, and 12V trigger input. A newly designed, aluminum IR remote is included with the №5101. In addition, the Mark Levinson 5kontrol mobile application enables control from an available Android and Ios device, and drivers are available for major control systems.

INDUSTRIAL DESIGN

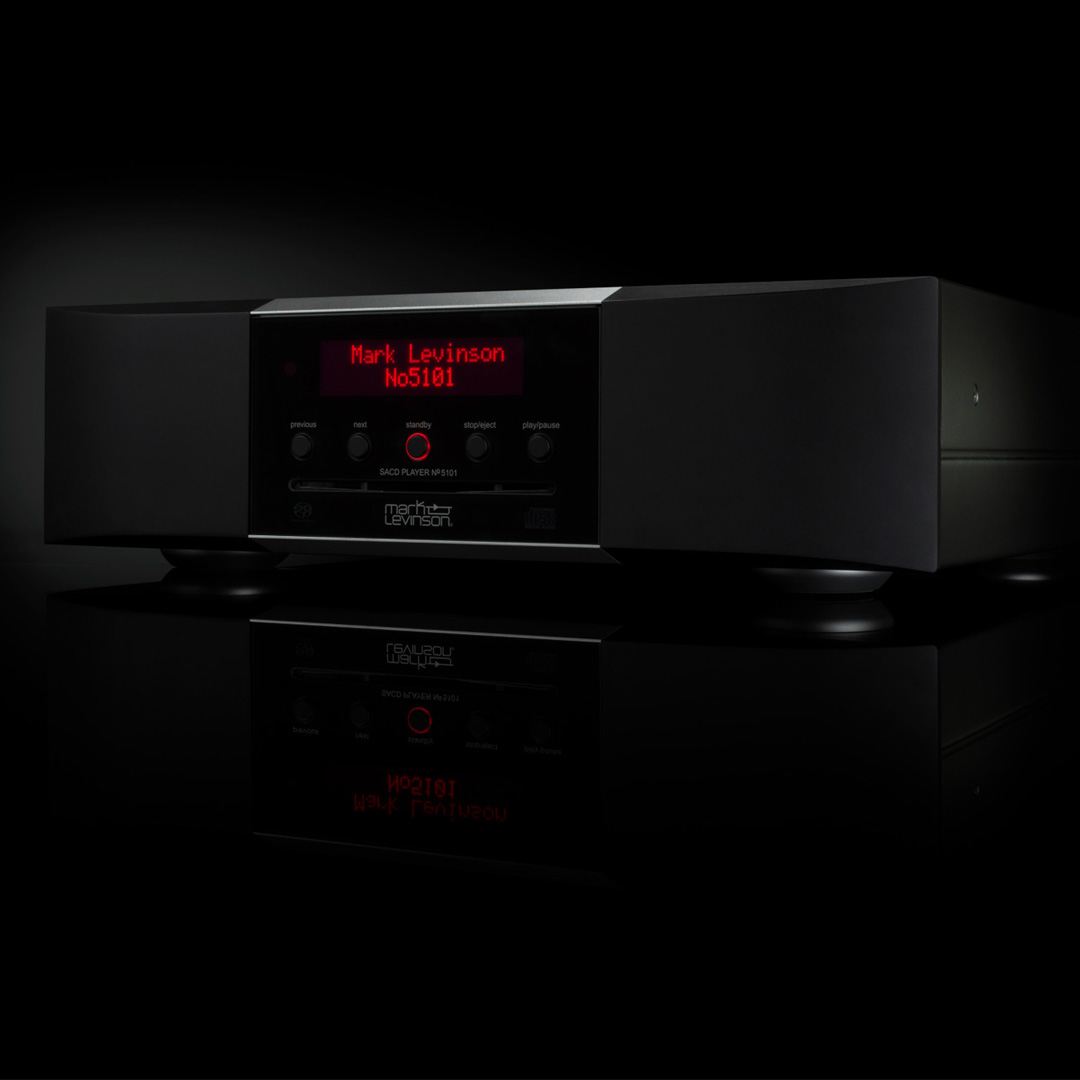

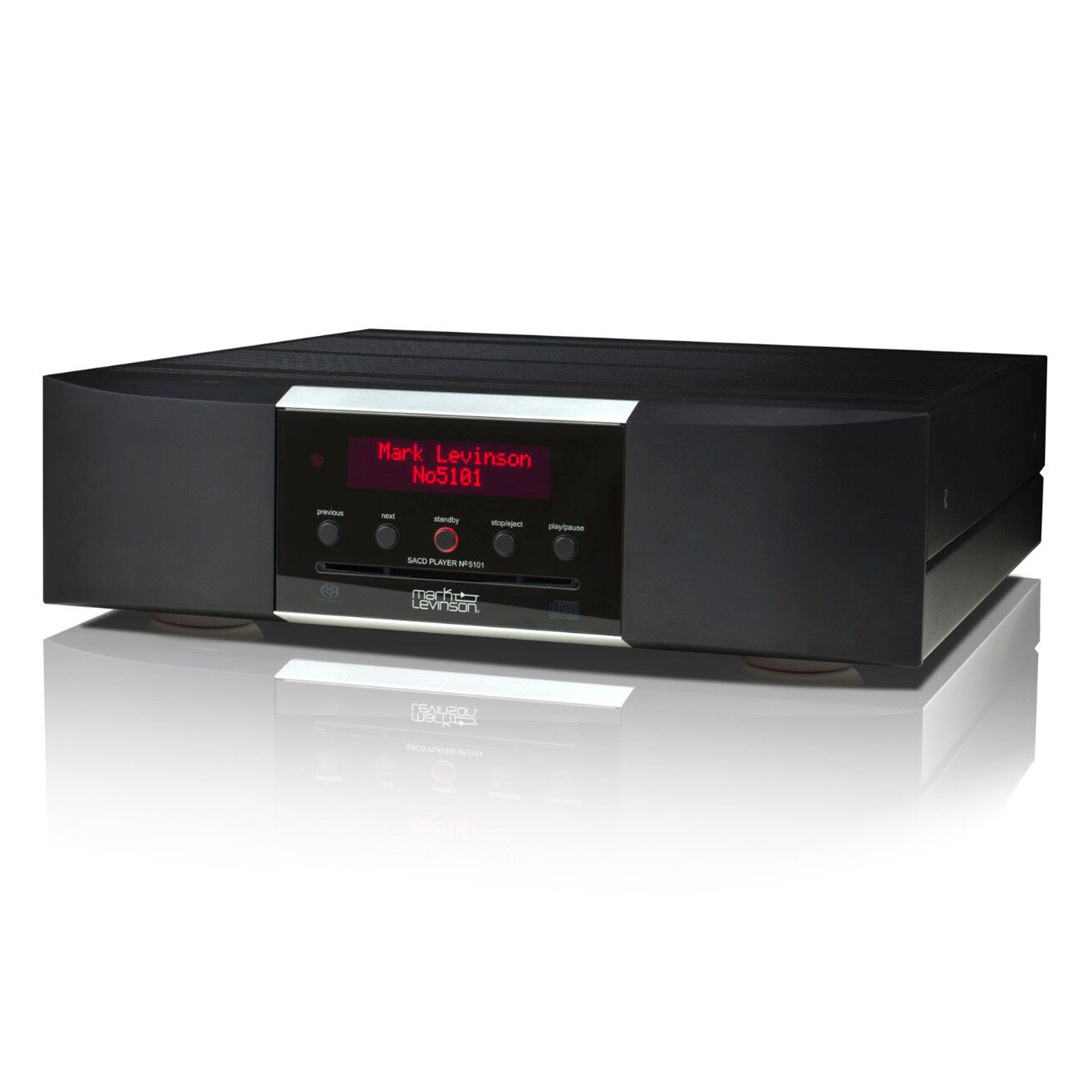

Robust materials, lavish finishes, and bold geometry are hallmark attributes of Mark Levinson designs. The one-inch thick, bead-blasted, black-anodized, solid aluminum front panels are machined and contoured to flow seamlessly into the sleek glass display, which itself is recessed into a bead-blasted, clear-anodized aluminum bezel. With debossed top cover vents, screen-printed logo, and machined aluminum buttons, no detail has been overlooked.

The Mark Levinson №5101 is proudly designed, engineered, and precision-crafted in the USA.

 All production №5101 units will undergo 100% functional testing prior to shipment, and the following features and electrical measurements will be verified on all units.



Total harmonic <0.004%, 20Hz to 20kHz, single-ended, distortion + noise:
3V RMS output (44.1kHz/16 bit signal)
<0.003%, 20Hz to 20kHz, balanced, 6V RMS output (44.1kHz/16 bit signal)
<0.003%, 20Hz to 20kHz, single-ended, 3V RMS output (192kHz/24 bit signal)
<0.002%, 20Hz to 20kHz, balanced, 6V RMS output (192kHz/24 bit signal)
Signal-to-noise ratio >94dB single-ended (wideband,
unweighted, referred to 3V RMS output)
>106dB balanced (wideband, unweighted, referred to 6V RMS output)
Power consumptio Standby  <0.4W
Power on 32W
Digital audio

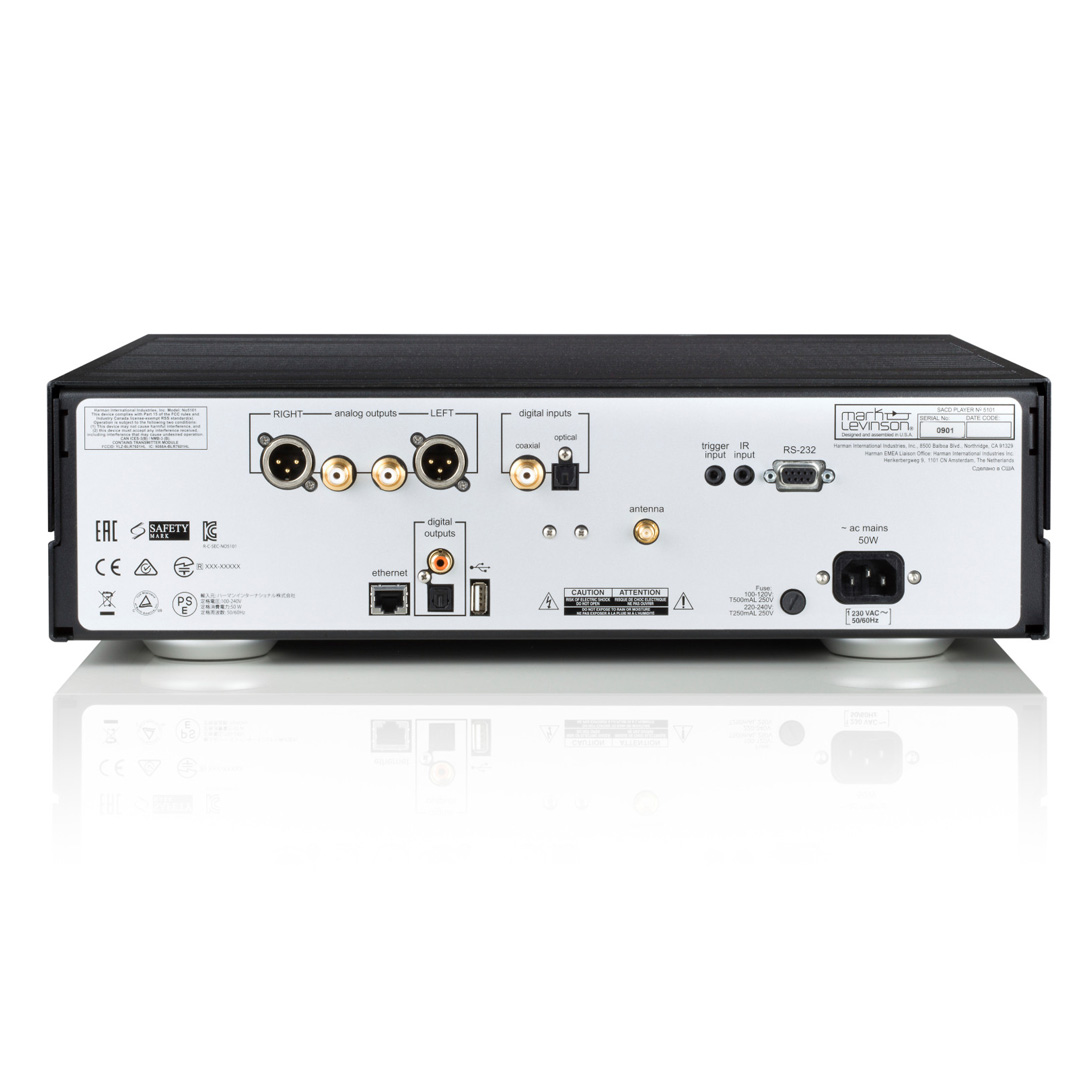

Connectors 1 optical digital input (Toslink)
1 coaxial digital S/PDIF input (RCA) 1 optical digital output (Toslink)
1 coaxial digital S/PDIF output (RCA)
Output connectors 1 pair single-ended line-level outputs (RCA)
1 pair balanced line-level outputs (XLR)
Control and network
Connectors 1 RS-232 port (DB9 connector) 1 IR input
(⅛"/3.5mm phone jack)
1 12V DC trigger input (⅛"/3.5mm phone jack) 1 Ethernet port
(RJ-45 connector)
1 USB-A connector
1 Wi-Fi antenna connector (SMA receptacle)
