Goldmund
Lượt xem: 785

Trong kho : Còn hàng

Bảo hành : 12 tháng

Mimesis PH 3.8 NextGen was widely celebrated for being extremely clean, detailed, and lively. With the new mechanical design, the new Mimesis PH3.8 NextGen has gone beyond extreme to reach perfection in sound performance.

Read More

Đại lý bán Mua ngay

Mimesis PH 3.8 NextGen

Phono Preamplifier

Based on the solid Goldmund expertise on time correction, Mimesis PH 3.8 NextGen was widely celebrated for being extremely clean, detailed, and lively. With the new mechanical design, the new Mimesis PH3.8 NextGen has gone beyond extreme to reach perfection in sound performance.

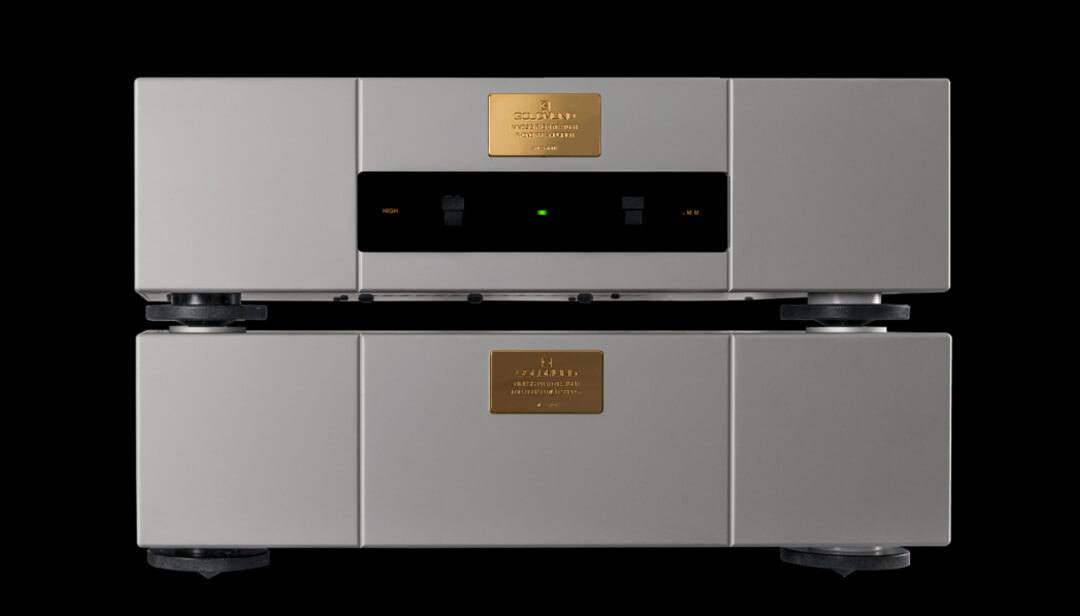

Mimesis PH 3.8 NextGen front

Thanks to this exceptional phono amplifier, the most exacting turntable owners can now fully enjoy the best of their vintage analog sonic source. Its optimal built-in playback equalization works to reproduce pleasing realistic music. Compatible with both moving magnet cartridge (MM) and coil cartridge (MC), its versatility makes it the best choice for any vinyl hi-fi system.

Mimesis PH 3.8 NextGen turnable

GAIN MM INPUT 43 dB (low) and 50 dB (high).
GAIN MC INPUT 63 dB (low) and 70 dB (high).
RIAA CURVE – 0.03 dB / + 0.06 dB max derivation from RIAA curve.
GAIN STAGE RESPONSE – 3 dB 0.12 Hz – 760 kHz at 70 dB gain (without RIAA correction).
SLEW RATE 80 V/us."}">> 80 V/us.
RISE TIME < 400 ns.
DISTORTION < 0.007 % (20 Hz-20 kHz at 4 Vrms output).
OUTPUT IMPEDANCE 50 Ohms.
MAX OUTPUT LEVEL 32 Vpp Power.
SIZE PREAMPLIFIER & POWER SUPPLY 44 W x 38.6 D x 13.2 H (cm).
WEIGHT PREAMPLIFIER 10 kg
  POWER SUPPLY 12 kg
WARRANTY 3 years, parts and labor.
