IC15

Due to its unique three-way design and angled baffles the IC15 is equally adept as a left/center/right or surround speaker. When aimed directly at the listener the IC15 provides accurate detail, unsurpassed dynamics and life-like imaging previously only found on in-room or in-wall loudspeakers. When used as a surround the IC15 can be angled to provide accurate rear channel performance for even the most demanding concert and movie material. Based on its installed angle, the IC15 can be used as a monopole speaker or a diffusive speaker when a larger coverage area is required.

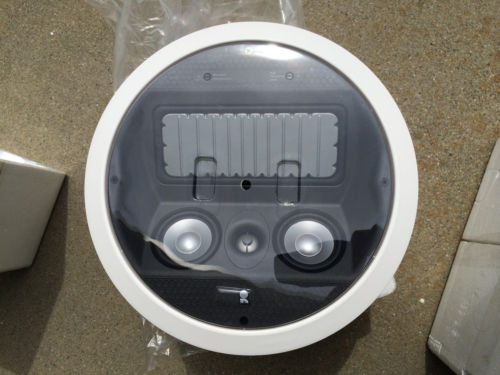

We hear this all too often when designing systems. Meet the Revel Performa IC15 3-way in-ceiling L/C/R and surround loudspeaker. The IC15 has been specifically designed to deliver unsurpassed home theater sound reproduction from an in-ceiling speaker that does not intrude on your room or its décor.

The Revel-IC15 is truly one of the most flexible architectural speakers available.

• “In-room” left/center/right or surround loudspeaker performance from a fully-flush in-ceiling loudspeaker
• Unique rectangular flat-panel woofer with MCC (Micro-Ceramic Composite) diaphragm equivalent to a 6½-inch woofer

• Dual low-coloration 3-inch midranges with MCC diaphragms

• Low-distortion 1-inch tweeter with pure titanium diaphragm

• High-order (24dB/octave) crossover network for lowest coloration and high output capability for the most dynamic film soundtracks

• High-frequency and boundary compensation adjustments optimise performance in a wide variety of acoustic applications

• Low frequency acoustic response tailored for optimum blending with a subwoofer at the industry-standard 80Hz.
