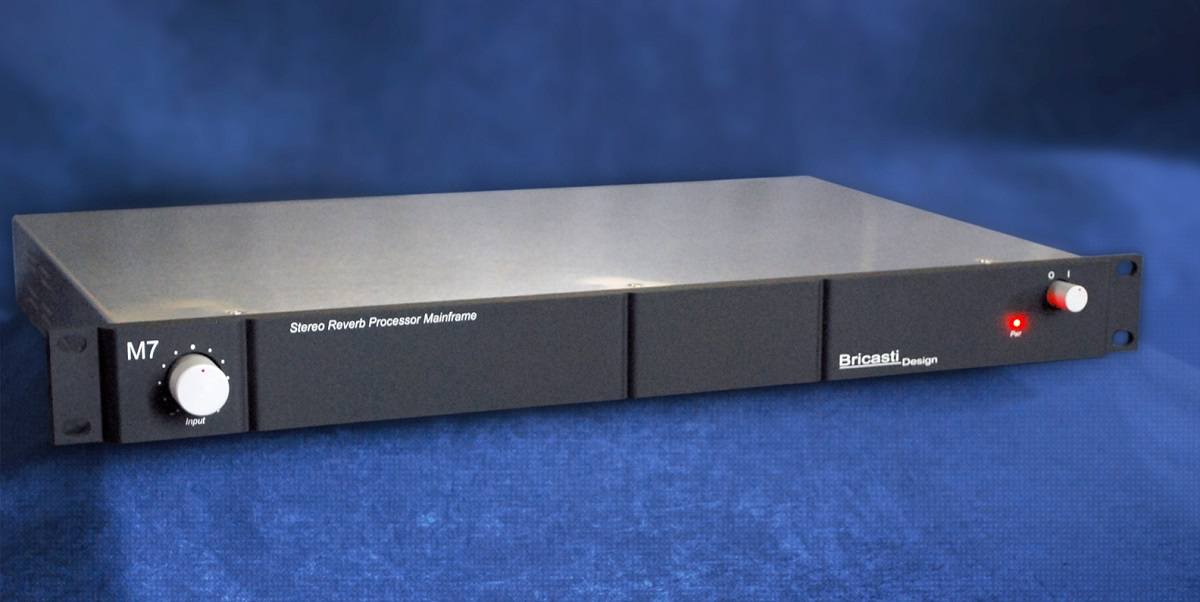

The new Bricasti Design M7M Reverb Processor Mainframe is an exact duplicate of the M7 Stereo Reverb Processor with reduced front panel controls, and is intended to be used in conjunction with the M10 Remote Console. As it is necessary to have an M10 for control, the M7M is made available bundled together with the M10 in several different configurations, with one or more M7Ms, and is offered as a stand alone product for customers wishing to add more channels of Bricasti processing to their M10 based setup without duplicating unnecessary user interface controls.

Read More

Đại lý bán Mua ngay

M7M

Model 7 Stereo Reverb Processor

  • More than 200 Unique reverb presents
  • Revolutionary new reverb algorithm True Stereo Reverb Process
  • Classic and new Presents; Halls, Plates, Chambers, Ambient Spaces
  • 12 Parametric Program Parameters
  • 100 User Registers
  • 4 Front panel "Favorites" for quick saves and compares

Hardware Design Features

  • Dual Dedicated Power Supplies
  • Custom design toroidal transformer linear supply for analog
  • High performance switching supply for digital
  • Separate Digital and Analog modules
  • non corrosive Stainless Steel chassis and top cover
  • Milled anodized aluminum front panel, knobs and button caps
  • Positive feel 2 db stepped analog input level control
  • MIDI I/O
  • Hand Crafted in the USA

Model 7 Mainframe Stereo Reverb Processor

The new Bricasti Design M7M Reverb Processor Mainframe is an exact duplicate of the M7 Stereo Reverb Processor with reduced front panel controls, and is intended to be used in conjunction with the M10 Remote Console.



As it is necessary to have an M10 for control, the M7M is made available bundled together with the M10 in several different configurations, with one or more M7Ms, and is offered as a stand alone product for customers wishing to add more channels of Bricasti processing to their M10 based setup without duplicating unnecessary user interface controls.

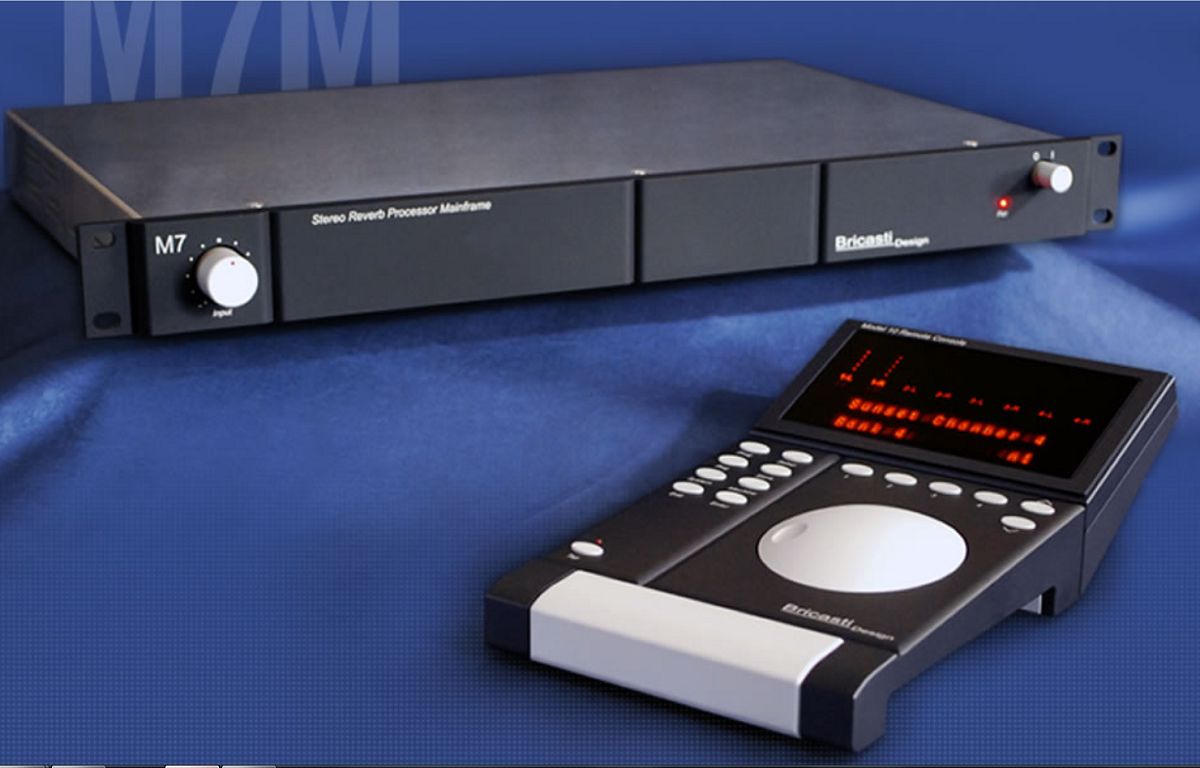

Pictured is our System 1, the M10 with one M7M that can be used as a stand alone product or added to your M7, adding more processing and remote capabilities to your studio.

Analog Section Design Features and Performance

< 20 Picoseconds Jitter

Input level adjustable in 2 dB steps

Balanced XLR analog I/O

24-bit conversion

Dual D/A

Fully-balanced, DC-coupled analog input and output circuits

Analog Input A/D

Analog Input A/D

Dynamic Range >116 db, A-Weighted

THD+N <.001 %

Frequency Response: 10 Hz - 20 kHz ± < 0.05 dB

CMRR: > 100 dB @ <= 1 kHz

Maximum Input Level: +24 dBu

Minimum Input Level for 0 dBFS: +4 dBu

Analog Output D/A

Analog Output D/A

Analog Output D/A

Dynamic Range: > 116 dB, A-Weighted

THD+N: < 0.001%

Frequency Response: 10 Hz - 20 kHz ± < 0.05 dB

Maximum Output Level: +24 dBu

Digital Section Design Features and Performance

AES 24 Bit Digital I/O

AES single wire 192k supported

Self-clocking to incoming sample rates 44.1k to 192k

 6 State of the art dual core Analog Devices DSPs

Analog Section Design Features and Performance

< 20 Picoseconds Jitter

 Input level adjustable in 2 dB steps

Balanced XLR analog I/O

24-bit conversion
